TMC2660 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC MTR DRV BIPOLAR 3.3-5V 44PQFP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Step Resolution [Min]	Step Resolution [Max]	Output Configuration	Applications	Motor Type - Stepper	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output	Interface	Supplier Device Package	Package / Case	Technology	Supplied Contents	Utilized IC / Part	Contents	Type	Secondary Attributes	Primary Attributes
Analog Devices Inc./Maxim Integrated TMC2660-PA-T	-40 C	125 °C	1	0.00390625	Half Bridge (4)	General Purpose	Bipolar	Surface Mount	30 V	9 V	Driver - Fully Integrated Control and Power Stage	5 V	3.3 V	2.8 A	SPI Step/Direction	44-PQFP (10x10)	44-LQFP	Power MOSFET
Analog Devices Inc./Maxim Integrated TMC2660-PA	-40 C	125 °C	1	0.00390625	Half Bridge (4)	General Purpose	Bipolar	Surface Mount	30 V	9 V	Driver - Fully Integrated Control and Power Stage	5 V	3.3 V	2.8 A	SPI Step/Direction	44-PQFP (10x10)	44-LQFP	Power MOSFET
Analog Devices Inc./Maxim Integrated TMC2660C-PA-T	-40 C	125 °C	1	0.00390625	Half Bridge (4)	General Purpose	Bipolar	Surface Mount	30 V	9 V	Driver - Fully Integrated Control and Power Stage	5 V	3.3 V	2.8 A	SPI Step/Direction	44-PQFP	44-LQFP	Power MOSFET

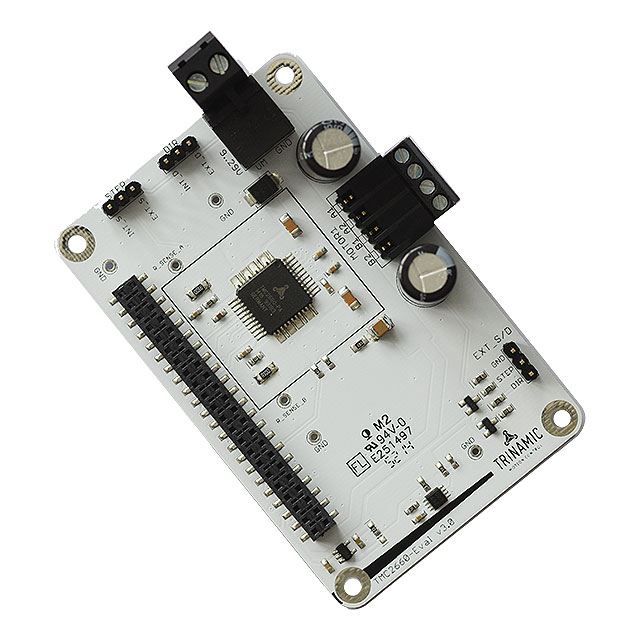

Analog Devices Inc./Maxim Integrated TMC2660-EVAL																			Board(s)	TMC2660	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC2660C-PA	-40 C	125 °C	1	0.00390625	Half Bridge (4)	General Purpose	Bipolar	Surface Mount	30 V	9 V	Driver - Fully Integrated Control and Power Stage	5 V	3.3 V	2.8 A	SPI Step/Direction	44-PQFP	44-LQFP	Power MOSFET

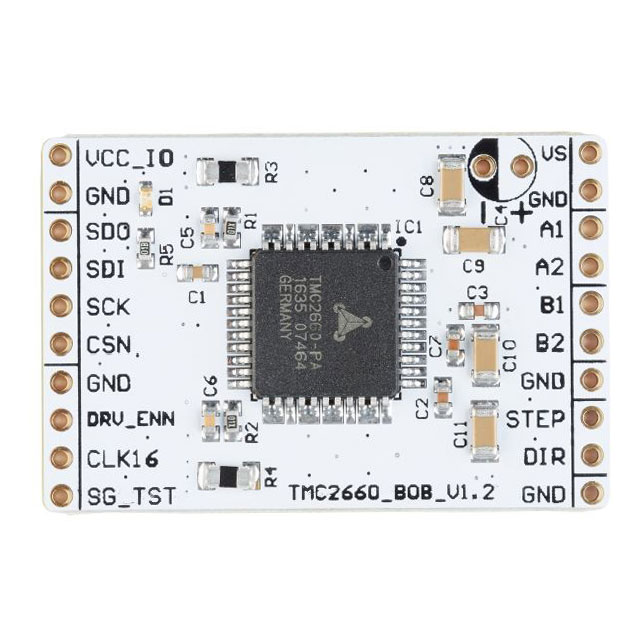

Analog Devices Inc./Maxim Integrated TMC2660-BOB																			Board(s)	TMC2660	Board(s)	Power Management	SPI Interface(s)	Motors (Stepper)
