TMC429 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
TRIPLE STEPPER MOTOR RAMP GENERATOR CONTROLLER WITH SERIAL PERIPHERAL INTERFACES AND STEP/DIRECTION
| Part | Applications | Technology | Motor Type - Stepper | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Mounting Type | Package / Case | Step Resolution [Min] | Step Resolution [Max] | Function | Package / Case [x] | Package / Case [y] | Package / Case [custom] | Package / Case [custom] | Supplied Contents | Type | Utilized IC / Part | Contents | Embedded | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | ||||||||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | CMOS | Bipolar | SPI | -40 °C | 105 °C | SPI Step/Direction | 5 V | 3.3 V | 32-QFN (5x5) | Surface Mount | 32-VFQFN Exposed Pad | 1 | 0.015625 | Controller - Commutation Direction Management | |||||||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | CMOS | Bipolar | SPI | -40 °C | 105 °C | SPI Step/Direction | 5 V | 3.3 V | 16-SSOP | Surface Mount | 16-SSOP | 1 | 0.015625 | Controller - Commutation Direction Management | 0.154 in | 3.9 mm | |||||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | CMOS | Bipolar | SPI | -40 °C | 105 °C | SPI Step/Direction | 5 V | 3.3 V | 24-SOP | Surface Mount | 24-SOIC | 1 | 0.015625 | Controller - Commutation Direction Management | 7.5 mm | 0.295 in | |||||||||

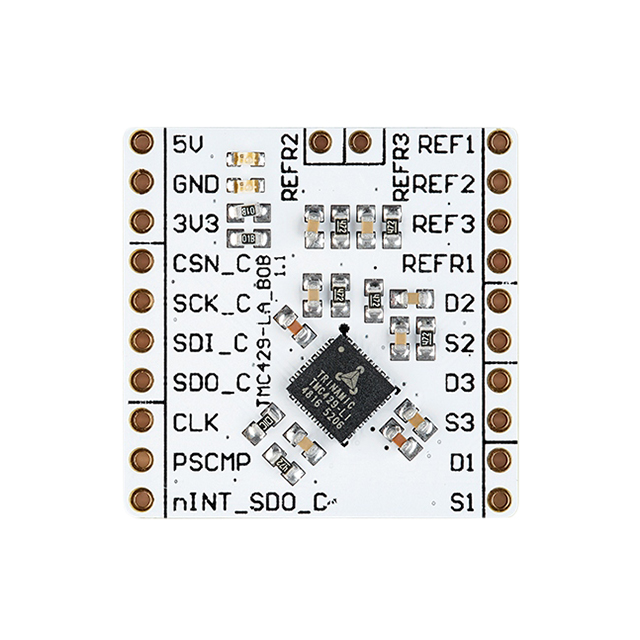

 Analog Devices Inc./Maxim Integrated | Board(s) | Power Management | TMC429 | Board(s) | ||||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) Cable(s) | Power Management | TMC260 TMC261 TMC262 TMC424 TMC429 | Board Cable | Yes MCU | 2 Channel H-Bridge Driver | SPI Interface(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | General Purpose | CMOS | Bipolar | SPI | -40 °C | 105 °C | SPI Step/Direction | 5 V | 3.3 V | 32-QFN (5x5) | Surface Mount | 32-VFQFN Exposed Pad | 1 | 0.015625 | Controller - Commutation Direction Management |
