TMC5031 Series

Dual silent stepper motor cDriver 5 to 16V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Dual silent stepper motor cDriver 5 to 16V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Technology	Step Resolution [Min]	Step Resolution [Max]	Supplier Device Package	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Package / Case	Mounting Type	Interface	Motor Type - Stepper	Supplied Contents	Embedded	Type	Contents	Utilized IC / Part	Primary Attributes	Secondary Attributes
Analog Devices Inc./Maxim Integrated TMC5031-LA-T	General Purpose	-40 C	125 °C	16 V	4.75 V	Power MOSFET	1	0.00390625	48-QFN (7x7)	Half Bridge (8)	5 V	3.3 V	Driver - Fully Integrated Control and Power Stage	48-VFQFN Exposed Pad	Surface Mount	SPI	Bipolar

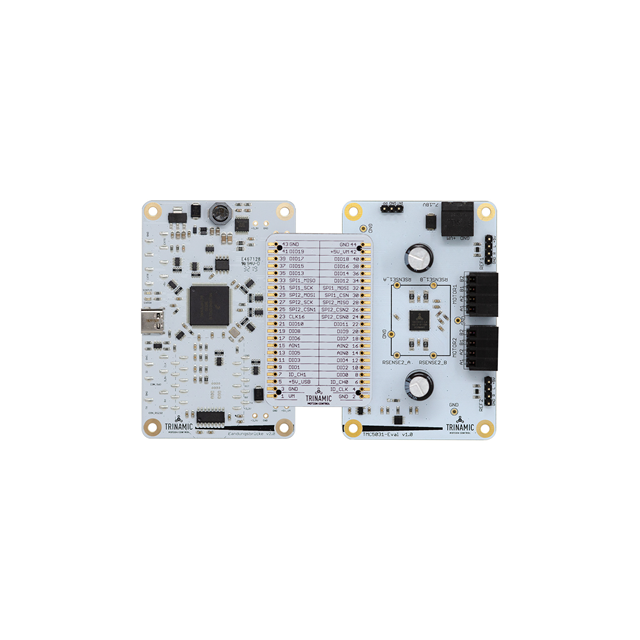

Analog Devices Inc./Maxim Integrated TMC5031-EVAL-KIT																		Board(s)	32-Bit MCU	Power Management	Board(s)	TMC5031	Motors (Stepper)	Graphical User Interface (GUI)

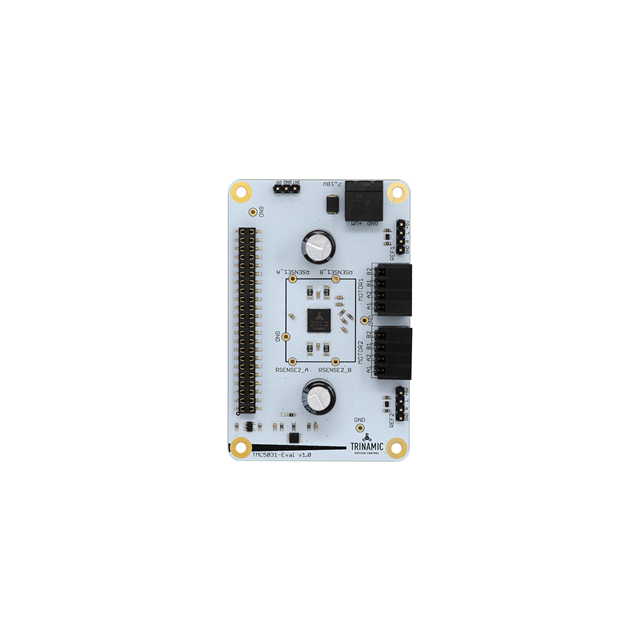

Analog Devices Inc./Maxim Integrated TMC5031-EVAL																		Board(s)	32-Bit MCU	Power Management	Board(s)	TMC5031	Motors (Stepper)	Graphical User Interface (GUI)
Analog Devices Inc./Maxim Integrated TMC5031-LA	General Purpose	-40 C	125 °C	16 V	4.75 V	Power MOSFET	1	0.00390625	48-QFN (7x7)	Half Bridge (8)	5 V	3.3 V	Driver - Fully Integrated Control and Power Stage	48-VFQFN Exposed Pad	Surface Mount	SPI	Bipolar

Catalog

Dual silent stepper motor cDriver 5 to 16V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

Description

The TMC5031 cDriver™ is an integrated motor driver and motion controller solution for CCTV cameras, pumps and other automated equipment applications. The device has two integrated SixPoint™ ramp controllers, microstepping indexers and the sensorless stall detection technology StallGuard2™ and is intended to drive two bipolar stepper motor. The output driver blocks consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC5031 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC5031 is designed for a supply voltage of 5 to 16V. The device provides a SPI interface for configuration and diagnostics and a step and direction interface.APPLICATIONS:CCTV, SecurityAntenna PositioningHeliostat ControllerBattery powered applicationsOffice AutomationATM, Cash recycler, POSLab AutomationLiquid HandlingMedicalPrinter and ScannerPumps and Valves
