TMC261 Series

Catalog

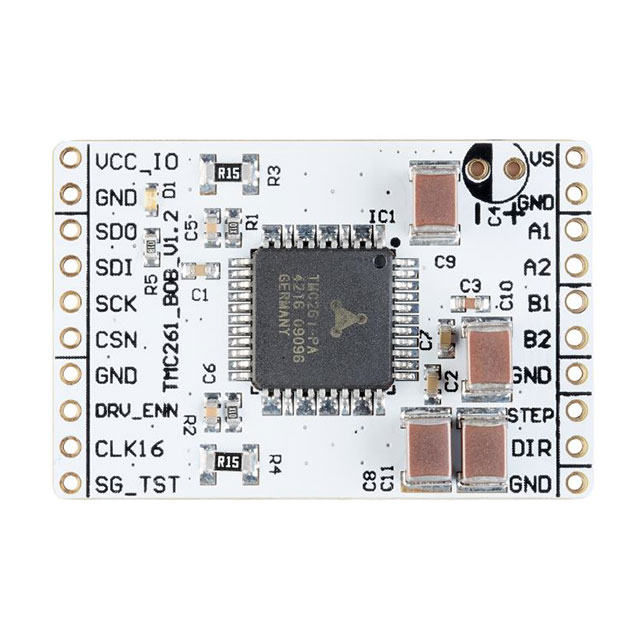

BREAKOUTBOARD WITH TMC261

Part	Supplied Contents	Contents	Secondary Attributes	Type	Utilized IC / Part	Primary Attributes	Supplier Device Package	Mounting Type	Motor Type - Stepper	Voltage - Load [Min]	Voltage - Load [Max]	Applications	Technology	Interface	Function	Step Resolution [Min]	Step Resolution [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]
Analog Devices Inc./Maxim Integrated TMC261-BOB	Board(s)	Board(s)	SPI Interface(s)	Power Management	TMC261	Motors (Stepper)
Analog Devices Inc./Maxim Integrated TMC261C-PA							44-PQFP (10x10)	Surface Mount	Bipolar	9 V	59 V	General Purpose	Power MOSFET	SPI Step/Direction	Driver - Fully Integrated Control and Power Stage	1	0.00390625	44-LQFP	5.25 V	3 V	2 A	Half Bridge (4)	-40 C	125 °C
Analog Devices Inc./Maxim Integrated TMC261-PA-T							44-PQFP (10x10)	Surface Mount	Bipolar	9 V	59 V	General Purpose	Power MOSFET	SPI Step/Direction	Driver - Fully Integrated Control and Power Stage	1	0.00390625	44-LQFP	5.25 V	3 V		Half Bridge (4)	-40 C	125 °C
Analog Devices Inc./Maxim Integrated TMC261C-PA-T							44-PQFP (10x10)	Surface Mount	Bipolar	9 V	59 V	General Purpose	Power MOSFET	SPI Step/Direction	Driver - Fully Integrated Control and Power Stage	1	0.00390625	44-LQFP	5.25 V	3 V	2 A	Half Bridge (4)	-40 C	125 °C
Analog Devices Inc./Maxim Integrated TMC261-PA							44-PQFP (10x10)	Surface Mount	Bipolar	9 V	59 V	General Purpose	Power MOSFET	SPI Step/Direction	Driver - Fully Integrated Control and Power Stage	1	0.00390625	44-LQFP	5.25 V	3 V		Half Bridge (4)	-40 C	125 °C
