TMC2160 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC STEPPER MOTOR DRV SPI S/D

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Current - Output	Interface	Mounting Type	Applications	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Motor Type - Stepper	Step Resolution [Min]	Step Resolution [Max]	Output Configuration	Technology	Motor Type - AC, DC	Supplied Contents	Contents	Type	Utilized IC / Part	Secondary Attributes	Primary Attributes
Analog Devices Inc./Maxim Integrated TMC2160-TA-T	50 V	10 VDC	48-TQFP-EP (7x7)	20 A	SPI Step/Direction	Surface Mount	Automation Control Industrial Medical	48-TQFP Exposed Pad	10 V	55 V	-40 C	125 °C	Driver - Fully Integrated Control and Power Stage	Bipolar	1	0.00390625	Half Bridge (4)	Power MOSFET
Analog Devices Inc./Maxim Integrated TMC2160A-TA-T	50 V	10 VDC	48-TQFP-EP (7x7)	20 A	SPI Step/Direction	Surface Mount	Automation Control Industrial Medical	48-TQFP Exposed Pad	10 V	55 V	-40 C	125 °C	Driver - Fully Integrated Control and Power Stage	Bipolar	1	0.00390625	Half Bridge (4)	Power MOSFET	Universal
Analog Devices Inc./Maxim Integrated TMC2160-BOB																				Board(s)	Board(s)	Power Management	TMC2160	SPI Interface(s)
Analog Devices Inc./Maxim Integrated TMC2160A-TA-X	50 V	10 VDC	48-TQFP-EP (7x7)	20 A	SPI Step/Direction	Surface Mount	Automation Control Industrial Medical	48-TQFP Exposed Pad	10 V	55 V	-40 C	125 °C	Driver - Fully Integrated Control and Power Stage	Bipolar	1	0.00390625	Half Bridge (4)	BCD MOS External Power MOSFETs	Brushed DC

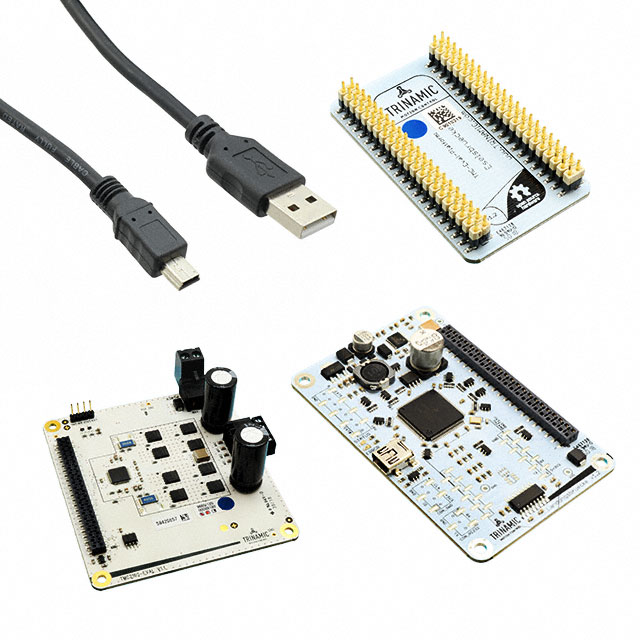

Analog Devices Inc./Maxim Integrated TMC2160-EVAL-KIT																				Board(s)	Board(s)	Power Management	TMC2160	SPI Interface(s)	Motors (Stepper)
Analog Devices Inc./Maxim Integrated TMC2160A-TA	50 V	10 VDC	48-TQFP-EP (7x7)	20 A	SPI Step/Direction	Surface Mount	Automation Control Industrial Medical	48-TQFP Exposed Pad	10 V	55 V	-40 C	125 °C	Driver - Fully Integrated Control and Power Stage	Bipolar	1	0.00390625	Half Bridge (4)	Power MOSFET	Universal

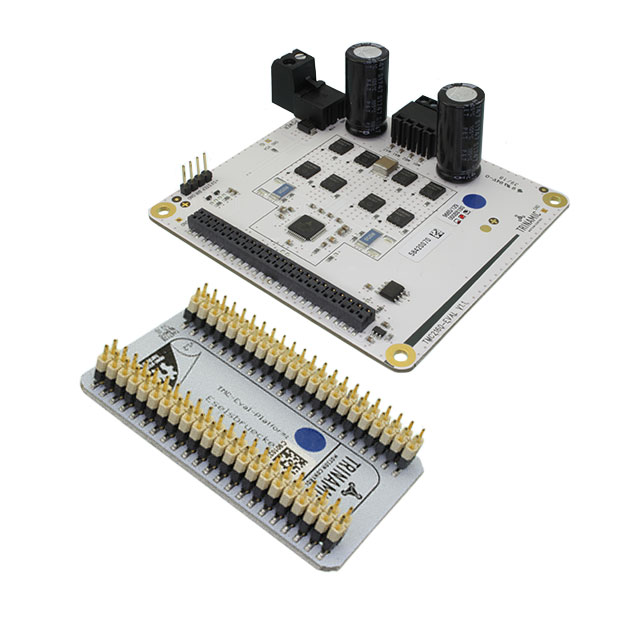

Analog Devices Inc./Maxim Integrated TMC2160-EVAL																				Board(s)	Board(s)	Power Management	TMC2160	SPI Interface(s)
Analog Devices Inc./Maxim Integrated TMC2160-TA	50 V	10 VDC	48-TQFP-EP (7x7)	20 A	SPI Step/Direction	Surface Mount	Automation Industrial Multipurpose	48-TQFP Exposed Pad	10 V	55 V	-40 C	125 °C	Driver - Fully Integrated Control and Power Stage	Bipolar	1	0.00390625	Half Bridge (4)	Power MOSFET
