TMC2224 Series

Catalog

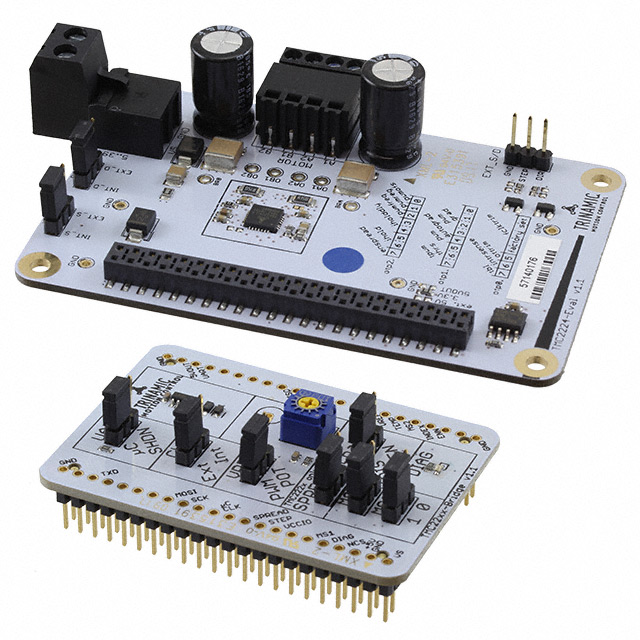

EVAL BOARD FOR TMC2224

Part	Supplied Contents	Contents	Utilized IC / Part	Type	Applications	Interface	Current - Output	Step Resolution [Min]	Step Resolution [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Function	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Configuration	Technology	Package / Case	Motor Type - Stepper	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type - AC, DC
Analog Devices Inc./Maxim Integrated TMC2224-EVAL	Board(s)	Board(s)	TMC2224	Power Management
Analog Devices Inc./Maxim Integrated TMC2224-LA-T					General Purpose	Logic UART	1.2 A	1	0.00390625	36 V	5.5 V	Driver - Fully Integrated Control and Power Stage	28-QFN (5x5)	-40 C	125 °C	Surface Mount	Half Bridge (4)	Power MOSFET	28-VFQFN Exposed Pad	Bipolar	5.5 V	36 V

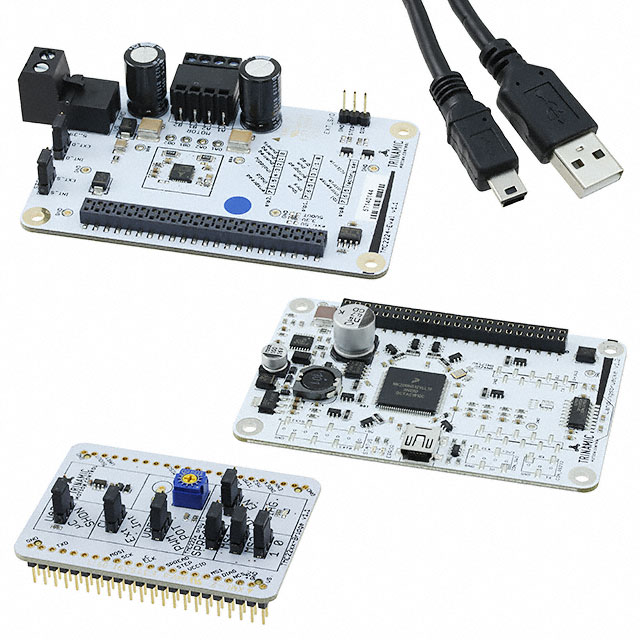

Analog Devices Inc./Maxim Integrated TMC2224-EVAL-KIT	Board(s)	Board(s)	TMC2224	Power Management
Analog Devices Inc./Maxim Integrated TMC2224-LA					General Purpose		1.2 A	1	0.00390625	36 V	5.5 V	Driver - Fully Integrated Control and Power Stage	28-QFN (5x5)	-40 C	125 °C	Surface Mount	Half Bridge (2)	Power MOSFET	28-VFQFN Exposed Pad	Bipolar	5.5 V	36 V	Brushed DC
