TMC2209 Series

Silent stepper motor driver 5 to 29V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop2

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Silent stepper motor driver 5 to 29V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop2

Part	Supplied Contents	Primary Attributes	Type	Function	Contents	Utilized IC / Part	Package / Case	Motor Type - Stepper	Interface	Technology	Output Configuration	Applications	Mounting Type	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Step Resolution [Min]	Step Resolution [Max]	Secondary Attributes
Analog Devices Inc./Maxim Integrated TMC2209SILENTSTEPSTICK	Board(s)	Motors (Stepper)	Power Management	Motor Controller/Driver	Board(s)	TMC2209
Analog Devices Inc./Maxim Integrated TMC2209-LA				Driver - Fully Integrated Control and Power Stage			28-VFQFN Exposed Pad	Bipolar	Step/Direction UART	Power MOSFET	Step/Direction	Automation Control	Surface Mount	28-QFN (5x5)	5.5 V	29 V	2 A	4.8 V	5.25 V	-40 C	125 °C	1	0.00390625

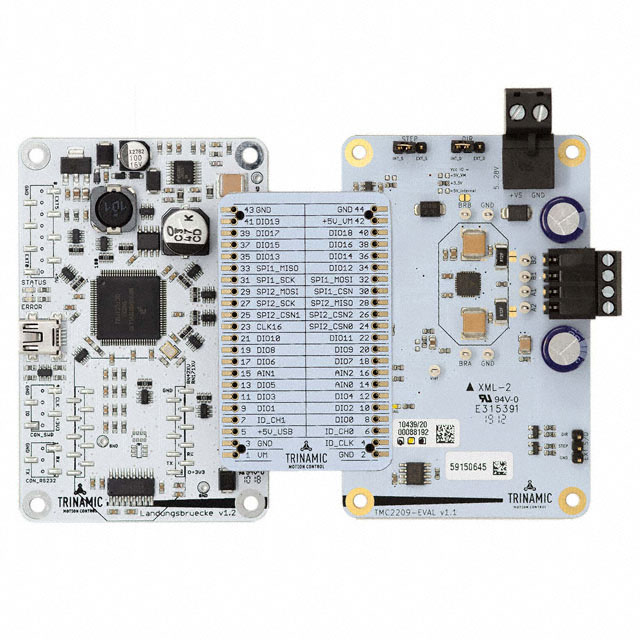

Analog Devices Inc./Maxim Integrated TMC2209-EVAL-KIT	Board(s)	Motors (Stepper)	Power Management	Motor Controller/Driver	Board(s)	TMC2209																		Graphical User Interface (GUI)
Analog Devices Inc./Maxim Integrated TMC2209-LA-T				Driver - Fully Integrated Control and Power Stage			28-VFQFN Exposed Pad	Bipolar	Step/Direction UART	Power MOSFET	Step/Direction	Automation Control	Surface Mount	28-QFN (5x5)	5.5 V	29 V	2 A	4.8 V	5.25 V	-40 C	125 °C	1	0.00390625

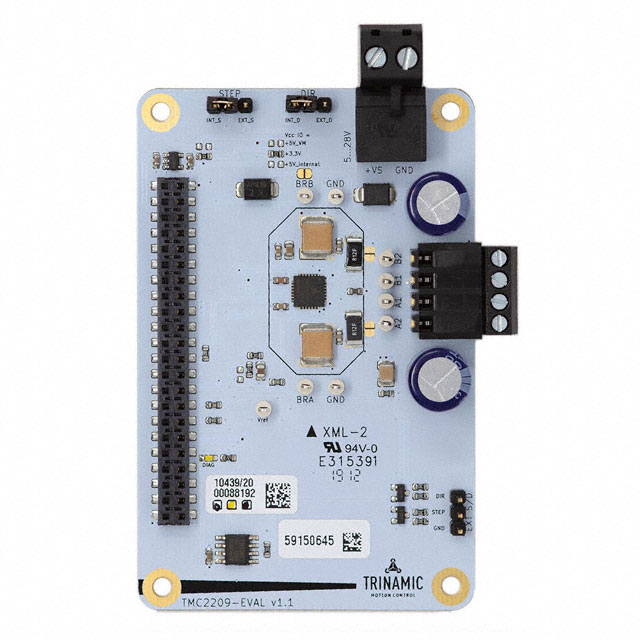

Analog Devices Inc./Maxim Integrated TMC2209-EVAL	Board(s)	Motors (Stepper)	Power Management	Motor Controller/Driver	Board(s)	TMC2209																		Graphical User Interface (GUI)

Catalog

Silent stepper motor driver 5 to 29V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop2

Description

The TMC2209 is an ultra-silent motor driver IC for two phase stepper motors.ADI Trinamic's sophisticated StealthChop2™chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle™allow highly dynamic motion while adding StallGuard4™for sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Store application tuning to OTP memory. Industries’ most advanced Step/Dir stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.ApplicationsCompatible Design Upgrade3D PrintersPrinters, POSOffice and home automationTextile, Sewing MachinesCCTV, SecurityATM, Cash recyclerHVACBattery Operated Equipment
