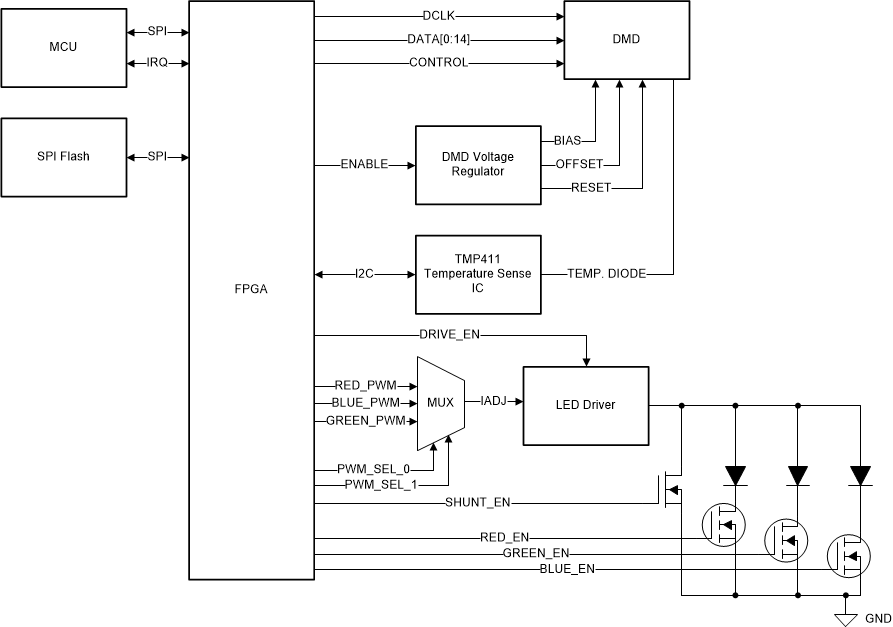

DLP3021-Q1DLP® automotive 0.3-inch digital micromirror device (DMD) | Integrated Circuits (ICs) | 1 | Active | The DLP3021-Q1 Automotive DMD is primarily targeted for automotive exterior light control and display applications, such as ground projection with the ability to display dynamic content. Ground projections can help facilitate vehicle to pedestrian (V2P) communication, such as back up and door open warnings, in addition to orchestrating vehicle communication systems and vehicle personalization options. Due to their small form factor and low power operation, projectors with the DLP3021-Q1 chipset can support many projection applications. They can be placed in many locations in the car including inside the side mirror, door panel, tail light, front grill, and more. This chipset can be coupled with LEDs or lasers to create highly saturated colors with over 125% NTSC color gamut, and can be used with either RGB or white illumination sources. A DLP Products FPGA configuration can be used to drive the DLP3021-Q1 Automotive DMD to reduce form factor for easy integration in a vehicle. TheDLPC120-Q1Automotive DMD controller can also be used to drive the DLP3021-Q1 Automotive DMD with support for 24-bit RGB video input to increase content flexibility.
The DLP3021-Q1 Automotive DMD is primarily targeted for automotive exterior light control and display applications, such as ground projection with the ability to display dynamic content. Ground projections can help facilitate vehicle to pedestrian (V2P) communication, such as back up and door open warnings, in addition to orchestrating vehicle communication systems and vehicle personalization options. Due to their small form factor and low power operation, projectors with the DLP3021-Q1 chipset can support many projection applications. They can be placed in many locations in the car including inside the side mirror, door panel, tail light, front grill, and more. This chipset can be coupled with LEDs or lasers to create highly saturated colors with over 125% NTSC color gamut, and can be used with either RGB or white illumination sources. A DLP Products FPGA configuration can be used to drive the DLP3021-Q1 Automotive DMD to reduce form factor for easy integration in a vehicle. TheDLPC120-Q1Automotive DMD controller can also be used to drive the DLP3021-Q1 Automotive DMD with support for 24-bit RGB video input to increase content flexibility. |

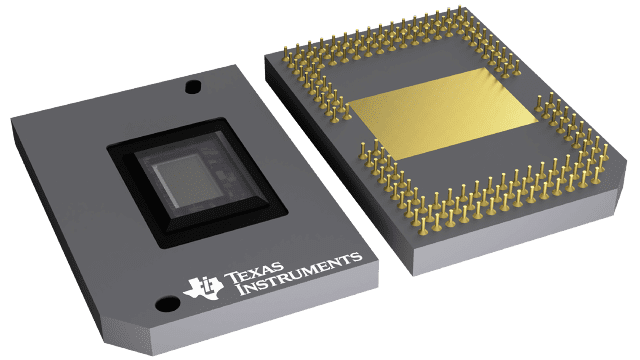

DLP3034-Q1DLP® automotive 0.3-inch 405nm digital micromirror device (DMD) | Specialized ICs | 1 | Active | The DLP3034-Q1 automotive DMD is primarily targeted for transparent window display applications. This chipset can be coupled with 405-nm illumination sources (e.g. LEDs or lasers) in an optical projection system to project onto windows embedded with emissive phosphor films. When these transparent emissive films are excited with 405-nm light from a DLP3034-Q1 projector, the window becomes a display emitting light in the visible spectrum. In addition, this chipset enables high power optical systems with a wide dynamic range and fast switching speeds that do not vary with temperature.
The DLP3034-Q1 automotive DMD is primarily targeted for transparent window display applications. This chipset can be coupled with 405-nm illumination sources (e.g. LEDs or lasers) in an optical projection system to project onto windows embedded with emissive phosphor films. When these transparent emissive films are excited with 405-nm light from a DLP3034-Q1 projector, the window becomes a display emitting light in the visible spectrum. In addition, this chipset enables high power optical systems with a wide dynamic range and fast switching speeds that do not vary with temperature. |

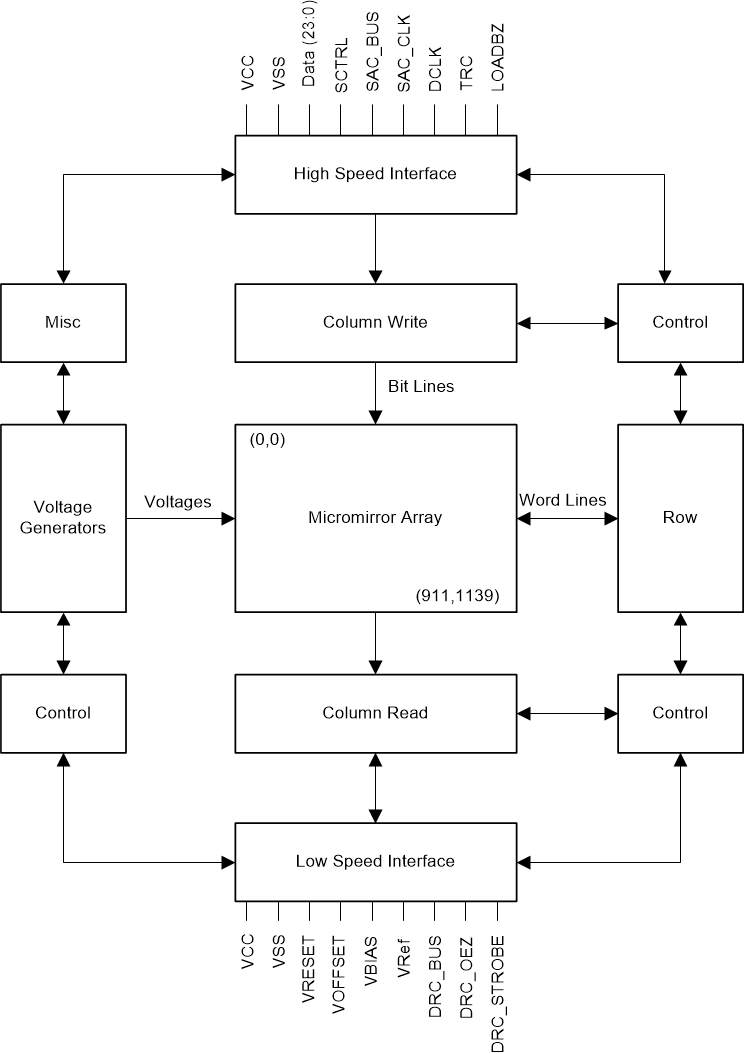

DLP45000.45-inch WXGA DLP® digital micromirror device (DMD) | Specialized ICs | 4 | Active | 0.45-inch WXGA DLP® digital micromirror device (DMD) |
DLP4621-Q1Automotive 0.46-inch DLP® digital micromirror device (DMD) for exterior lighting applications | Integrated Circuits (ICs) | 1 | Active | The DLP DLP4621-Q1 automotive digital micromirror device (DMD), combined with the DLPC231-Q1 DMD controller and TPS99001-Q1 system management and illumination controller, provides the capability to achieve high-performance, high-resolution headlight systems. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 0.9MP resolution enables high-resolution symbol projection and adaptive driving beam applications. The DLP4621-Q1 optical throughput is optimized to maximize lumens with industry-leading LEDs and laser technology. The DLP4621-Q1 automotive DMD micromirror array is configured for bottom illumination, which enables highly efficient and more compact optical engine designs. The DLP4621-Q1 device is available in a panel package for optimized system cost. The package has low thermal resistance to the DMD array to enable efficient thermal solutions.
The DLP DLP4621-Q1 automotive digital micromirror device (DMD), combined with the DLPC231-Q1 DMD controller and TPS99001-Q1 system management and illumination controller, provides the capability to achieve high-performance, high-resolution headlight systems. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 0.9MP resolution enables high-resolution symbol projection and adaptive driving beam applications. The DLP4621-Q1 optical throughput is optimized to maximize lumens with industry-leading LEDs and laser technology. The DLP4621-Q1 automotive DMD micromirror array is configured for bottom illumination, which enables highly efficient and more compact optical engine designs. The DLP4621-Q1 device is available in a panel package for optimized system cost. The package has low thermal resistance to the DMD array to enable efficient thermal solutions. |

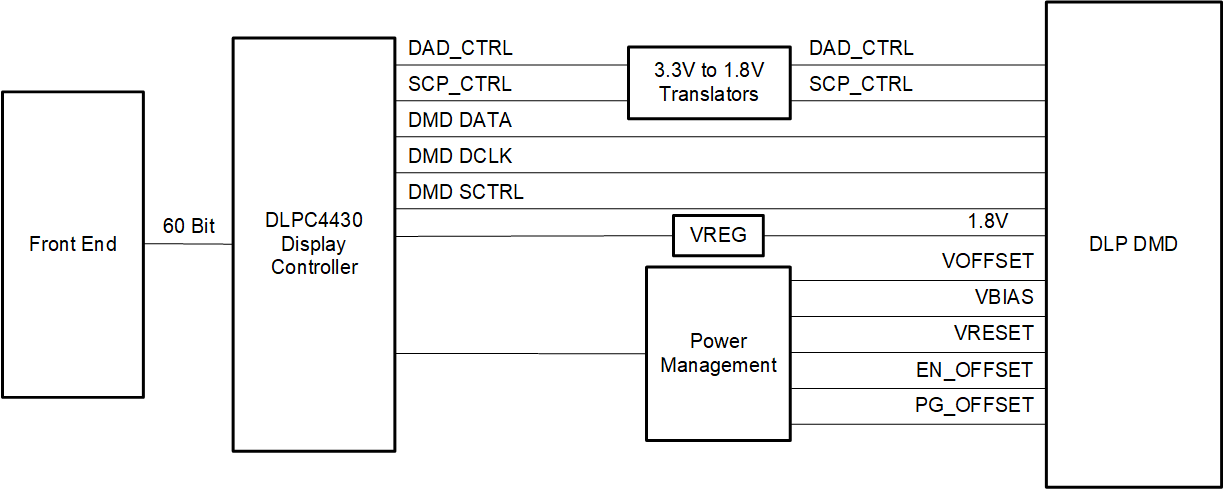

DLP470NE0.47-inch 1080p 2xLVDS DLP® digital micromirror device (DMD) | Integrated Circuits (ICs) | 6 | Active | The TI DLP DLP470NEdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright full HD display systems. The DLP470NE DMD—together with the DLPC4420 display controller and the DLPA100 controller power and motor driver—provides the capability to achieve high performance systems and is a great fit for display applications that require high resolution and 16:9 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP470NE DMD can also use the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
The TI DLP DLP470NEdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright full HD display systems. The DLP470NE DMD—together with the DLPC4420 display controller and the DLPA100 controller power and motor driver—provides the capability to achieve high performance systems and is a great fit for display applications that require high resolution and 16:9 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP470NE DMD can also use the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD. |

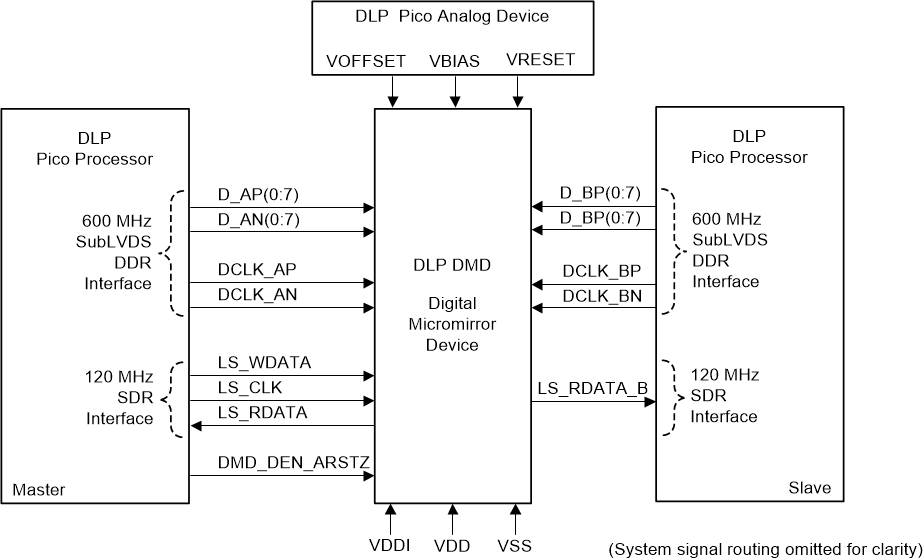

DLP4710LC0.47-inch 1080p DLP® digital micromirror device (DMD) | Integrated Circuits (ICs) | 3 | Active | The DLP4710LC digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, theDLP4710LCDMD displays a very crisp and high quality image or video. The device is a component of the chipset comprising the DLP4710LC DMD,DLPC3479controller andDLPA3000/DLPA3005PMIC/LED drivers. The compact physical size of the DLP4710LC coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high resolution HD displays.
The DLP4710LC digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, theDLP4710LCDMD displays a very crisp and high quality image or video. The device is a component of the chipset comprising the DLP4710LC DMD,DLPC3479controller andDLPA3000/DLPA3005PMIC/LED drivers. The compact physical size of the DLP4710LC coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high resolution HD displays. |
| Integrated Circuits (ICs) | 1 | Active | |

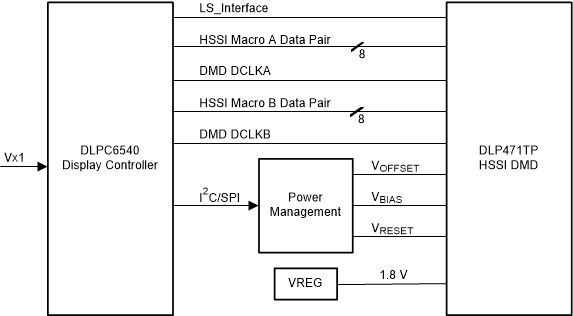

DLP471TE0.47-inch 4K UHD HSSI DLP® digital micromirror device (DMD) | Integrated Circuits (ICs) | 2 | Active | The DLP471TE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP Products 0.47" 4K UHD chipset is composed of the DMD,DLPC7540display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
The DLP471TE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP Products 0.47" 4K UHD chipset is composed of the DMD,DLPC7540display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD. |
DLP480RE0.48-inch WUXGA DLP® digital micromirror device (DMD) | Specialized ICs | 2 | Active | The TI DLP480REdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables high resolution WUXGA display systems. The DLP480RE DMD, together with the DLPC4420 display controller, the DLPA100 controller power and motor driver provides the capability to achieve high performance systems and is a great fit for display applications that require higher resolution and 16:10 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP480RE DMD can also utilize the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
The TI DLP480REdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables high resolution WUXGA display systems. The DLP480RE DMD, together with the DLPC4420 display controller, the DLPA100 controller power and motor driver provides the capability to achieve high performance systems and is a great fit for display applications that require higher resolution and 16:10 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP480RE DMD can also utilize the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD. |
| Integrated Circuits (ICs) | 4 | Active | |
