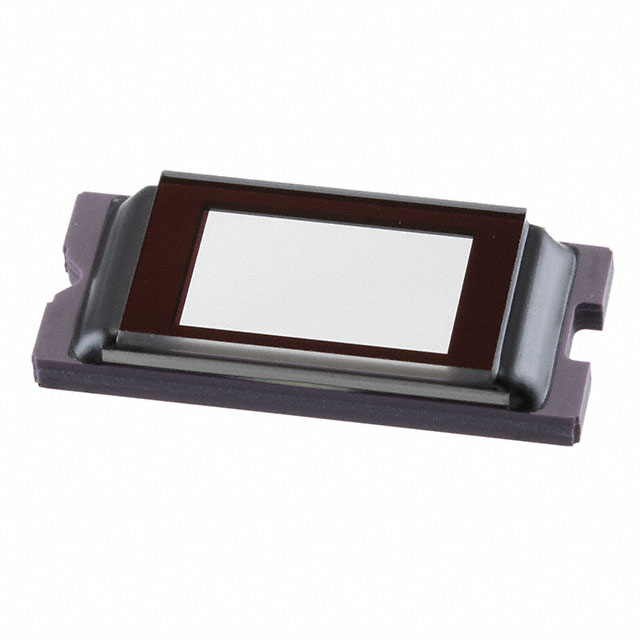

0.45-inch WXGA DLP® digital micromirror device (DMD)
Key Features
• 0.45-Inch Diagonal Micromirror Array912 × 1140 Resolution Array (>1 Million Micromirrors)Diamond Array Orientation Supports Side Illumination for Simplified, Efficient Optics DesignsCapable of WXGA Resolution Display7.6-µm Micromirror Pitch±12° Tilt Angle5-µs Micromirror Crossover TimeHighly Efficient Steering of Visible LightWindow Transmission Efficiency 96% Nominal ( 420 to 700 nm, Single Pass Through Two Window Surfaces)Polarization-Independent Aluminum MicromirrorsArray Fill Factor 92% (Nominal)Dedicated DLPC350 Controller for Reliable OperationBinary Pattern Rates Up to 4 kHzPattern Sequence Mode for Control Over Each Micromirror in ArrayIntegrated Micromirror Driver Circuitry9.1-mm × 20.7-mm for Portable InstrumentsFQE Package With Simple Connector InterfaceFQD Package With Enhanced Thermal Interface0.45-Inch Diagonal Micromirror Array912 × 1140 Resolution Array (>1 Million Micromirrors)Diamond Array Orientation Supports Side Illumination for Simplified, Efficient Optics DesignsCapable of WXGA Resolution Display7.6-µm Micromirror Pitch±12° Tilt Angle5-µs Micromirror Crossover TimeHighly Efficient Steering of Visible LightWindow Transmission Efficiency 96% Nominal ( 420 to 700 nm, Single Pass Through Two Window Surfaces)Polarization-Independent Aluminum MicromirrorsArray Fill Factor 92% (Nominal)Dedicated DLPC350 Controller for Reliable OperationBinary Pattern Rates Up to 4 kHzPattern Sequence Mode for Control Over Each Micromirror in ArrayIntegrated Micromirror Driver Circuitry9.1-mm × 20.7-mm for Portable InstrumentsFQE Package With Simple Connector InterfaceFQD Package With Enhanced Thermal Interface
