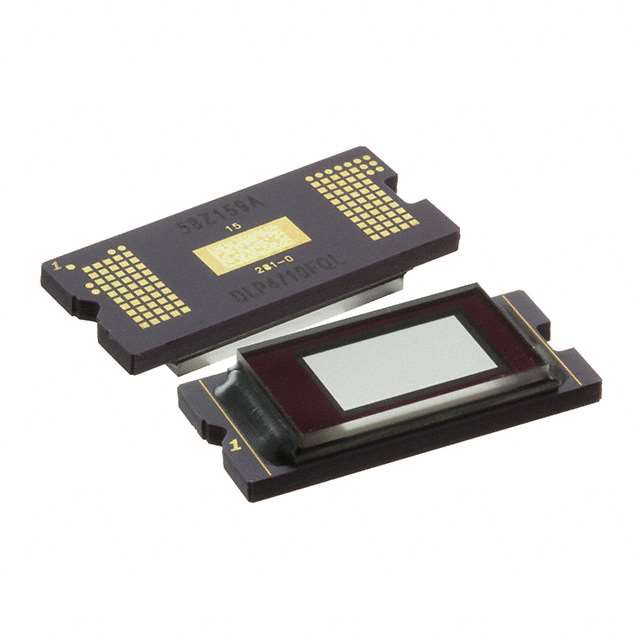

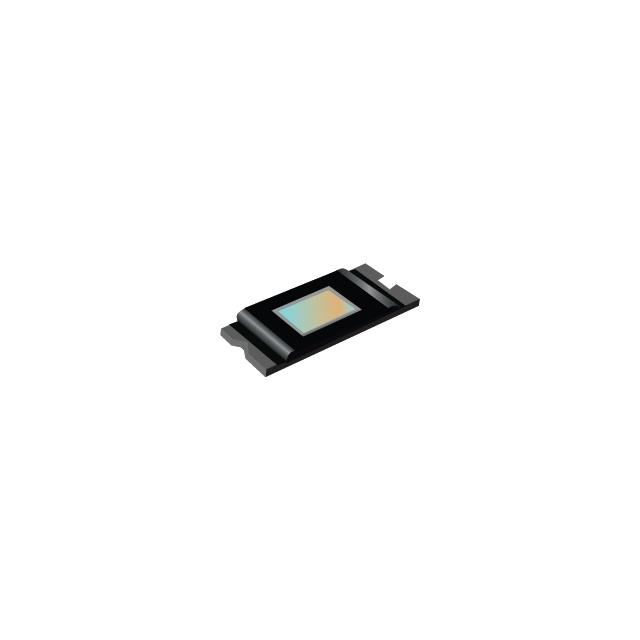

DLP4710LC Series
0.47-inch 1080p DLP® digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
0.47-inch 1080p DLP® digital micromirror device (DMD)
Key Features
• 0.47-Inch (11.93-mm) diagonal micromirror array1920 × 1080 array of aluminum micrometer-sized mirrors, in an orthogonal layoutMicromirror pitch: 5.4 µmMicromirror tilt (relative to flat surface): ±17°Bottom illumination for optimal efficiency and optical engine sizePolarization independent aluminum micromirror surface32-Bit SubLVDS input data busDedicated DLP3479 display and light controllerDedicated DLPA3000 or DLPA3005 PMIC/LED drivers for reliable operation0.47-Inch (11.93-mm) diagonal micromirror array1920 × 1080 array of aluminum micrometer-sized mirrors, in an orthogonal layoutMicromirror pitch: 5.4 µmMicromirror tilt (relative to flat surface): ±17°Bottom illumination for optimal efficiency and optical engine sizePolarization independent aluminum micromirror surface32-Bit SubLVDS input data busDedicated DLP3479 display and light controllerDedicated DLPA3000 or DLPA3005 PMIC/LED drivers for reliable operation
Description
AI
The DLP4710LC digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, theDLP4710LCDMD displays a very crisp and high quality image or video. The device is a component of the chipset comprising the DLP4710LC DMD,DLPC3479controller andDLPA3000/DLPA3005PMIC/LED drivers. The compact physical size of the DLP4710LC coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high resolution HD displays.
The DLP4710LC digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, theDLP4710LCDMD displays a very crisp and high quality image or video. The device is a component of the chipset comprising the DLP4710LC DMD,DLPC3479controller andDLPA3000/DLPA3005PMIC/LED drivers. The compact physical size of the DLP4710LC coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high resolution HD displays.
