DLP471TE Series

0.47-inch 4K UHD HSSI DLP® digital micromirror device (DMD)

Catalog

0.47-inch 4K UHD HSSI DLP® digital micromirror device (DMD)

Part	Mounting Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Type	Package / Case
Texas Instruments DLP471TEA0FYN	Through Hole	149-CPGA	32.2	22.3	Digital Micromirror Device (DMD)	149-BFCPGA

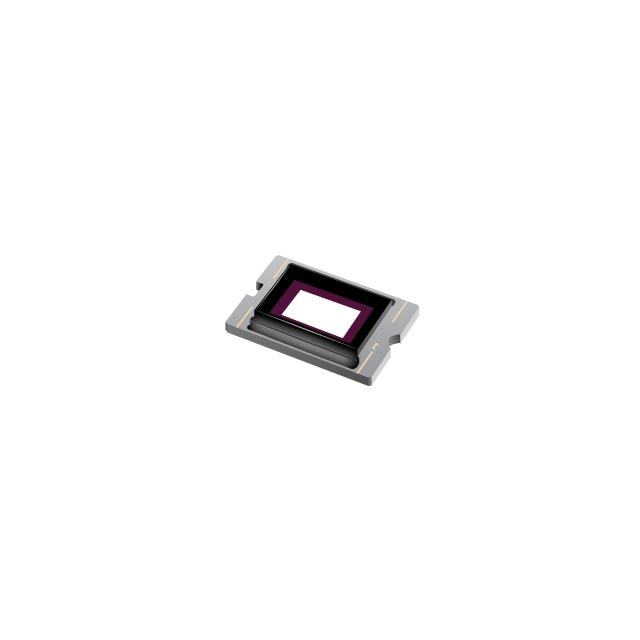

Texas Instruments DLP471TPFQQ	Surface Mount	54-CLGA	25.65	16.9	Digital Micromirror Device (DMD)	54-BCLGA

Catalog

0.47-inch 4K UHD HSSI DLP® digital micromirror device (DMD)

Key Features

• 0.47-inch diagonal micromirror array4K UHD (3840 × 2160) display resolution5.4µm micromirror pitch±17° micromirror tilt (relative to a flat surface)Bottom illuminationHigh-Speed Serial Interface (HSSI) input data busSupports 4K UHD at 60Hz and full HD at 240HzLaser-phosphor, LED, RGB laser, and lamp operation supported byDLPC7540display controller,DLPA100power management and motor driver IC0.47-inch diagonal micromirror array4K UHD (3840 × 2160) display resolution5.4µm micromirror pitch±17° micromirror tilt (relative to a flat surface)Bottom illuminationHigh-Speed Serial Interface (HSSI) input data busSupports 4K UHD at 60Hz and full HD at 240HzLaser-phosphor, LED, RGB laser, and lamp operation supported byDLPC7540display controller,DLPA100power management and motor driver IC

Description

The DLP471TE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP Products 0.47" 4K UHD chipset is composed of the DMD,DLPC7540display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays. The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers. VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD. The DLP471TE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP Products 0.47" 4K UHD chipset is composed of the DMD,DLPC7540display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays. The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers. VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
