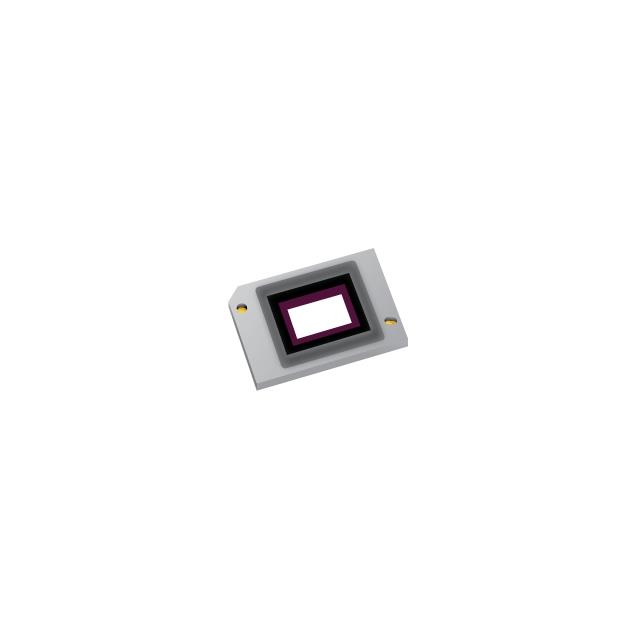

0.48-inch WUXGA DLP® digital micromirror device (DMD)
Key Features
• 0.48-inch diagonal micromirror arrayWUXGA (1920 × 1200) display resolution5.4 micron micromirror pitch±17° micromirror tilt (relative to flat surface)Bottom illumination2xLVDS input data busThe DLP480RE chipset includes:DLP480REDMDDLPC4420controllerDLPA100controller power management and motor driver IC0.48-inch diagonal micromirror arrayWUXGA (1920 × 1200) display resolution5.4 micron micromirror pitch±17° micromirror tilt (relative to flat surface)Bottom illumination2xLVDS input data busThe DLP480RE chipset includes:DLP480REDMDDLPC4420controllerDLPA100controller power management and motor driver IC
Description
AI
The TI DLP480REdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables high resolution WUXGA display systems. The DLP480RE DMD, together with the DLPC4420 display controller, the DLPA100 controller power and motor driver provides the capability to achieve high performance systems and is a great fit for display applications that require higher resolution and 16:10 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP480RE DMD can also utilize the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
The TI DLP480REdigital micromirror device (DMD)is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables high resolution WUXGA display systems. The DLP480RE DMD, together with the DLPC4420 display controller, the DLPA100 controller power and motor driver provides the capability to achieve high performance systems and is a great fit for display applications that require higher resolution and 16:10 aspect ratio, high brightness, and system simplicity in a smaller package. The DLP480RE DMD can also utilize the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
