The IDT650-27 is a low cost, low-jitter, high-performance clock synthesizer for networking applications. Using analog Phase Locked Loop (PLL) techniques, the device accepts a 12.5 MHz or 25 MHz clock or fundamental mode crystal input to produce multiple output clocks for networking chips, PCI devices, SDRAM, and ASIDT. The IDT650-27 outputs all have zero ppm synthesis error. The IDT650-27 is pin compatible and functionally equivalent to the IDT650-07. It is a performance upgrade and is recommended for all new 3.3 V designs. See the MK74CB214, IDT551, and IDT552-01 for non-PLL buffer devices which produce multiple low-skew copies of these output clocks. See the IDT570, IDT9112-16/17/18 for zero delay buffers that can synchronize outputs and other needed clocks.

The 651 is a low skew, single input to four output, clock buffer. Part of IDT's ClockBlocksTM family, this is a low skew, small clock buffer. IDT makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.

The RJH65T04BDPM-A0 650V, 30A trench insulated-gate bipolar transistor (IGBT) offers a low collector to emitter saturation voltage, built-in fast recovery diode (FRD), and can be used for power switching applications. It is available in a TO-3PFP package type.

The RJP65T43DPM 650V, 20A trench insulated-gate bipolar transistor (IGBT) features a 150A collector peak current, offers through hole mounting, and comes in a TO-3PFM package.

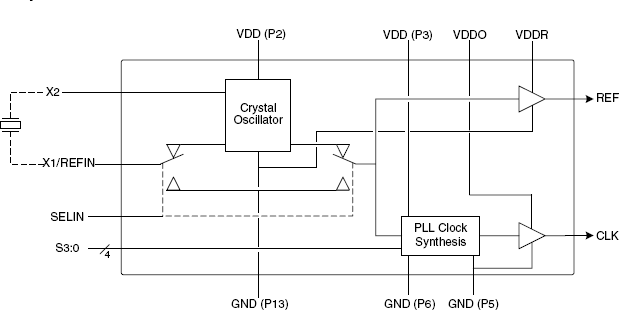

The 661 provides synchronous clock generation for audio sampling clock rates derived from an MPEG stream, or can be used as a standalone clock source with a 27 MHz crystal. The device uses the latest PLL technology to provide excellent phase noise and long term jitter performance for superior synchronization and S/N ratio. Please contact IDT if you have a requirement for an input and output frequency not included here - we can rapidly modify this product to meet special requirements.
