65T1x Series Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

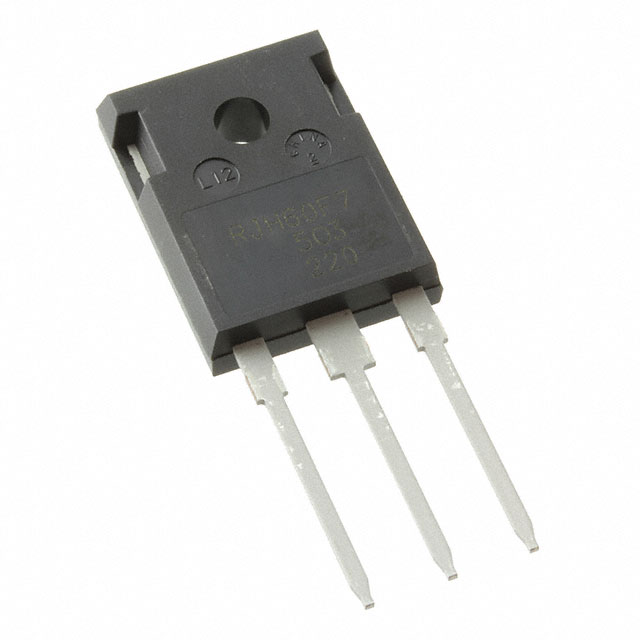

IGBT 650V 50A TO-247A BUILT-IN FRD
| Part | Operating Temperature | Mounting Type | Test Condition | IGBT Type | Switching Energy | Reverse Recovery Time (trr) | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Vce(on) (Max) @ Vge, Ic [Max] | Supplier Device Package | Current - Collector (Ic) (Max) [Max] | Power - Max [Max] | Gate Charge | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 175 °C | Through Hole | 10 Ohm 15 V 50 A 400 V | Trench | 1.2 mJ 1.3 mJ | 250 ns | 650 V | TO-247-3 | 1.75 V | TO-247A | 100 A | 250 W | 80 nC | 125 ns | 38 ns |
