Omnetics

Omnetics Connector Corporation, with over 40 years of experience, is a leading global provider of precision micro-miniature and nano-miniature connectors for military, aerospace, medical, and high-reliability applications.

Series List(66)

Series	Category	# Parts	Status

A22525	Circular Connectors	4	Active
A22526	Connectors, Interconnects	3	Active
A28000	Cable Assemblies	7	Active
A29000	D-Sub Cables	13	Active
A79014	Connectors, Interconnects	1	Active
A79022	Rectangular Connectors	1	Active
A79024	Headers, Male Pins	1	Active
A79025	Headers, Receptacles, Female Sockets	1	Active
A79026	Headers, Male Pins	1	Active
A79028	Cable Assemblies	1	Active

Series	Category	# Parts	Status	Description

Standalone parts(1189)

...

Part	Category	Description

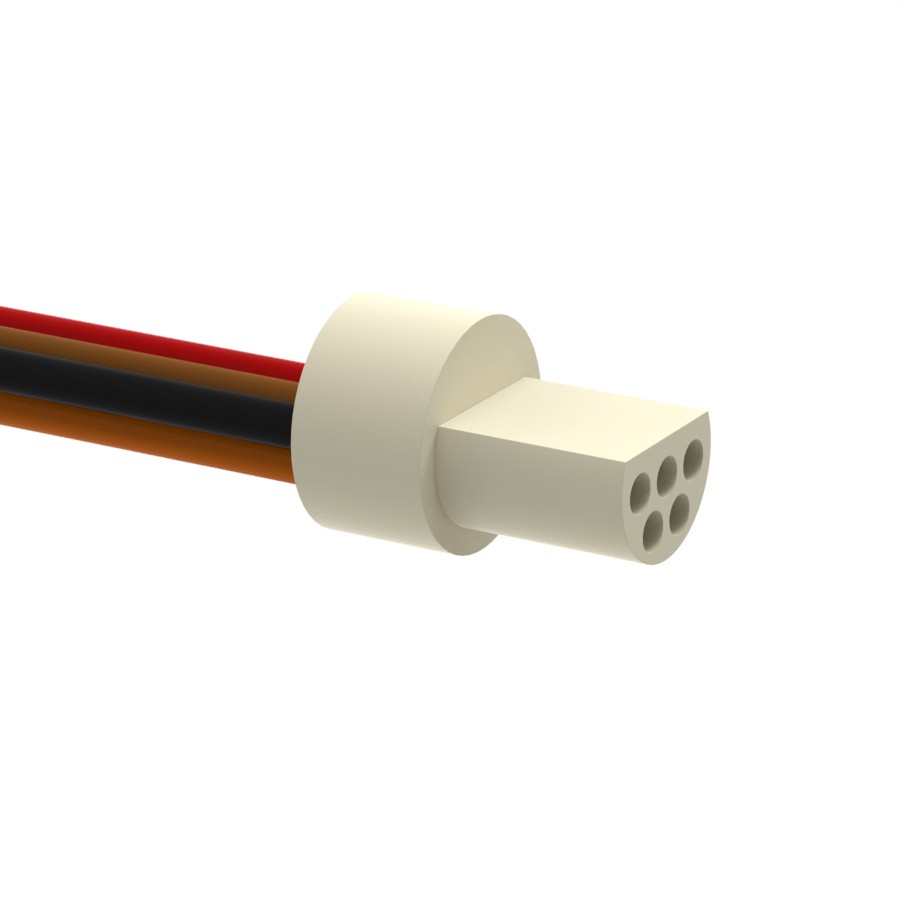

Omnetics A22002-001	Cable Assemblies	CIRC CBL 5POS PLUG TO WIRE 1.5'
Omnetics A22003-001	Cable Assemblies	CIRC CBL 5POS RCPT TO WIRE 1.5'

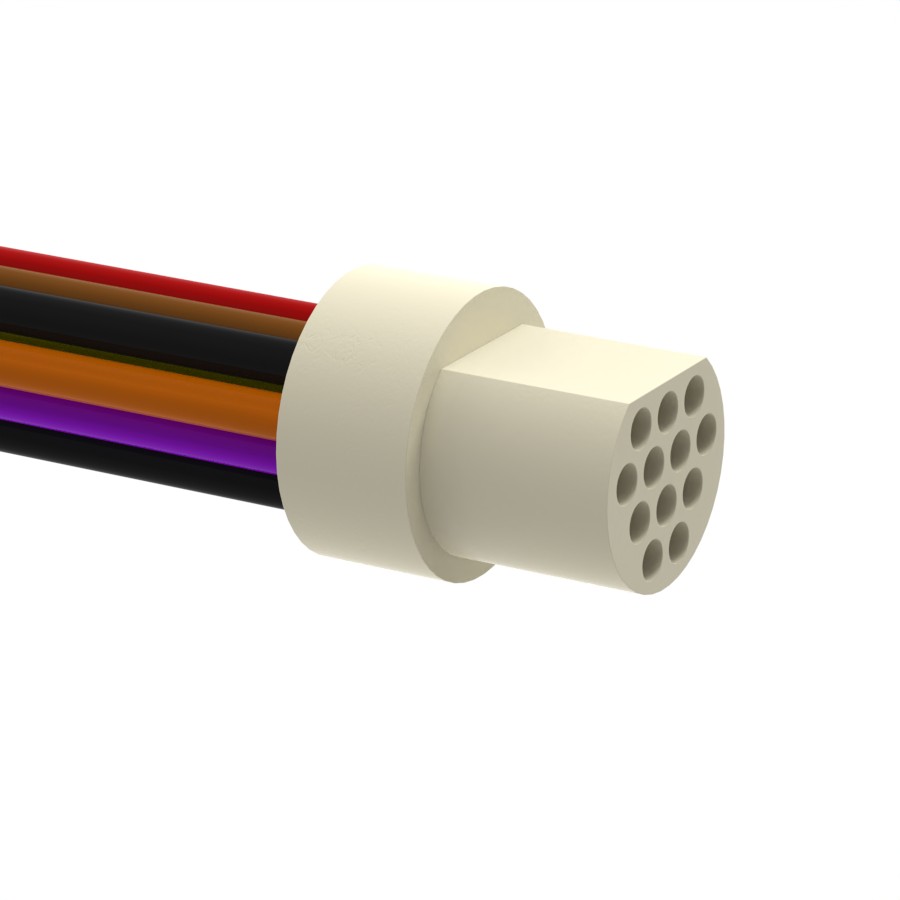

Omnetics A22006-001	Cable Assemblies	CIRC CBL 12POS PLUG TO WIRE 1.5'

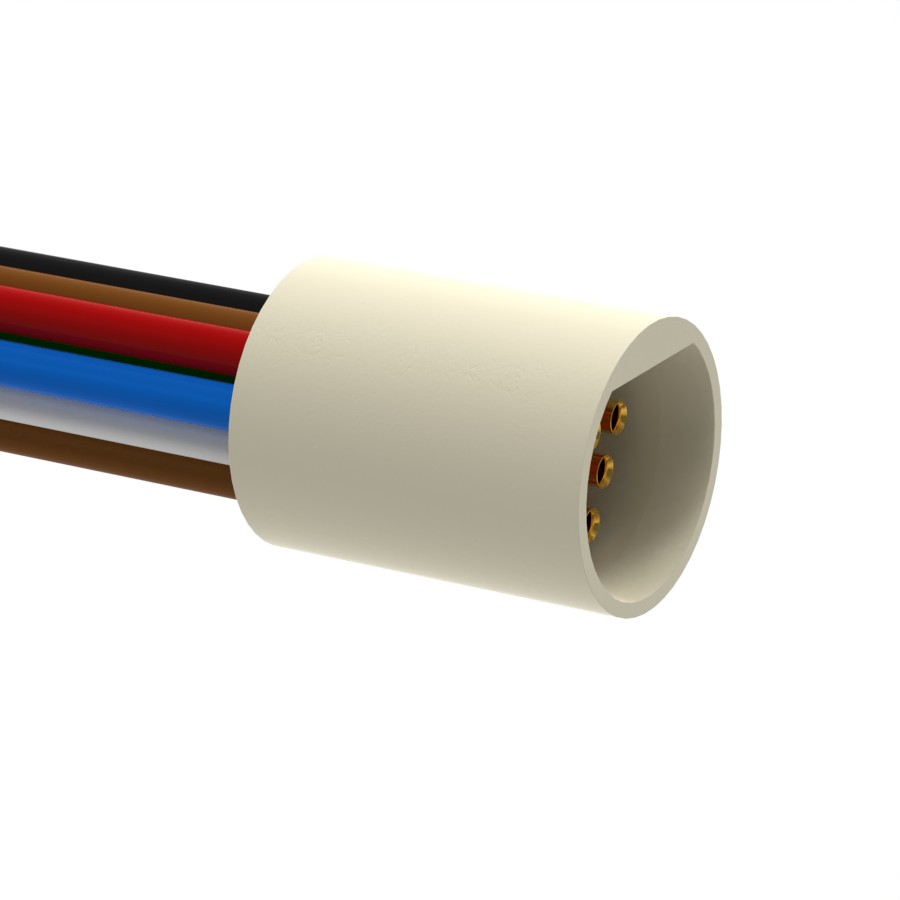

Omnetics A22007-001	Cable Assemblies	CIRC CBL 12POS RCPT TO WIRE 1.5'
Omnetics A22017-001	Connectors Interconnects	12POS PIN MALE MICRO CIRCULAR

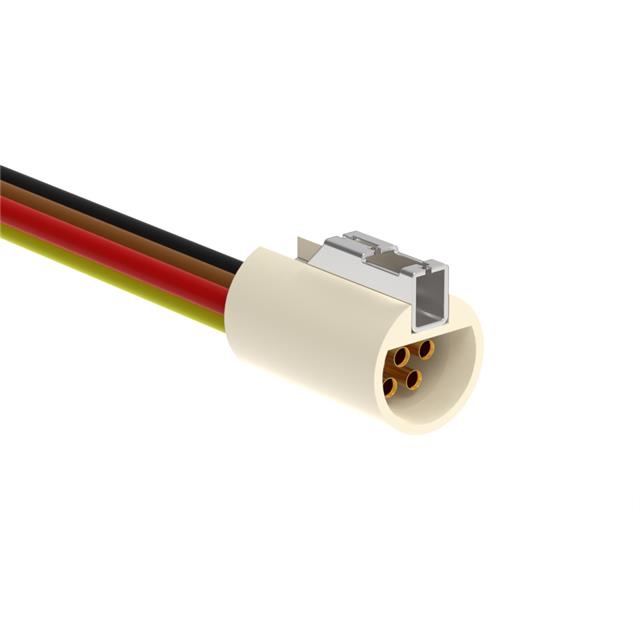

Omnetics A22020-001	Cable Assemblies	CIRC CBL 5POS RCPT TO WIRE 1.5'

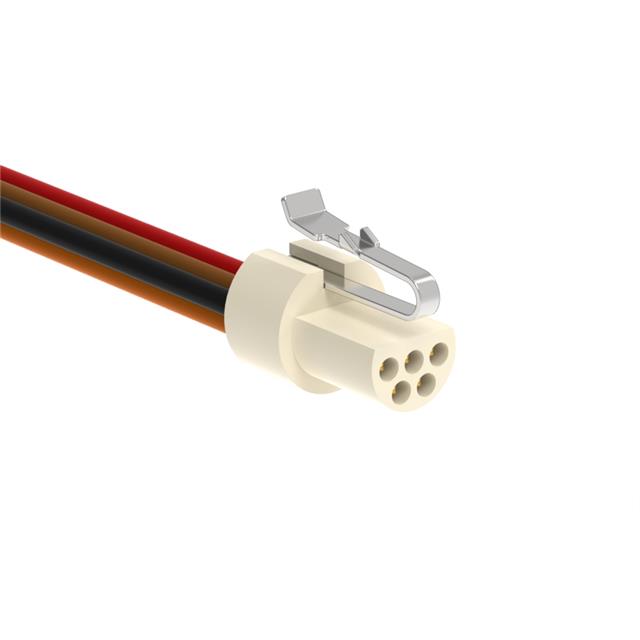

Omnetics A22021-001	Cable Assemblies	CBL CIRC 5POS FMALE TO WIRE 1.5'

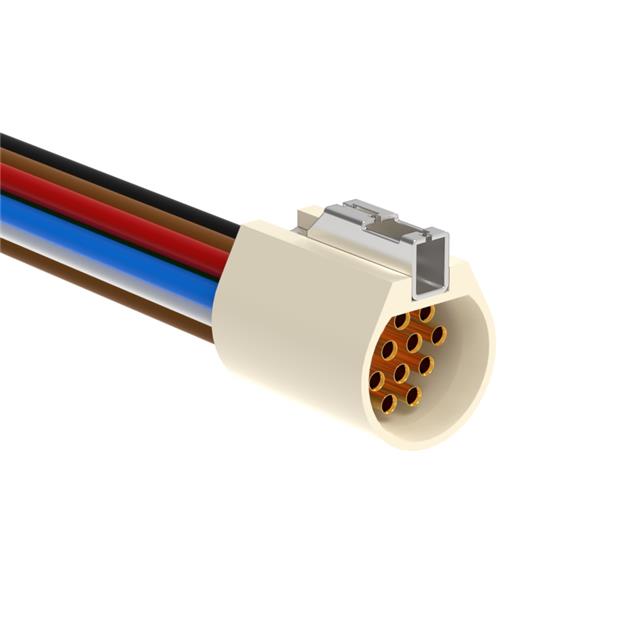

Omnetics A22022-001	Cable Assemblies	CBL CIRC 12POS FMLE TO WIRE 1.5'

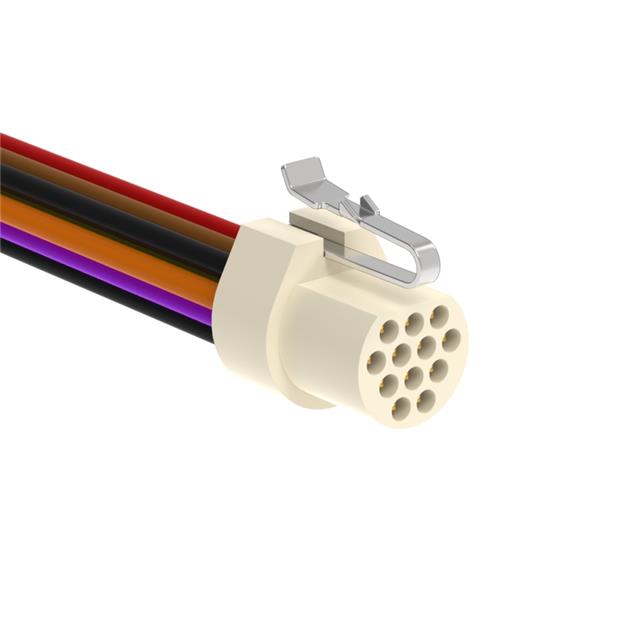

Omnetics A22023-001	Cable Assemblies	CIRC CBL 12POS PLUG TO WIRE 1.5'

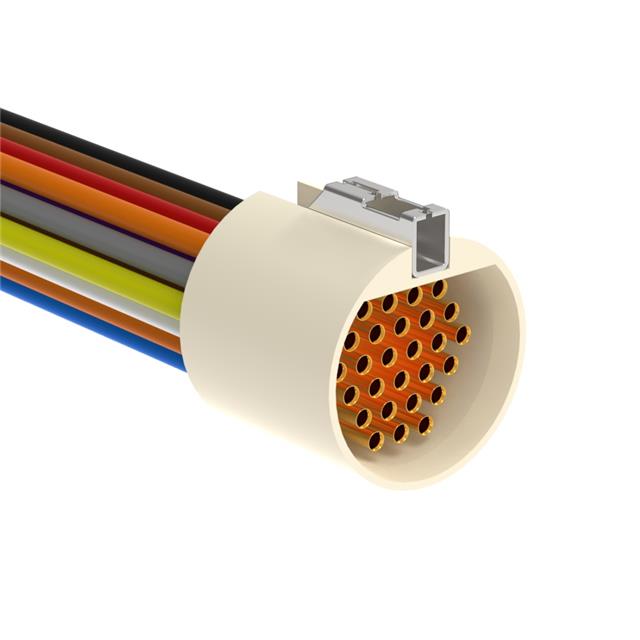

Omnetics A22024-001	Cable Assemblies	CBL CIRC 27POS FMLE TO WIRE 1.5'

Part	Spec A	Spec B	Spec C	Spec D	Description

Omnetics Connector Corporation is a privately held connector design and manufacturing company with over 40 years of experience. The company is a leading global provider of precision and high-reliability electronic connectors, specializing in micro-miniature and nano-miniature interconnects for demanding applications.

Omnetics' product portfolio includes:

Micro-D connectors (MIL-DTL-83513 compliant, 50 mil/1.27mm spacing)
Nano-D connectors (MIL-DTL-32139 compliant, 25 mil/0.64mm spacing)
Micro and Nano circular connectors with Flex-Pin contact system
Hybrid connectors and custom cable assemblies

All Omnetics connectors feature the company's rugged and reliable Flex-Pin contact system and are QPL approved to military specifications. Applications span UAV systems, guidance systems, medical instrumentation, and portable ruggedized electronics across military, aerospace, medical, and instrumentation industries.

Frequently Asked Questions

What military specifications do Omnetics connectors meet?: Omnetics connectors are QPL approved to MIL-DTL-32139 for Nano-D connectors and MIL-DTL-83513 for Micro-D connectors, meeting rigorous military and aerospace quality standards.
What is the Flex-Pin contact system?: Flex-Pin is Omnetics' proprietary contact system that provides rugged and reliable connections in their micro and nano circular connectors, ensuring consistent performance in demanding environments.
What is the contact spacing on Omnetics connectors?: Omnetics Micro connectors use 50 mil (1.27mm) centerline spacing while Nano connectors use 25 mil (0.64mm) centerline spacing for ultra-compact interconnect solutions.
What industries use Omnetics connectors?: Omnetics connectors are used in military, aerospace, medical instrumentation, UAV systems, guidance systems, and other high-technology applications requiring miniature, high-reliability interconnects.
