A79024 Series
Manufacturer: Omnetics
Beta
⌘K

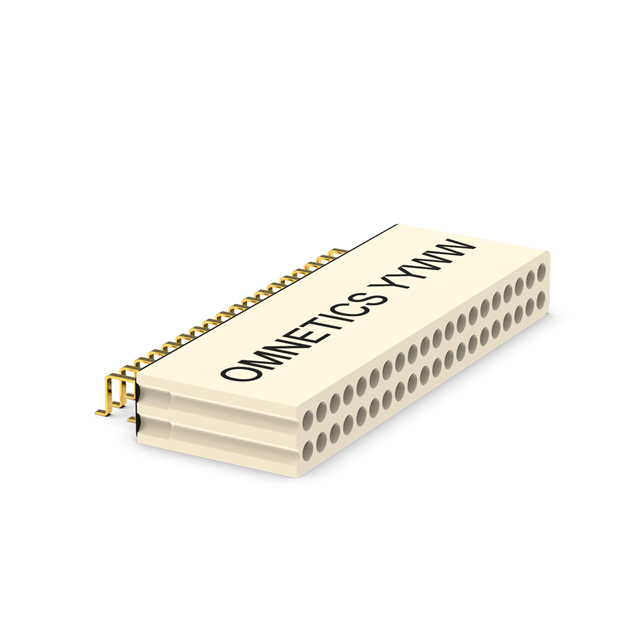

36 POSITION DUAL ROW MALE NANO-M
| Part | Number of Rows [custom] | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Height | Insulation Height | Contact Finish - Post | Connector Type | Current Rating (Amps) | Termination | Number of Positions Loaded | Style | Insulation Color | Contact Type | Features | Insulation Material | Fastening Type | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 2 | Gold | 0.64 mm | 0.025 in | 36 | 1.78 mm | 0.07 in | Tin-Lead | Header | 1 A | Solder | All | Board to Cable/Wire | Natural | Male Pin | Guide Pin | Thermoplastic | Push-Pull | Right Angle Surface Mount | Beryllium Copper | -55 C | 125 °C | 0.76 mm | 0.03 in | Shrouded - 4 Wall | 50 µin | 1.27 µm | Circular |
