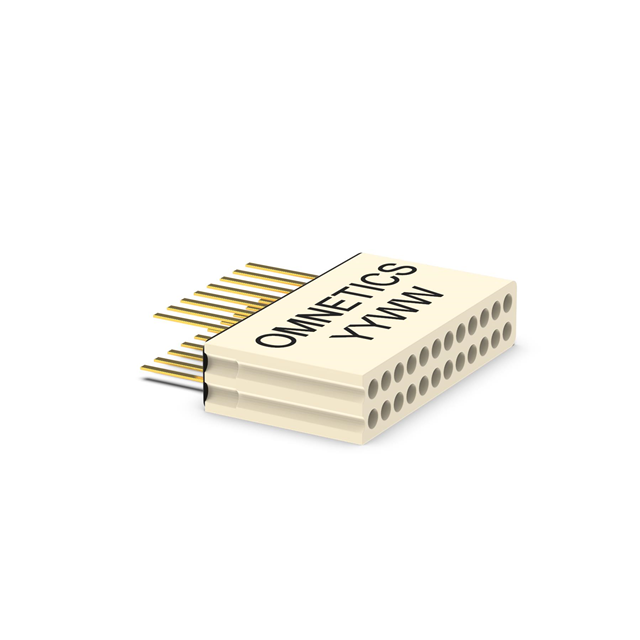

A79014 Series
Manufacturer: Omnetics
Beta
⌘K
18 POSITION DUAL ROW MALE NANO-M
| Part | Style | Contact Shape | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Material | Shrouding | Features | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Mounting Type | Termination | Contact Finish - Post | Fastening Type | Number of Positions | Contact Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Board to Cable/Wire | Circular | 1 A | 0.1 in | 2.54 mm | 0.64 mm | 0.025 in | Thermoplastic | Beryllium Copper | Shrouded - 4 Wall | Guide Pin | Natural | 4.4 mm | 0.173 in | All | Through Hole | Solder | Tin-Lead | Push-Pull | 18 | Male Pin | 2 | -55 C | 125 °C | 50 µin | 1.27 µm | Gold | 0.76 mm | 0.03 in | Header |
