A79022 Series
Manufacturer: Omnetics
Beta
⌘K

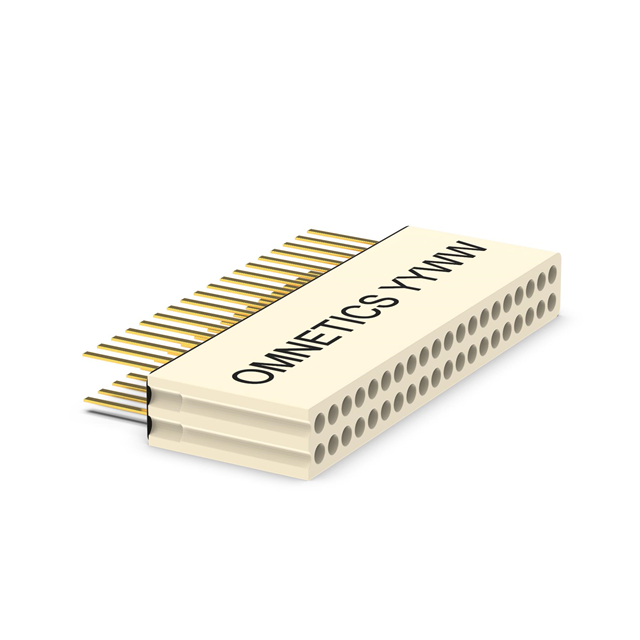

36 POSITION DUAL ROW MALE NANO-M
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Length - Post | Contact Length - Post | Features | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Number of Rows [custom] | Termination | Style | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Color | Number of Positions Loaded | Contact Material | Shrouding | Contact Finish - Mating | Contact Shape | Connector Type | Contact Finish - Post | Number of Positions | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 50 µin | 1.27 µm | Thermoplastic | 0.1 in | 2.54 mm | Guide Pin | Through Hole | 1 A | -55 C | 125 °C | 0.76 mm | 0.03 in | 4.4 mm | 0.173 in | 2 | Solder | Board to Cable/Wire | 0.64 mm | 0.025 in | Male Pin | Natural | All | Beryllium Copper | Shrouded - 4 Wall | Gold | Circular | Header | Tin-Lead | 36 | Push-Pull |
