A79026 Series
Manufacturer: Omnetics
Beta
⌘K

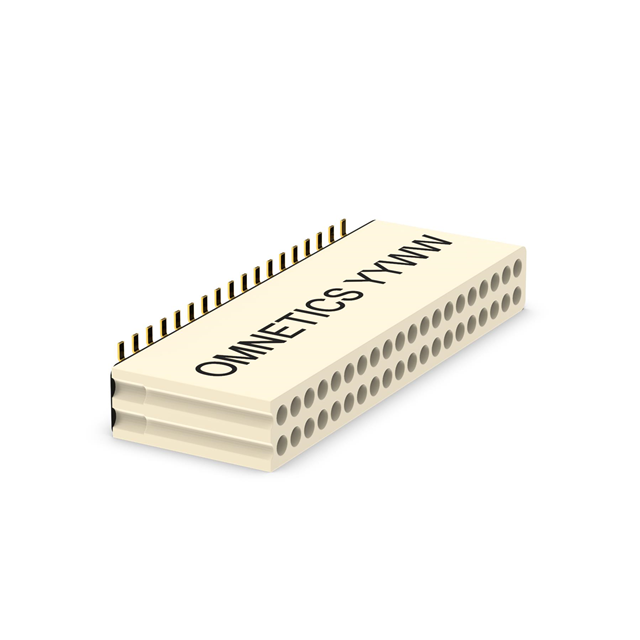

36 POSITION DUAL ROW MALE NANO-M
| Part | Number of Positions Loaded | Insulation Material | Current Rating (Amps) | Shrouding | Contact Shape | Contact Finish - Post | Insulation Height | Insulation Height | Termination | Number of Rows [custom] | Features | Contact Material | Contact Finish - Mating | Number of Positions | Fastening Type | Style | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | All | Thermoplastic | 1 A | Shrouded - 4 Wall | Circular | Tin-Lead | 4.4 mm | 0.173 in | Solder | 2 | Guide Pin | Beryllium Copper | Gold | 36 | Push-Pull | Board to Cable/Wire | 0.76 mm | 0.03 in | Surface Mount | Header | -55 C | 125 °C | Natural | 0.64 mm | 0.025 in | Male Pin | 50 µin | 1.27 µm |
