A79025 Series
Manufacturer: Omnetics
Beta
⌘K

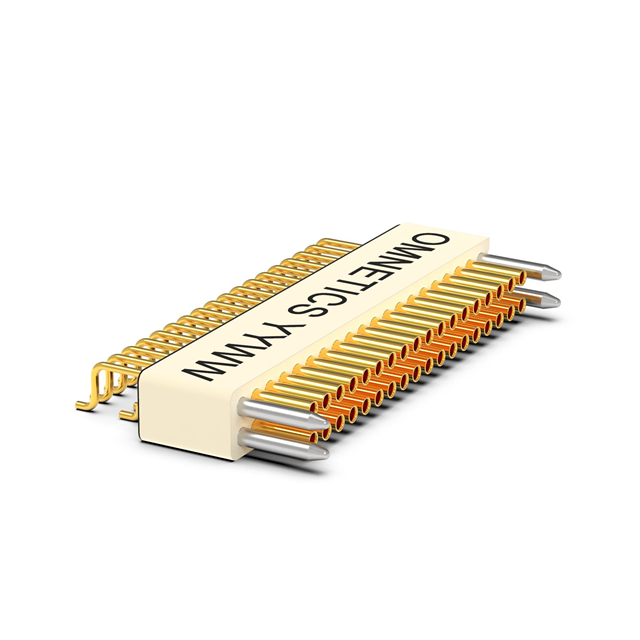

36 POSITION DUAL ROW FEMALE NANO
| Part | Contact Shape | Insulation Material | Contact Material | Features | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Current Rating (Amps) | Contact Finish - Post | Fastening Type | Number of Positions Loaded | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Circular | Thermoplastic | Copper Alloy | Guide Pin | Gold | 0.76 mm | 0.03 in | 0.64 mm | 0.025 in | Receptacle | 1.78 mm | 0.07 in | -55 C | 125 °C | Female Socket | Solder | Natural | 50 µin | 1.27 µm | 2 | 1 A | Tin-Lead | Push-Pull | 36 | 40 | Right Angle Surface Mount |
