The HMC745 is a XOR/XNOR gate function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC745 also features an output level control pin, VR, which permits loss compensation or signal level optimization.All input and output signals to the HMC745 are terminated with 50 Ω to VCCon-chip, and can be either ac-coupled or dc-coupledInputs or outputs can be connected directly to a 50 Ω VCCterminated system, while dc blocking capacitors may be used if the terminating system is 50 Ω to ground. The HMC745 operates from a single 3.3 V dc supply, and is available in a ceramic, RoHS compliant, 3 mm × 3 mm LCC package.ApplicationsRF automatic test equipment (ATE) applicationsBroadband test and measurementSerial data transmission up to 13 GbpsDigital logic systems up to 13 GHz

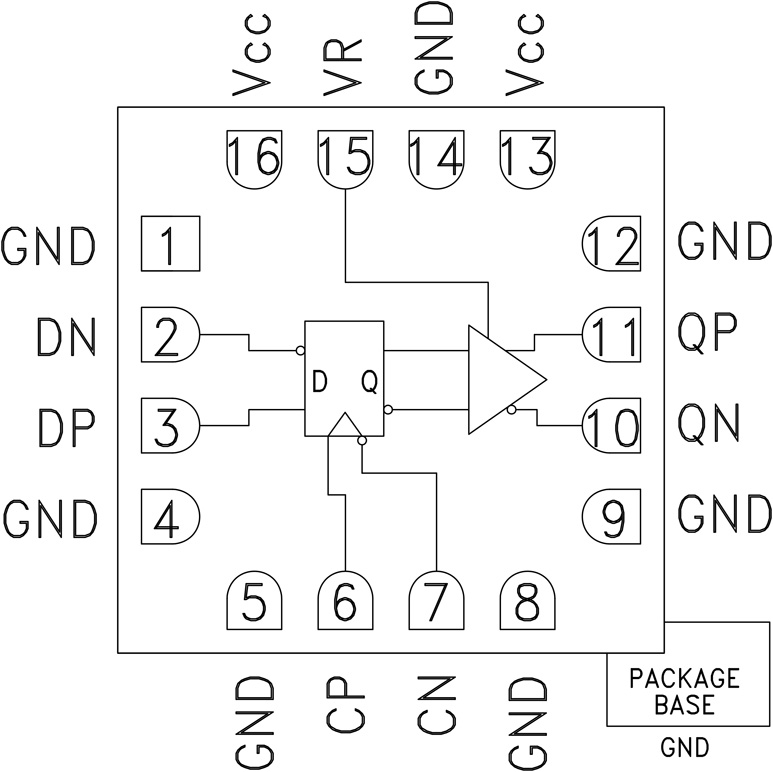

The HMC747 is a D-Type Flip-Flop designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. During normal operation, data is transferred to the outputs on the positive edge of the clock. Reversing the clock inputs allows for negative-edge triggered applications. The HMC747 also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.All input and output signals to the HMC747 are terminated with 50 Ω to VCCon-chip, and may be either AC or DC coupled. Inputs and outputs can be connected directly to a 50 Ω to VCCterminated system, while DC blocking capacitors may be used if the terminating system is 50 Ω to ground. The HMC747 operates from a single +3.3V DC supply and is available in a ceramic RoHS compliant 3×3 mm SMT package.APPLICATIONSRF ATE ApplicationsBroadband Test & MeasurementSerial Data Transmission up to 13 GbpsDigital Logic Systems up to 13 GHz

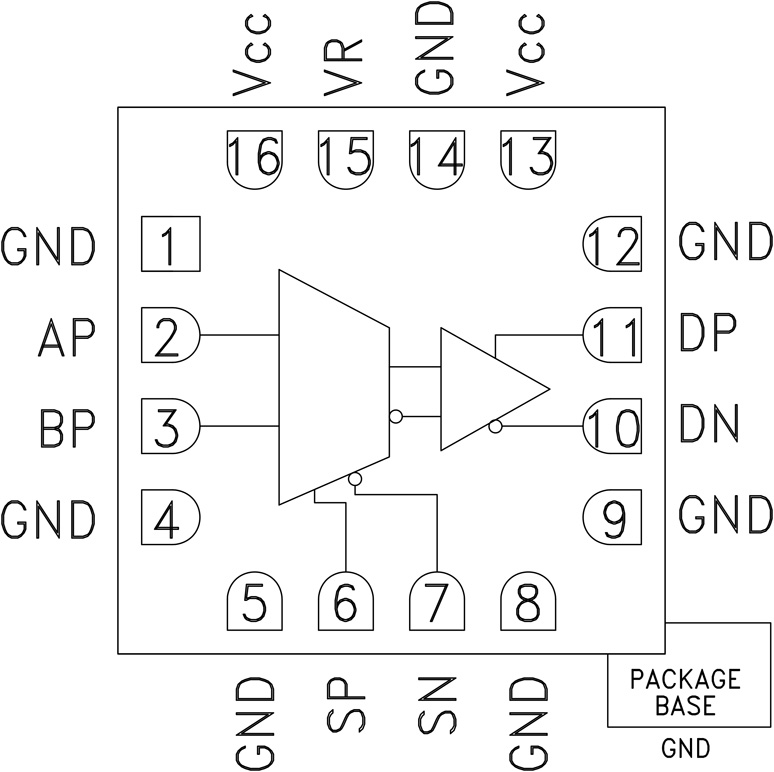

The HMC748 is a 2:1 Selector designed to support data transmission rates of up to 13 Gbps, and selector port operation of up to 13 GHz. The selector routes one of the two single-ended inputs to the differential output upon assertion of the proper select port. The HMC748 also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.All single-ended input signals to the HMC748 are terminated with 50 ohms to VCCon-chip, and may be either AC or DC coupled. The outputs of the HMC748 may be operated either differentially or single-ended. Inputs or outputs can be connected directly to a 50 ohm to VCCterminated system, while DC blocking capacitors may be used if the terminating system is 50 ohms to ground. The HMC748 operates from a single +3.3V DC supply and is housed in a ceramic RoHS compliant 3x3 mm SMT package.APPLICATIONS2:1 Multiplexer up to 13 GbpsRF ATE ApplicationsBroadband Test & MeasurementSerial Data Transmission up to 13 GbpsRedundant Path SwitchingBuilt-in Test

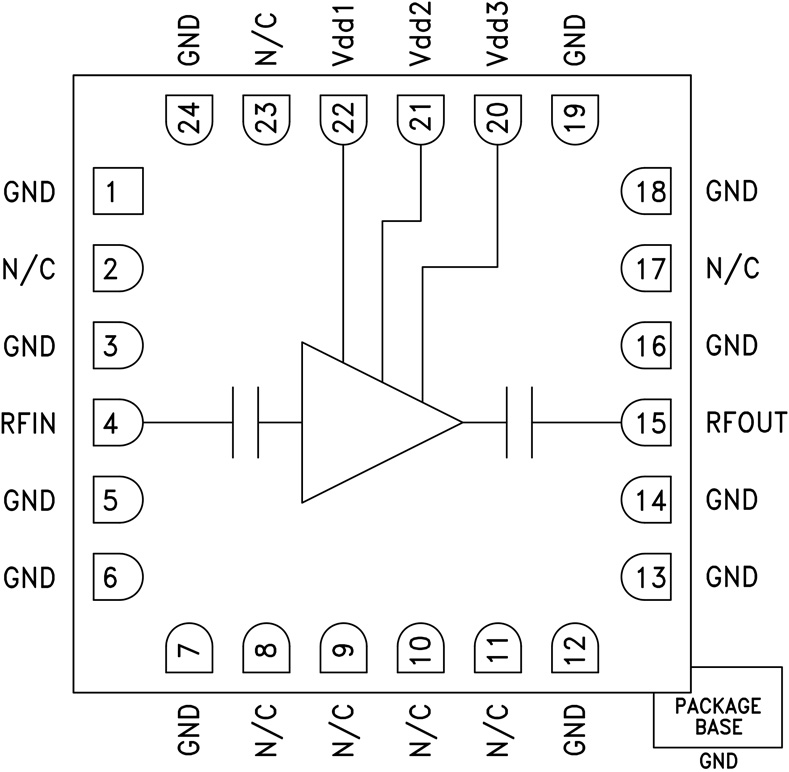

The HMC751LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in a leadless "Pb free" RoHS compliant SMT package. The HMC751LC4 provides 25 dB of small signal gain, 2.2 dB of noise figure and output IP3 of +25 dBm. The P1dB output power of +13 dBm also enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The HMC751LC4 allows the use of surface mount manufacturing techniques.APPLICATIONSPoint-to-Point RadiosPoint-to-Multi-Point Radios & VSATTest Equipment and SensorsMilitary

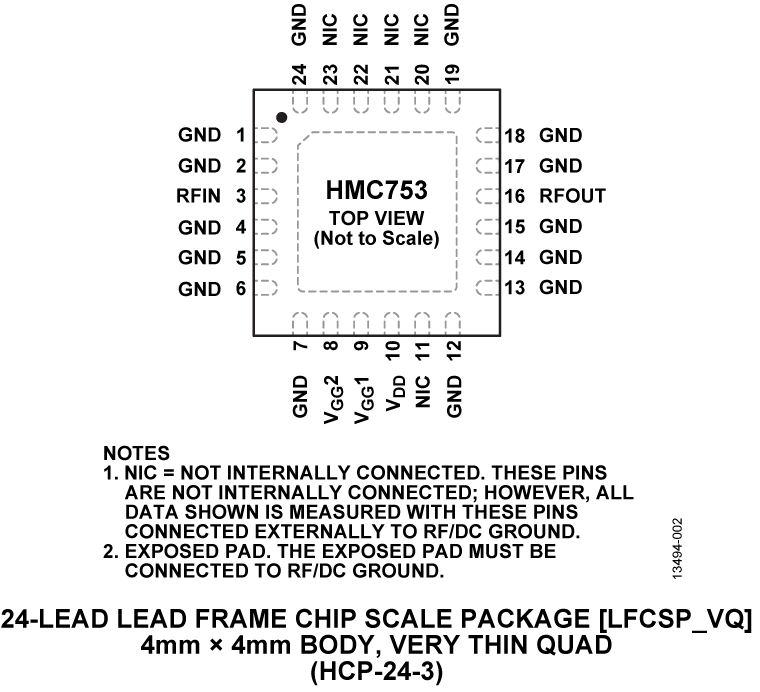

The HMC753 is a GaAs MMIC Low Noise Wideband Amplifier housed in a leadless 4x4 mm plastic surface mount package. The amplifier operates between 1 and 11 GHz, providing up to 16.5 dB of small signal gain, 1.5 dB noise figure, and output IP3 of +30 dBm, while requiring only 55 mA from a +5V supply. The P1dB output power of up to +18 dBm enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The HMC753 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for high capacity microwave radios or VSAT applications. This versatile LNA is also available in die form as the HMC-ALH444.ApplicationsPoint-to-Point RadiosPoint-to-Multi-Point RadiosMilitary & SpaceTest Instrumentation.

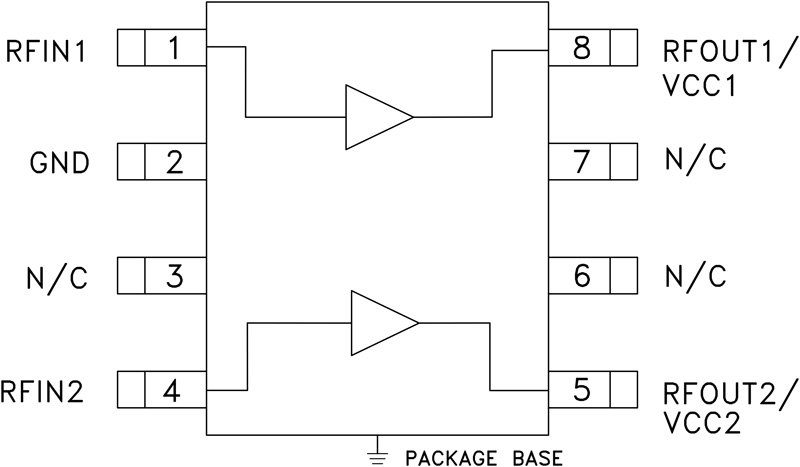

The HMC754S8GE is a GaAs/InGaP HBT Dual Channel Gain Block MMIC SMT amplifier covering DC to 1 GHz. This versatile product contains two gain blocks, packaged in a single 8 lead plastic SOIC-8, for use with both amplifiers combined in push-pull configuration using external baluns to cancel out second order non-linearities and improve IP2 performance. In this configuration, the HMC754S8GE offers high gain, very low distortion & simple external matching. This high linearity amplifier consumes only 160mA from a single positive supply.ApplicationsCATV / Broadband InfrastructureTest & Measurement EquipmentLine Amps & Fiber NodesCustomer Premise Equipment

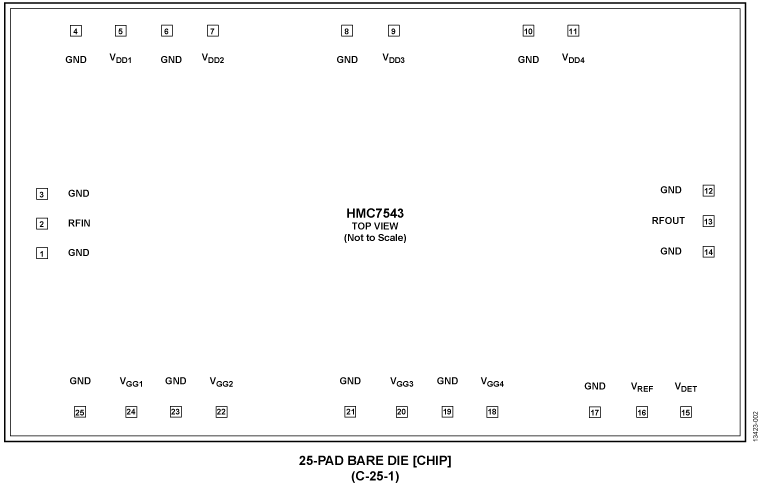

The HMC7543 is an integrated E-band gallium arsenide (GaAs), pseudomorphic (pHEMT), monolithic microwave integrated circuit (MMIC), medium power amplifier with a temperature compensated on-chip power detector that operates from 71 GHz to 76 GHz. The HMC7543 provides 21.5 dB of gain, 25 dBm of output power at 1 dB compression, and 26.5 dBm of saturated output power at 20% power added efficiency (PAE) from a 4 V power supply. The HMC7543 exhibits excellent linearity and is optimized for E-band communications and high capacity wireless backhaul radio systems. The amplifier configuration and high gain make it an excellent candidate for last stage signal amplification before the antenna. All data is taken with the chip in a 50 Ω test fixture connected via a 3 mil wide × 0.5 mil thick × 7 mil long ribbon on each port.ApplicationsE-band communication systemsHigh capacity wireless backhaul radio systemsTest and measurement

The HMC7586 is an integrated E-band gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) in phase/ quadrature (I/Q) downconverter chip that operates from 71 GHz to 76 GHz. The HMC7586 provides a small signal conversion gain of 12.5 dB with 28 dBc of image rejection across the frequency band. The device utilizes a low noise amplifier followed by an image rejection mixer that is driven by a 6× LO multiplier.The image rejection mixer eliminates the need for a filter following the low noise amplifier. Differential I and Q mixer outputs are provided for direct conversion applications. Alternatively, the outputs can be combined using an external 90° hybrid and two external 180° hybrids for single-sideband applications. All data includes the effect of a 1 mil gold wire wedge bond on the IF ports.ApplicationsE-band communication systemsHigh capacity wireless backhaulTest and measurement
