HMC754 Series

GaAs HBT High Linearity Push-Pull Amplifier, 75 Ohm, DC - 1 GHz

Catalog

GaAs HBT High Linearity Push-Pull Amplifier, 75 Ohm, DC - 1 GHz

Part	Frequency [Max]	Package / Case	Package / Case	Package / Case	Gain	Supplier Device Package	P1dB	Mounting Type	RF Type	Current - Supply	Noise Figure	Type	For Use With/Related Products	Supplied Contents
Analog Devices HMC754S8GETR	1 GHz	0.154 in	8-SOIC	3.9 mm	14.7 dB	8-SOIC	21 dBm	Surface Mount	General Purpose	160 mA	6.5 dB

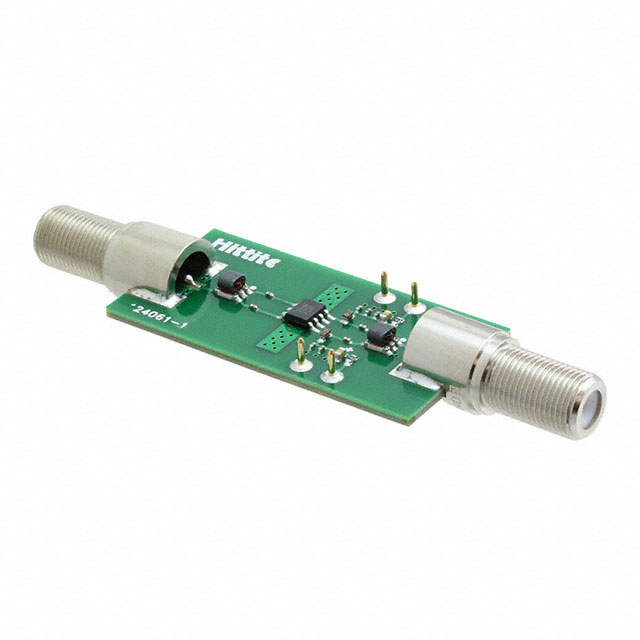

Analog Devices 124063-HMC754S8GE	1 GHz											Amplifier	HMC754S8GE	Board(s)
Analog Devices HMC754S8GE	1 GHz	0.154 in	8-SOIC	3.9 mm	14.7 dB	8-SOIC	21 dBm	Surface Mount	General Purpose	160 mA	6.5 dB

Catalog

GaAs HBT High Linearity Push-Pull Amplifier, 75 Ohm, DC - 1 GHz

Key Features

• Output IP2: +78 dBm

• High Gain: 14.5 dB

• High Output IP3: +38 dBm

• 75 Ohm Impedance

• Single Positive Supply: +5V

• Robust 1000V ESD, Class 1C

• SOIC-8 SMT Package

Description

The HMC754S8GE is a GaAs/InGaP HBT Dual Channel Gain Block MMIC SMT amplifier covering DC to 1 GHz. This versatile product contains two gain blocks, packaged in a single 8 lead plastic SOIC-8, for use with both amplifiers combined in push-pull configuration using external baluns to cancel out second order non-linearities and improve IP2 performance. In this configuration, the HMC754S8GE offers high gain, very low distortion & simple external matching. This high linearity amplifier consumes only 160mA from a single positive supply.ApplicationsCATV / Broadband InfrastructureTest & Measurement EquipmentLine Amps & Fiber NodesCustomer Premise Equipment
