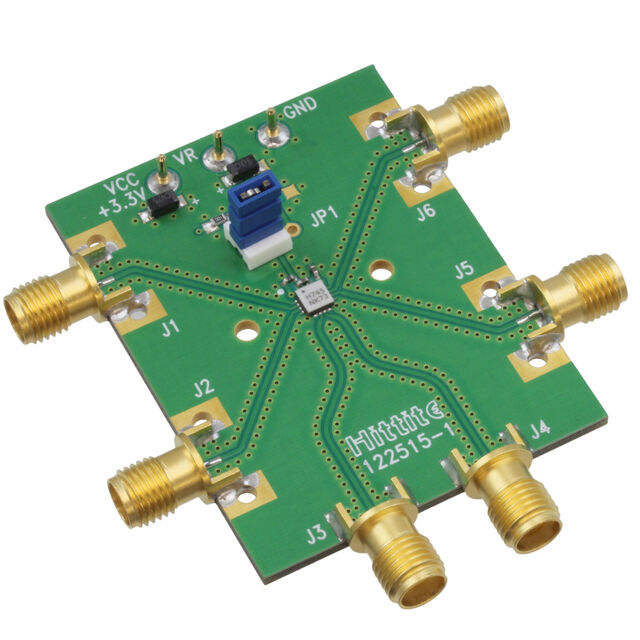

HMC745 Series
13 Gbps, Fast Rise Time XOR/XNOR Gate with Programmable Output Voltage and Positive Supply
Manufacturer: Analog Devices
Catalog
13 Gbps, Fast Rise Time XOR/XNOR Gate with Programmable Output Voltage and Positive Supply
Key Features
• Inputs terminated internally at 50 Ω
• Differential and single-ended operation
• Fast rise and fall times: 21/19 ps
• Low power consumption: 240 mW (typical)
• Programmable DifferentialOutput voltage swing: 600 mV to 1200 mV
• Propagation delay: 95 ps
• Single supply: 3.3 V
• 16-terminal, ceramic 3 mm × 3 mm LCC package
Description
AI
The HMC745 is a XOR/XNOR gate function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC745 also features an output level control pin, VR, which permits loss compensation or signal level optimization.All input and output signals to the HMC745 are terminated with 50 Ω to VCCon-chip, and can be either ac-coupled or dc-coupledInputs or outputs can be connected directly to a 50 Ω VCCterminated system, while dc blocking capacitors may be used if the terminating system is 50 Ω to ground. The HMC745 operates from a single 3.3 V dc supply, and is available in a ceramic, RoHS compliant, 3 mm × 3 mm LCC package.ApplicationsRF automatic test equipment (ATE) applicationsBroadband test and measurementSerial data transmission up to 13 GbpsDigital logic systems up to 13 GHz
