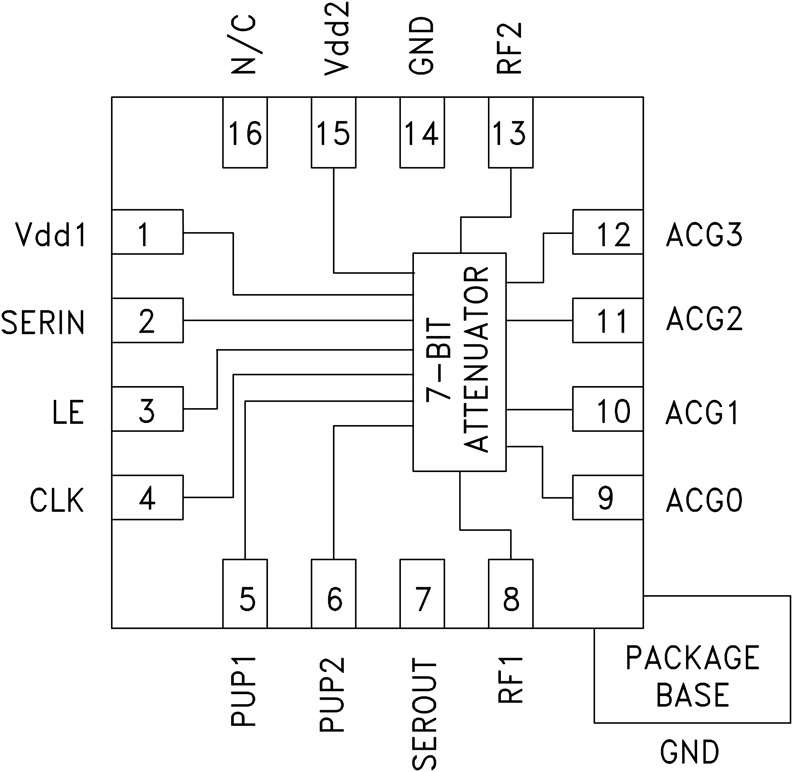

The HMC759LP3E is a 7-bit BiCMOS Digital Attenuator in a low cost leadless SMT package. This versatile digital attenuator incorporates off-chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. The control interface is CMOS/TTL compatible and accepts a three wire serial input. The HMC759LP3E features user selectable power up states and a serial output port for cascading other Hittite serial controlled components. The HMC759LP3E is housed in a RoHS compliant 3×3 mm QFN leadless package, and occupies only 9 mm2.APPLICATIONSCellular/3G InfrastructureWiBro/WiMAX/4GMicrowave Radio & VSATTest Equipment and SensorsIF & RF Applications

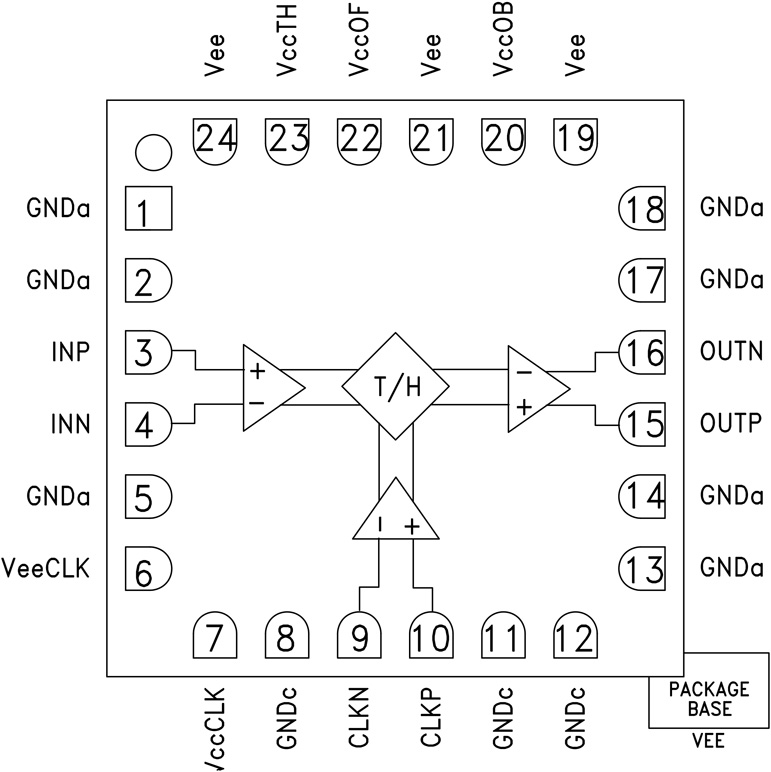

The HMC760LC4B is a SiGe monolithic, fully differential, single rank, track-and-hold (T/H) that provides unprecedented bandwidth and dynamic-range performance to wideband sampled signal systems. The T/H offers precision signal sampling over 5 GHz bandwidth, with 9 to 10-bit linearity from DC to 5 GHz input frequency, 0.9 mV noise, and <70 fs random aperture jitter. The device can be clocked to 4 GS/s with minimal dynamic range loss. The T/H can be used to expand the bandwidth and/or high-frequency linearity of high-speed A/D conversion and signal acquisition systems.APPLICATIONSRF ATE ApplicationsDigital Sampling OscilloscopesRF Demodulation SystemsDigital Receiver SystemsHigh Speed Peak DetectorsSoftware Defined RadioRadar, ECM & ELINT SystemsHigh Speed DAC De-Glitching

The HMC769LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an integrated Voltage Controlled Oscillator (VCO). The input reference frequency range is DC to 350 MHz while the advanced delta-sigma modulator design in the fractional synthesizer allows both ultra-fine step sizes and very low spurious products. The highly integrated structure provides excellent phase noise performance over temperature, shock and process. In addition, the HMC769LP6CE offers frequency sweep and modulation features, external triggering, double-buffering, exact frequency control, phase modulation and more. The HMC769LP6CE is packaged in a leadless QFN 6 x 6 mm surface mount package.For theory of operation and register map refer to the "PLLs w/ Integrated VCO - Microwave VCOs" Operating Guide.ApplicationsVSAT RadioMicrowave Point-To-Point RadiosTest Equipment & Industrial ControlMilitary End-UsePhased Array ApplicationsFMCW Radar Systems

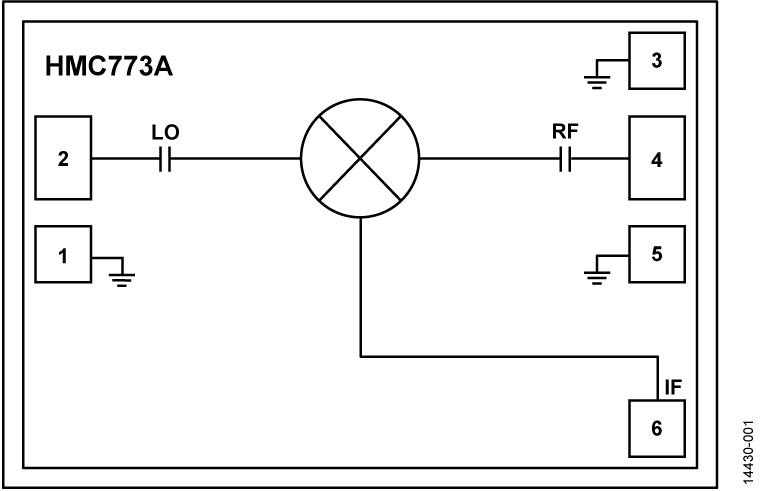

The HMC773 devices are general purpose double-balanced mixers available in a chip (HMC773) and a leadless RoHS compliant SMT package (HMC773LC3B), both of which can be used as an upconverter or downconverter between 6 GHz and 26 GHz. These mixers require no external components or matching circuitry. The HMC773 devices provide excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixers operate with LO drive levels greater than 13 dBm. The HMC773 wideband mixer exhibits consistent conversion gain and compression across its bandwidth. The HMC773LC3B eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosVery small aperture terminal (VSAT)Test equipment and sensorsMilitary end use

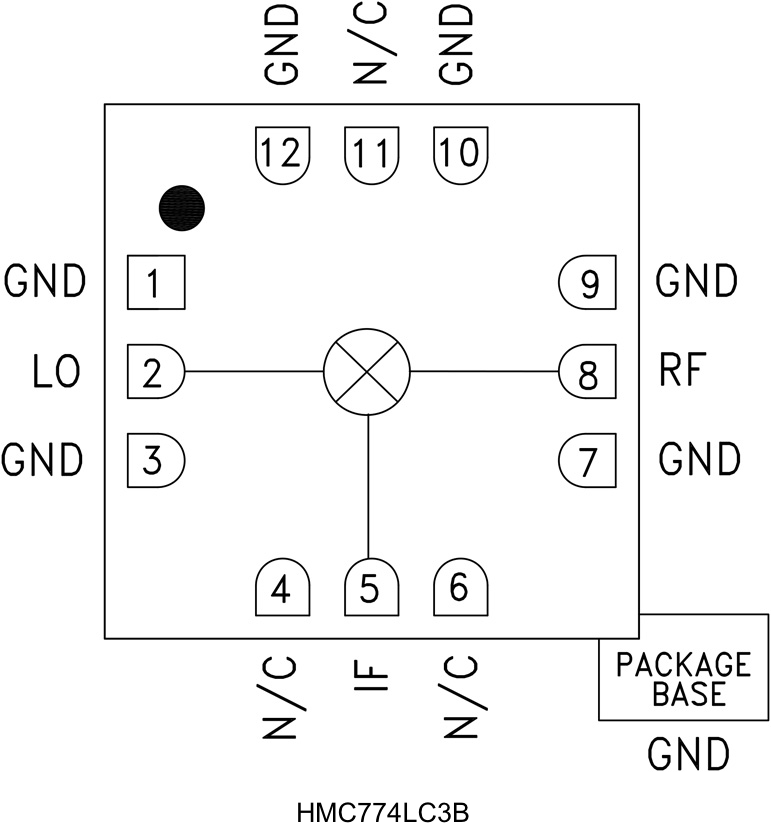

The HMC774 devices are general purpose double-balanced mixers available in a chip (HMC774) and a leadless RoHS compliant SMT package (HMC774LC3B), both of which can be used as an upconverter or downconverter. The HMC774 operates between 7 GHz and 43 GHz, and the HMC774LC3B operates between 7 GHz and 34 GHz. These mixers require no external components or matching circuitry. The HMC774 devices provide excellent LO to RF and LO to IF suppression due to optimized balun structures. The HMC774 operates with LO drive levels greater than 13 dBm, and the HMC774LC3B operates with LO drive levels greater than 15 dBm. The HMC774 wideband mixer exhibits consistent conversion gain and compression across its bandwidth. The HMC774LC3B eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosVery small aperture terminal (VSAT)Test equipment and sensorsMilitary end use

The HMC774A is a general-purpose, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), double balanced mixer chip that can be used as an upconverter or downconverter from 7 GHz to 40 GHz. This mixer requires no external components or matching circuitry.The HMC774A provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun structures. The mixer operates well with LO drive levels of 13 dBm. The HMC774A is also available in surface-mount technology format as the HMC774ALC3B.APPLICATIONSPoint to point radiosPoint to multipoint radios and very small aperture terminals (VSATs)Test equipment and sensorsMilitary end use

The HMC775LC5 is a compact I/Q MMIC mixer in a leadless ceramic SMT package, which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET process. A low frequency quadrature hybrid was used to produce a 1 GHz USB IF output. This product is a much smaller alternative to hybrid style Image Reject Mixers and Single Sideband Upconverter assemblies. The HMC775LC5 eliminates the need for wire bonding and allows the use of surface mount manufacturing techniques.ApplicationsPoint-to-Point and Point-to-Multi-Point RadioDigital RadioVSATMilitary & Space

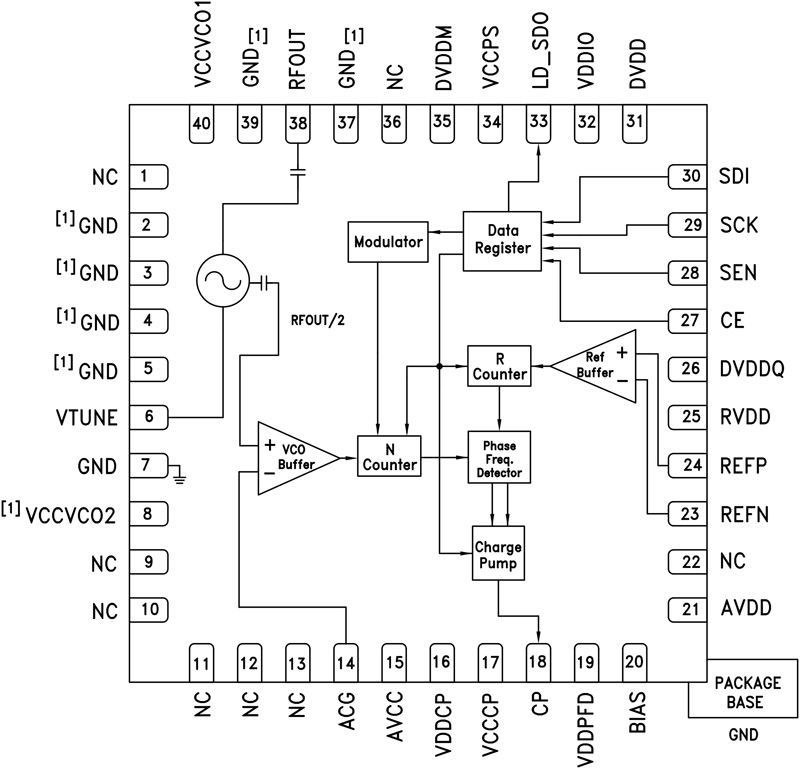

The HMC783LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) with an Integrated Voltage Controlled Oscillator (VCO). The input reference frequency range is 100 kHz to 220 MHz while the advanced delta-sigma modulator design in the fractional PLL allows both ultra-fine step sizes and very low spurious products. The highly integrated structure provides excellent phase noise performance over temperature, shock and process. The HMC783LP6CE is packaged in a leadless QFN 6 x 6 mm surface mount package. The output power is 11 dBm typical, making the HMC783LP6CE ideal for driving the LO port of many of Hittite’s Hi Linearity and I/Q mixer products.For theory of operation and register map refer to the "PLLs w/ Integrated VCO - Microwave VCOs" Operating Guide.ApplicationsVSAT RadioPoint-to-Point / Multi-Point RadioTest Equipment & Industrial ControlMilitary End-UsePhased Array Applications
