The HMC292 devices are passive GaAs MMIC double-balanced mixers that can be used as downconverters or upconverters. They are available in a chip (HMC292), a leadless RoHS compliant SMT package (HMC292LC3B), and an SMT leadless chip carrier package (HMC292LM3C). The HMC292 is used as a downconverter or upconverter in a small chip area of 0.66 mm2. Excellent isolations are provided by on-chip baluns, which require no external components and no dc bias. All data on the HMC292 is measured with the chip in a 50 Ω test fixture connected via 0.076 mm (3 mil) ribbon bonds of minimal length less than 0.31 mm (<12 mils). The HMC292LC3B operates with LO drive levels greater than 9 dBm. All data on the HMC292LM3C is with the nonhermetic, epoxy sealed LM3C packaged device mounted in a 50 Ω test fixture. Utilizing the HMC292LC3B or HMC292LM3C eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.ApplicationsMicrowave point-to-point radiosPoint-to-point radiosPoint-to-multipoint radios and very small aperture terminal (VSAT)Local multipoint distribution systems (LMDS)Satellite communications (SATCOM)Test equipment and sensorsMilitary end use

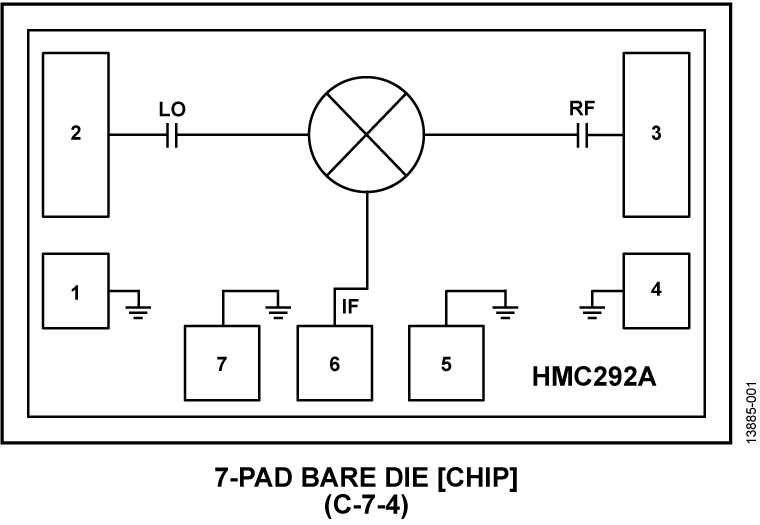

The HMC292A chip is a miniature, passive, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), double balanced mixer that can be used as an upconverter or a downconverter within the 14 GHz to 32 GHz RF frequency range with a small chip area. Excellent isolations are provided by an on-chip balun that requires no external components and no dc bias. All data is measured with the chip in a 50 Ω test fixture connected via 0.076 mm (0.003 inches) ribbon bonds of minimal length <0.31 mm (<0.012 inches).ApplicationsMicrowave and very small aperture terminal (VSAT) radiosTest equipmentPoint to point radiosMilitary electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications and intelligence (C3I)

The HMC304MS8(E) is a passive high IP3 mixer in 8 lead plastic surface mount Mini Small Outline Package (MSOP). This miniature single balanced MMIC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip while not requiring any external components. The RF port is balanced via the MMIC balun while the LO port is connected directly to the diodes. LO isolations are typically 20 to 30 dB. Excellent input IP3 performance of +27 to +32 dBm make the HMC304MS8(E) ideal for high dynamic range applications.ApplicationsPCS & 3G2.4 GHz ISMMMDS

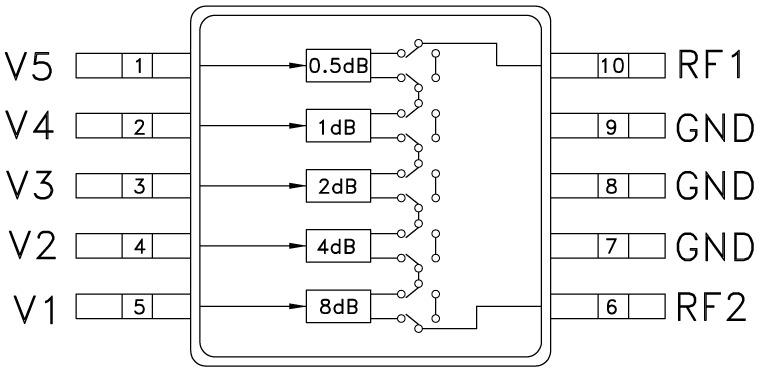

The HMC306AMS10 & HMC306AMS10E are general purpose broadband 5-bit positive control GaAs IC digital attenuators in 10 lead MSOP surface mount plastic packages. Covering 0.7 to 3.8 GHz, the insertion loss is typically less than 1.5 to 2.3 dB. These attenuators’ bit values are 0.5 (LSB), 1, 2, 4 and 8 dB for a total attenuation of 15.5 dB. Attenuation accuracy is excellent at ± 0.2 dB typical with an IIP3 of up to +52 dBm. Five bit control voltage inputs, toggled between 0 and +3 to +5V, are used to select each attenuation state. A single Vdd bias of +3 to +5V applied through an external 5K Ohm resistor is required.APPLICATIONSCellular; UMTS/3G InfrastructureISM, MMDS, WLAN, WiMAXMicrowave Radio & VSATTest Equipment and Sensors

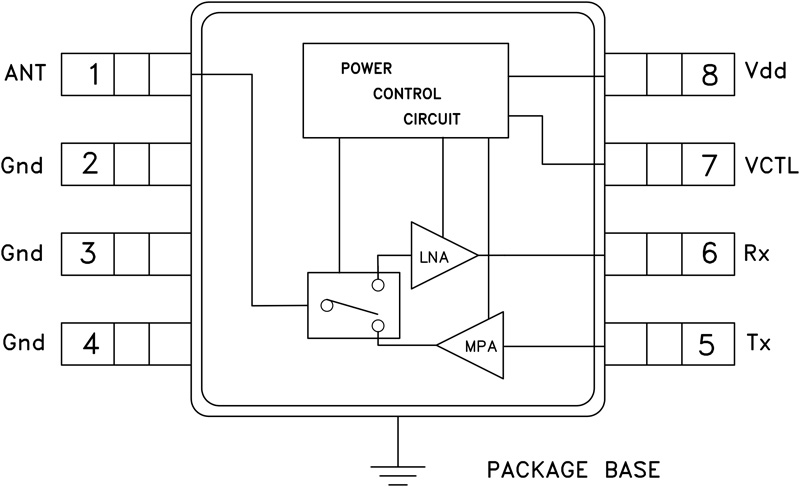

The HMC310MS8G(E) is a multifunction RFIC that incorporates a power amplifier (PA) and low noise amplifier (LNA) with a transmit/ receive switch. These RFICs offer 15 dB gain and +5 dBm P1dB in the transmit mode and 13 dB of gain with an overall noise figure of 3 dB when in receive mode. Transmit and receive performance levels have been selected to meet the BLUETOOTH Class 2 & 3 requirements when used in conjunction with 2.4 GHz ASICs such as National Semiconductor’s LMX3162. This low current and low cost transceiver requires no external circuitry to operate the amplifier power down features, and is available in the industry standard MSOP8G package, which is 0.118" x 0.190" (3.0 x 4.9mm).ApplicationsBluetoothHomeRFWLAN Radios

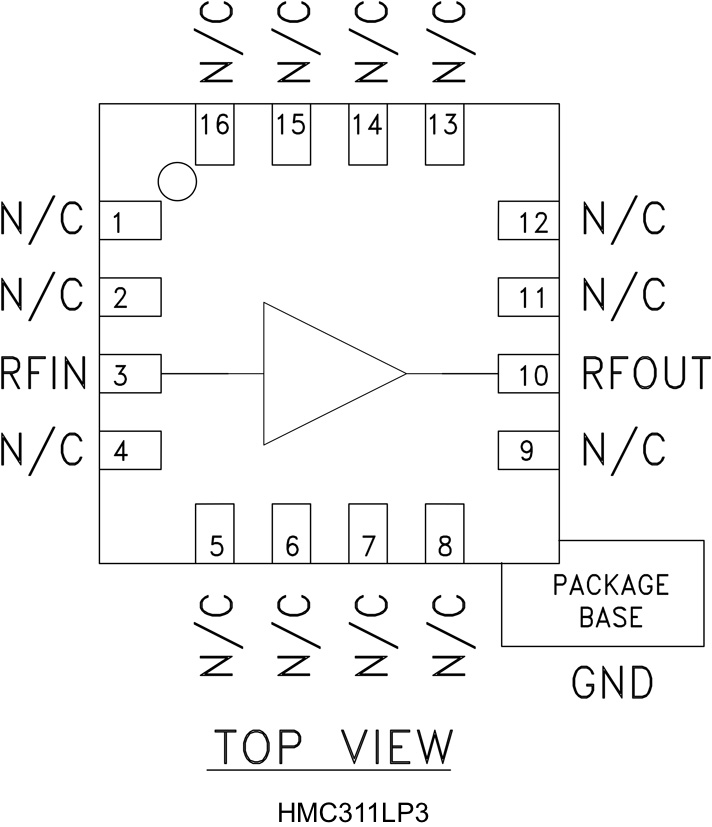

The HMC311LP3(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 6 GHz amplifiers. This 3 × 3mm QFN packaged amplifier can be used as either a cascadable 50 Ω gain stage or to drive the LO of HMC mixers with up to +17 dBm output power. The HMC311LP3(E) offers 14.5 dB of gain and an output IP3 of +32 dBm while requiring only 56 mA from a +5V supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.ApplicationsCellular / PCS / 3GFixed Wireless & WLANCATV & Cable ModemMicrowave Radio The HMC311ST89(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 6 GHz amplifier. Packaged in an industry standard SOT89E, the amplifier can be used as either a cascadable 50 Ohm gain stage or to drive the LO of HMC mixers with up to +16.5 dBm output power. The HMC311ST89(E) offers 16 dB of gain and an output IP3 of +31.5 dBm while requiring only 54 mA from a +5V supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.ApplicationsCellular / PCS / 3GFixed Wireless & WLANCATV & Cable ModemMicrowave Radio The HMC311SC70(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 8 GHz amplifier. Packaged in an industry standard SC70, the amplifier can be used as either a cascadable 50 Ohm gain stage or to drive the LO port of HMC mixers with up to +15 dBm output power. The HMC311SC70(E) offers 15 dB of gain and an output IP3 of +30 dBm while requiring only 54 mA from a +5V supply. The Darlington topology results in reduced sensitivity to normal process variations, and yields excellent gain stability over temperature while requiring a minimal number of external bias components.ApplicationsCellular / PCS / 3GWiBro / WiMAX / 4GFixed Wireless & WLANCATV, Cable Modem & DBSMicrowave Radio & Test Equipment

The HMC313(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC amplifier that operates from a single Vcc supply. The surface mount SOT26 amplifier can be used as a broadband gain stage or used with external matching for optimized narrow band applications. With Vcc biased at +5V, the HMC313(E) offers 17 dB of gain and +15 dBm of saturated power while only requiring 50 mA of current. The "HMC313 Biasing and Impedance Matching Techniques" application note available within the "Application Notes" section offers recommendations for narrow band operation.Applications2.2 - 2.7 GHz MMDS3.5 GHz Wireless Local Loop5 - 6 GHz UNII & HiperLAN

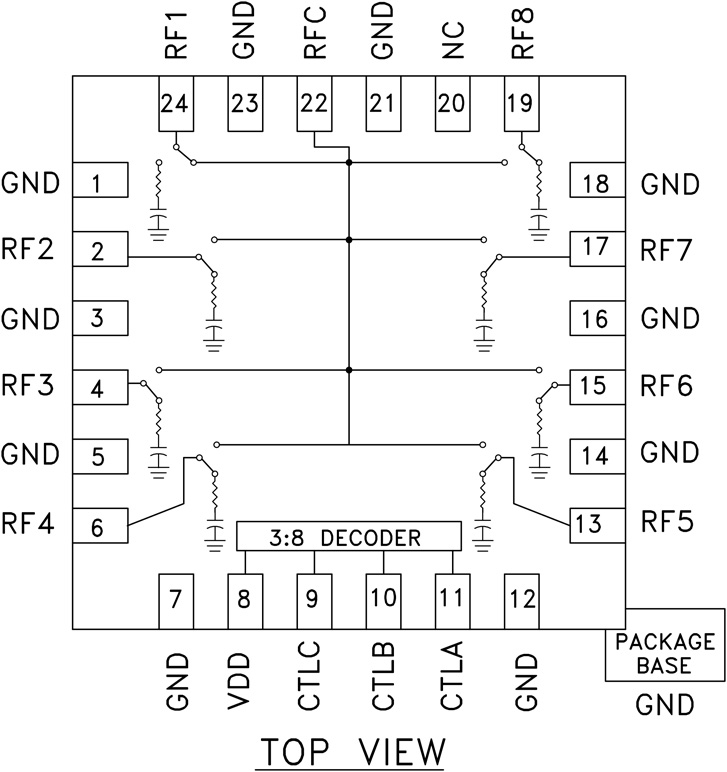

The HMC321LP4(E) is a broadband non- reflective GaAs MESFET SP8T switch in low cost leadless surface mount package. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss. This switch also includes an on board binary decoder circuit which reduces the required logic control lines to three. The switch operates using a positive control voltage of 0/ +5V, and requires a fixed bias of +5V. This switch is suitable for usage in 50-Ohm or 75-Ohm systems.* DC blocking capacitors are required at ports RFC and RF1, 2, 3, 4, 5, 6, 7, 8. Their value will determine the lowest transmission frequency.ApplicationsBroadbandFiber OpticsSwitched Filter BanksWireless below 8 GHz
