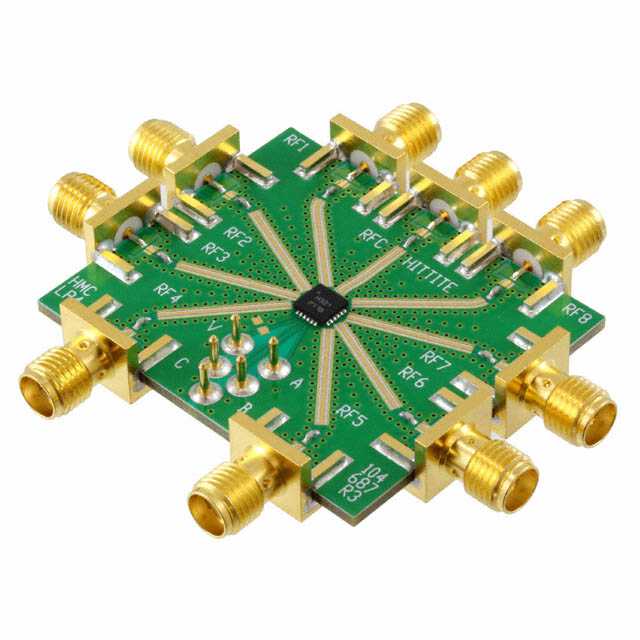

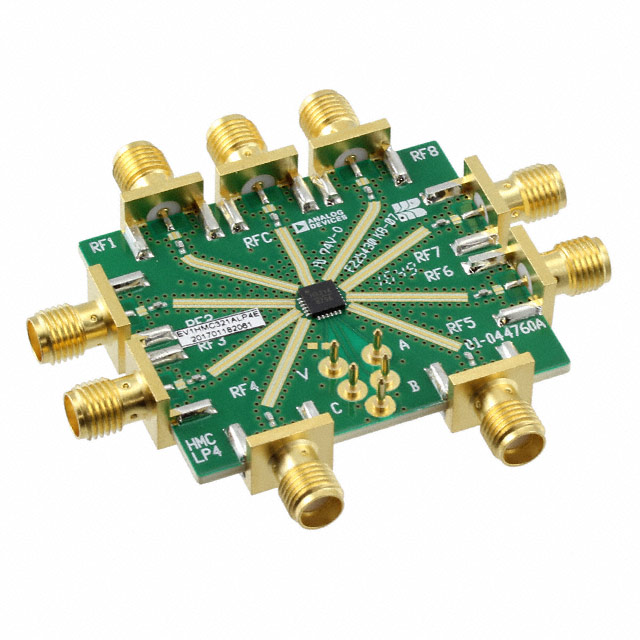

SP8T Positive Control Switch SMT, DC - 8 GHz
Key Features
• Broadband Performance: DC - 8 GHz
• High Isolation: >30 dB@ 6 GHz
• Low Insertion Loss: 2.5 dB@ 6 GHz
• Integrated Positve Supply 3:8 TTL Decoder
• 4x4 mm SMT Package
Description
AI
The HMC321LP4(E) is a broadband non- reflective GaAs MESFET SP8T switch in low cost leadless surface mount package. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss. This switch also includes an on board binary decoder circuit which reduces the required logic control lines to three. The switch operates using a positive control voltage of 0/ +5V, and requires a fixed bias of +5V. This switch is suitable for usage in 50-Ohm or 75-Ohm systems.* DC blocking capacitors are required at ports RFC and RF1, 2, 3, 4, 5, 6, 7, 8. Their value will determine the lowest transmission frequency.ApplicationsBroadbandFiber OpticsSwitched Filter BanksWireless below 8 GHz
