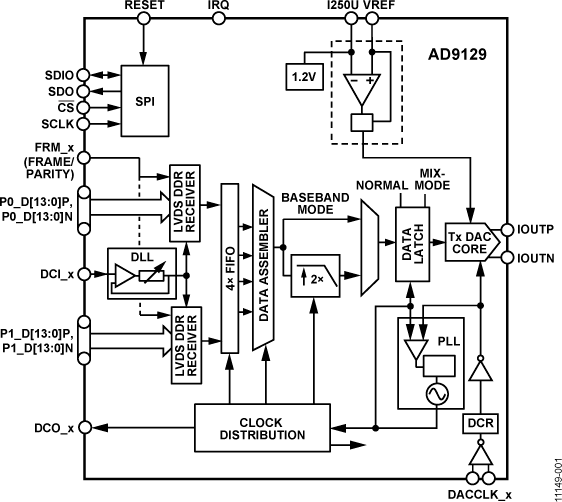

TheAD9119/AD9129 are high performance, 11-/14-bit RF digital-to-analog converters (DACs) supporting data rates up to 2.85 GSPS. The DAC core is based on a quad-switch architecture that enables dual-edge clocking operation, effectively increasing the DAC update rate to 5.7 GSPS when configured for Mix-Mode™ or 2× interpolation. The high dynamic range and bandwidth enable multicarrier generation up to 4.2 GHz.In baseband mode, wide bandwidth capability combines with high dynamic range to support from 1 to 158 contiguous carriers for CATV infrastructure applications. A choice of two optional 2× interpolation filters is available to simplify the postreconstruction filter by effectively increasing the DAC update rate by a factor of 2. In Mix-Mode operation, the AD9119/AD9129 can reconstruct RF carriers in the second and third Nyquist zone while still maintaining exceptional dynamic range up to 4.2 GHz. The high performance NMOS DAC core features a quad-switch architecture that enables industry-leading direct RF synthesis performance with minimal loss in output power. The output current can be programmed over a range of 9.5 mA to 34.4 mA.The AD9119/AD9129 include several features that may further simplify system integration. A dual-port, source synchronous LVDS interface simplifies the data interface to a host FPGA/ASIC. A differential frame/parity bit is also included to monitor the integrity of the interface. On-chip delay locked loops (DLLs) optimize timing between different clock domains.A serial peripheral interface (SPI) configures the AD9119/ AD9129 and monitors the status of readback registers. The AD9119/AD9129 are manufactured on a 0.18 μm CMOS process and operates from +1.8 V and −1.5 V supplies. It is supplied in a 160-ball chip scale package ball grid array.Product HighlightsHigh dynamic range and signal reconstruction bandwidth support RF signal synthesis of up to 4.2 GHz.Dual-port interface with double data rate (DDR) LVDS data receivers supports 2850 MSPS maximum conversion rate.Manufactured on a CMOS process; a proprietary switching technique enhances dynamic performance.ApplicationsBroadband communications systemsCMTS/VODWireless infrastructure: W-CDMA, LTE, point-to-pointInstrumentation, automatic test equipment (ATE)Radar, jammers

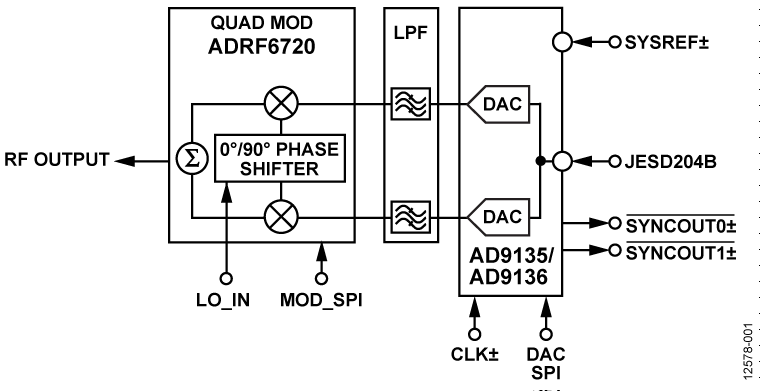

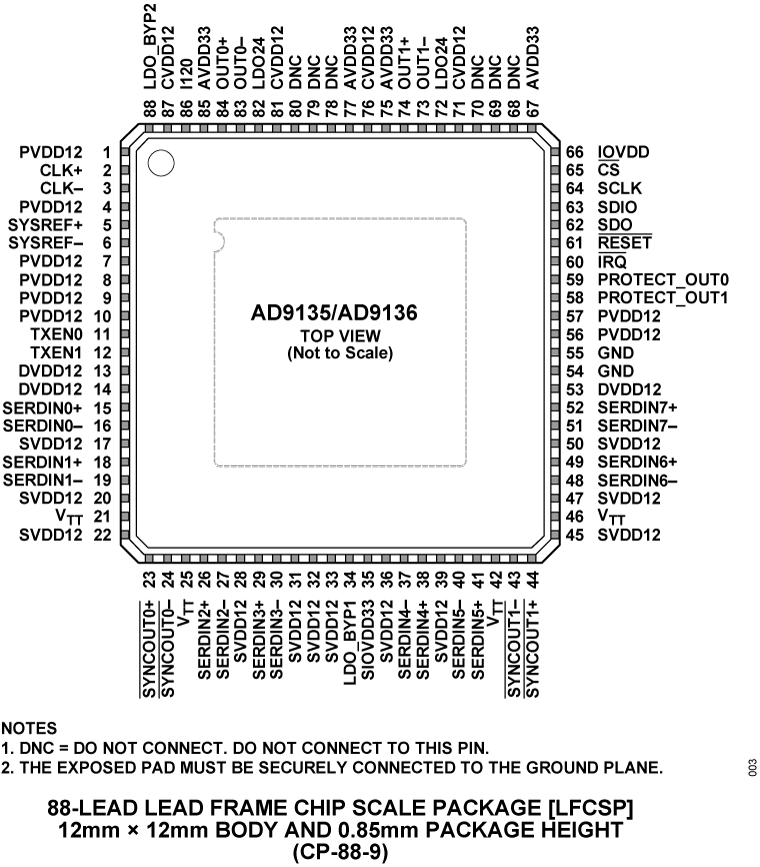

The AD9135/AD9136are dual, 11-/16-bit, high dynamic range digital-to-analog converters (DACs) that provide a maximum sample rate of 2800 MSPS, permitting a multicarrier generation over a very wide bandwidth. The DAC outputs are optimized to interface seamlessly with theADRF6720, as well as other analog quadrature modulators (AQMs) from Analog Devices, Inc. An optional 3-wire or 4-wire serial port interface (SPI) provides for programming/readback of many internal parameters. The full-scale output current can be programmed over a typical range of 13.9 mA to 27.0 mA. The AD9135/AD9136 are available in an 88-lead LFCSP.Product HighlightsGreater than 2 GHz, ultrawide complex signal bandwidth enables emerging wideband and multiband wireless applications.Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.JESD204B Subclass 1 support simplifies multichip synchronization in software and hardware design.Fewer pins for data interface width with a serializer/deserializer (SERDES) JESD204B eight-lane interface.Programmable transmit enable function allows easy design balance between power consumption and wake-up time.Small package size with 12 mm × 12 mm footprint.ApplicationsWireless communications3G/4G W-CDMA base stationsWideband repeatersSoftware defined radiosWideband communicationsPoint to pointLocal multipoint distribution service (LMDS) and multichannel multipoint distribution service (MMDS)Transmit diversity, multiple input/multiple output (MIMO)InstrumentationAutomated test equipment

TheAD9135/AD9136 are dual, 11-/16-bit, high dynamic range digital-to-analog converters (DACs) that provide a maximum sample rate of 2800 MSPS, permitting a multicarrier generation over a very wide bandwidth. The DAC outputs are optimized to interface seamlessly with theADRF6720, as well as other analog quadrature modulators (AQMs) from Analog Devices, Inc. An optional 3-wire or 4-wire serial port interface (SPI) provides for programming/readback of many internal parameters. The full-scale output current can be programmed over a typical range of 13.9 mA to 27.0 mA. The AD9135/AD9136 are available in an 88-lead LFCSP.Product HighlightsGreater than 2 GHz, ultrawide complex signal bandwidth enables emerging wideband and multiband wireless applications.Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.JESD204B Subclass 1 support simplifies multichip synchronization in software and hardware design.Fewer pins for data interface width with a serializer/deserializer (SERDES) JESD204B eight-lane interface.Programmable transmit enable function allows easy design balance between power consumption and wake-up time.Small package size with 12 mm × 12 mm footprint.ApplicationsWireless communications3G/4G W-CDMA base stationsWideband repeatersSoftware defined radiosWideband communicationsPoint to pointLocal multipoint distribution service (LMDS) and multichannel multipoint distribution service (MMDS)Transmit diversity, multiple input/multiple output (MIMO)InstrumentationAutomated test equipment

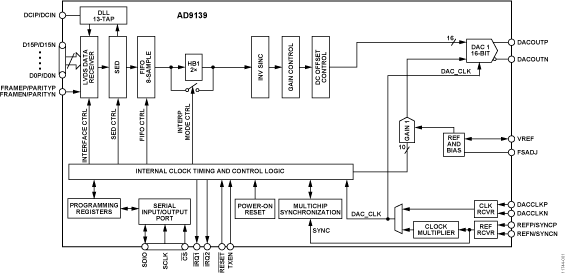

The AD9139 is a 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum update rate of 1600 MSPS, permitting multicarrier generation up to the Nyquist frequency. The AD9139 TxDAC+®includes features optimized for wide band communications applications, including 1× and 2× interpolation, a DLL based high speed interface, sample error detection, and parity detection. A 3-wire serial port interface provides for the programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 9 mA up to 33 mA. The AD9139 is available in a 72-lead LFCSP.Product Highlights575 MHz achievable input signal bandwidth.Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.Very small inherent latency variation simplifies both software and hardware design in the system. It allows easy multichip synchronization for most applications.Low power architecture improves power efficiency.ApplicationsWireless communications: 3G/4G and MC-GSM base stations, wideband repeaters, software defined radiosWideband communications: point-to-point, LMDS/MMDSTransmit diversity/MIMOInstrumentationAutomated test equipment

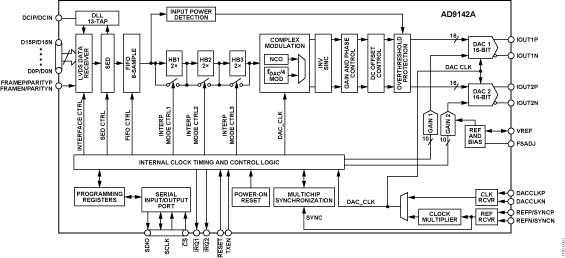

The AD9142A is a dual, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a sample rate of 1600 MSPS, permitting a multicarrier generation up to the Nyquist frequency. The AD9142A TxDAC+®includes features optimized for direct conversion transmit applications, including complex digital modulation, input signal power detection, and gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators, such as the ADL537x F-MOD series and the ADRF670x series from Analog Devices, Inc. A 3-wire serial port interface provides for the programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 9 mA to 33 mA. The AD9142A is available in a 72-lead LFCSP.PRODUCT HIGHLIGHTSWide signal bandwidth (BW) enables emerging wideband and multiband wireless applications.Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.Very small inherent latency variation simplifies both software and hardware design in the system. It allows easy multichip synchronization for most applications.New low power architecture improves power efficiency (mW/MHz/channel) by 30%.Input signal power and FIFO error detection simplify designs for downstream analog circuitry protection.Programmable transmit enable function allows easy design balance between power consumption and wakeup time.APPLICATIONSWireless communications: 3G/4G and MC-GSM base stations,wideband repeaters, software defined radiosWideband communications: point-to-point, LMDS/MMDSTransmit diversity/MIMOInstrumentationAutomated test equipment

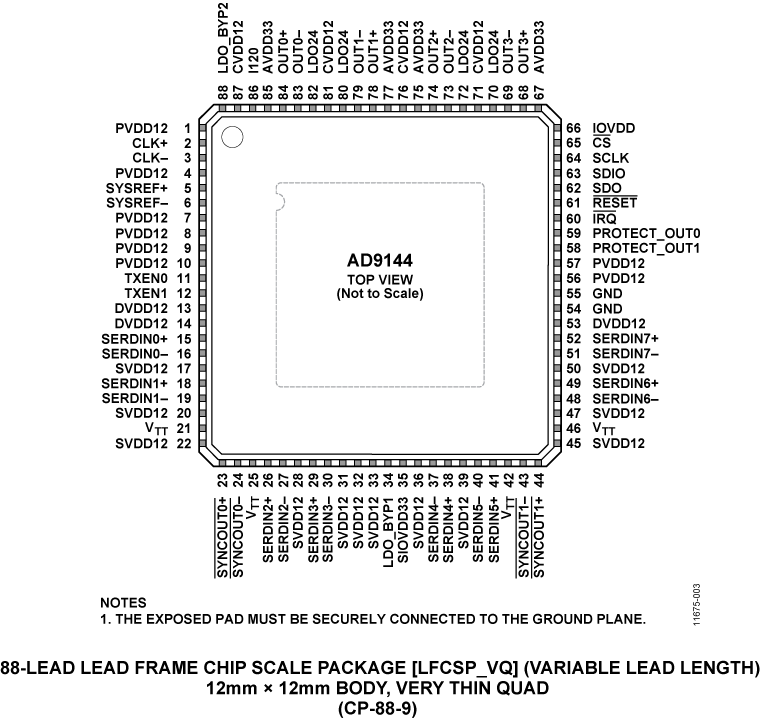

The AD9144 is a quad, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum sample rate of 2.8 GSPS, permitting a multicarrier generation up to the Nyquist frequency. The DAC outputs are optimized to interface seamlessly with theADRF6720analog quadrature modulator (AQM) from Analog Devices, Inc. An optional 3-wire or 4-wire serial port interface (SPI) provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a typical range of 13.9 mA to 27.0 mA. The AD9144 is available in an 88-lead LFCSP.Product HighlightsGreater than 1 GHz, ultrawide complex signal bandwidth enables emerging wideband and multiband wireless applications.Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.JESD204B Subclass 1 support simplifies multichip synchronization in software and hardware design.Fewer pins for data interface width with a serializer/deserializer (SERDES) JESD204B eight-lane interface.Programmable transmit enable function allows easy design balance between power consumption and wake-up time.Small package size with 12 mm × 12 mm footprint.ApplicationsWireless communications3G/4G W-CDMA base stationsWideband repeatersSoftware defined radiosWideband communicationsPoint-to-pointLocal multipoint distribution service (LMDS) and multichannel multipoint distribution service (MMDS)Transmit diversity, multiple input/multiple output (MIMO)InstrumentationAutomated test equipment

The AD9148 is a quad, 16-bit, high dynamic range, digital-to-analog converter (DAC) that provides a sample rate of 1000 MSPS. These devices include features optimized for direct conversion transmit applications, including gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as theADL5371/ADL5372/ADL5373/ADL5374/ADL5375. A serial peripheral interface (SPI) is provided for programming of the internal device parameters. Full-scale output current can be programmed over a range of 10 mA to 30 mA. The devices operate from 1.8 V and 3.3 V supplies for a total power consumption of 3 W at the maximum sample rate. They are enclosed in 196-ball chip scale package ball grid array with the option of an attached heat spreader.PRODUCT HIGHLIGHTSLow noise and intermodulation distortion (IMD) enable high quality synthesis of wideband signals from baseband to high intermediate frequencies.A proprietary DAC output switching technique enhances dynamic performance.The current outputs are easily configured for various single-ended or differential circuit topologies.The LVDS data input interface includes FIFO to ease input timing.APPLICATIONSWireless infrastructureLTE, TD-SCDMA, WiMAX, W-CDMA, CDMA2000, GSMMIMO/transmit diversityDigital high or low IF synthesis
