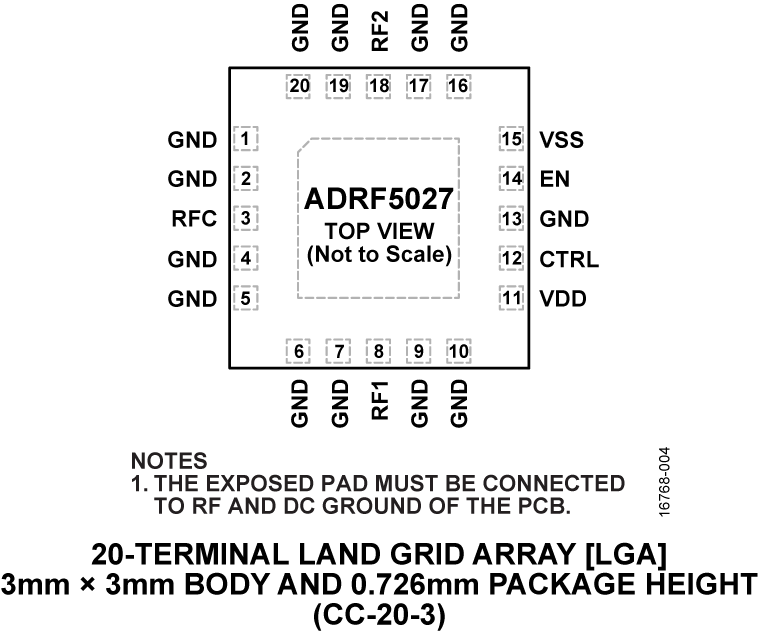

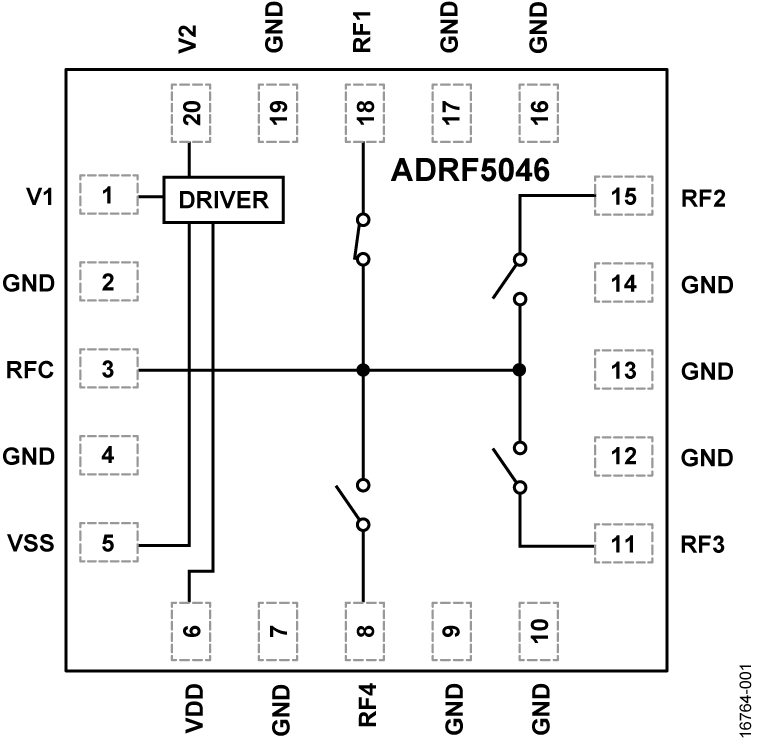

ADRF5027Silicon SPDT Switch, Nonreflective, 9 kHz to 44 GHz | RF Switches | 2 | Active | The ADRF5027 is a nonreflective, single-pole, double-throw (SPDT) radio frequency (RF) switch manufactured in a silicon process.The ADRF5027 operates from 9 kHz to 44 GHz with better than 3.8 dB of insertion loss and 43 dB of isolation. The ADRF5027 features an all off control, where both RF ports are in an isolation state. The ADRF5027 has a nonreflective design and both of the RF ports are internally terminated to 50 Ω.The ADRF5027 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor/low-voltage transistor-transistor logic (CMOS/LVTTL) logic-compatible controls.The ADRF5027 is pin compatible with theADRF5026fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5027 RF ports are designed to match a characteristic impedance of 50 Ω. For ultrawideband products, impedance matching on the RF transmission lines can further optimize high frequency insertion loss and return loss characteristics. Refer to the Narrow-Band Impedance Matching section for an example of a matched circuit that achieves a low insertion loss response of 2.2 dB from 28 GHz to 43 GHz.The ADRF5027 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial scannersTest and instrumentationCellular infrastructure: 5G mmWaveMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
ADRF5030100 MHz to 20 GHz, Non-Reflective, Silicon SPDT Switch | RF and Wireless | 1 | Active | The ADRF5030 is a non-reflective, single-pole double-throw (SPDT) switch manufactured using the silicon on insulator (SOI) process. The ADRF5030 operates from 100 MHz to 20 GHz with insertion loss of lower than 1.2 dB and isolation of higher than 45 dB. The device has an RF input power handling capability of 33 dBm average/36 dBm peak for both RFC and RFx through paths, termination paths, and hot switching for both RFC and RFx ports. The ADRF5030 operates with dual-supply voltages of ±3.3 V. The ADRF5030 employs complementary metal-oxide semiconductor (CMOS) and low-voltage transistor to transistor logic (LVTTL)-compatible control.The ADRF5030 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance are derated. See Table 2 for more details.The ADRF5030 is pin compatible with the ADRF5022 and ADRF5026, and also pin compatible with ADRF5031, a slow-switching, low cut-off version, which operates between 9 kHz to 20 GHz.The ADRF5030 is packaged in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA). The ADRF5030 operates from −40°C to +105°C.APPLICATIONSTest instrumentationMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
ADRF50321 GHz to 60 GHz, Reflective, Silicon SPDT Switch | RF Switches | 2 | Active | The ADRF5032 is a reflective, single-pole double-throw (SPDT) switch manufactured using the silicon process. The ADRF5032 operates from 1 GHz to 60 GHz with insertion loss of lower than 2.0 dB and isolation of higher than 32 dB. The device has an RF input power handling capability of 24 dBm for both through paths and 21 dBm for hot switching. The ADRF5032 requires dual-supply voltages of ±3.3 V. The ADRF5032 employs CMOS and low-voltage transistor to transistor logic (LVTTL)-compatible control.The ADRF5032 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance are derated. See Table 2 in the data sheet for more details.The ADRF5032 is packaged in a 12-terminal, 2.5 mm × 2.5 mm, RoHS-compliant, land grid array (LGA). The ADRF5032 operates from −40°C to +105°C.APPLICATIONSIndustrial scannersTest and instrumentationCellular infrastructure: 5G mmWaveMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
ADRF5042Nonreflective, 100 MHz to 44 GHz Silicon SP4T Switch | RF Switches | 2 | Active | The ADRF5042 is a nonreflective SP4T switch manufactured in the silicon on insulator (SOI) process.The ADRF5042 operates from 100 MHz to 44 GHz with an insertion loss of lower than 3.2 dB and an isolation of higher than 35 dB. The device has a RF input power handling capability of 24 dBm for both through and terminated paths.The ADRF5042 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.The ADRF5042 has enable and logic select controls to feature all off state and port mirroring, respectively.The ADRF5042 is pin compatible with the ADRF5043 low frequency cutoff version, which operates from 9 kHz to 44 GHz.The ADRF5042 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial ScannersTest instrumentationCellular infrastructure—millimeterwave (mmWave) 5GMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
ADRF5043Nonreflective, 9 kHz to 44 GHz Silicon SP4T Switch | RF Switches | 2 | Active | The ADRF5043 is a nonreflective, SP4T switch manufactured in the silicon on insulator (SOI) process.The ADRF5043 operates from 9 kHz to 44 GHz with an insertion loss of lower than 2.5 dB and an isolation of higher than 36 dB. The device has a RF input power handling capability of 24 dBm for both through and terminated paths.The ADRF5043 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.The ADRF5043 has enable and logic select controls to feature all off state and port mirroring, respectively.The ADRF5043 is pin compatible with the ADRF5042 fast switching version, which operates from 100 MHz to 44 GHz.The ADRF5043 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.ApplicationsIndustrial ScannersTest instrumentationCellular infrastructure—millimeterwave (mmWave) 5GMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
ADRF5044100 MHz to 30 GHz, Silicon, SP4T Switch | RF, RFID, Wireless Evaluation Boards | 3 | Active | The ADRF5044 is a general-purpose, single-pole, four-throw (SP4T) switch manufactured using a silicon process. It comes in a 24-terminal land grid array (LGA) package and provides high isolation and low insertion loss from 100 MHz to 30 GHz.This broadband switch requires dual-supply voltages, +3.3 V and −3.3 V, and provides complementary metal-oxide semiconductor (CMOS)/low voltage transistor-transistor logic (LVTTL) logic-compatible control.ApplicationsTest instrumentationMicrowave radios and very small aperture terminals (VSATs)Military radios, radars, and electronic counter measures (ECMs)Broadband telecommunications systems |
| RF Switches | 3 | Active | |
| RF and Wireless | 3 | Active | |
| RF Switches | 3 | Active | |
ADRF5048Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz | Development Boards, Kits, Programmers | 3 | Active | The ADRF5048 is a nonreflective SP4T switch manufactured in the silicon on insulator (SOI) process.This device operates from 100 MHz to 45 GHz with an insertion loss lower than 4.0 dB and isolation higher than 35 dB. The ADRF5048 has an RF input power handling capability of 30 dBm through path, 18 dBm terminated path, and 30 dBm hot switching at the RF common port.The ADRF5048 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL) logic-compatible controls.The ADRF5048 has enable and logic select controls to feature all off state and mirror port selection, respectively.The ADRF5048 is pin compatible with the ADRF5049, ADRF5042 and ADRF5043.The ADRF5048 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.APPLICATIONSIndustrial scannersTest instrumentationCellular infrastructure—mmWave 5GMilitary radios, radars, and electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs) |
