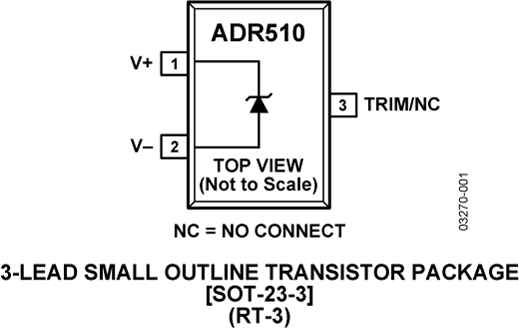

ADR4540Ultra-Low-Noise, High-Accuracy 4.096V Voltage Reference | PMIC | 8 | Active | TheADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 series of references are each provided in an 8-lead SOIC and are available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.The ADR4525, ADR4540, and ADR4550 are also available in D, which are in 8 lead LCC package, and C grade with a temperature range of 0°C to 70°C. The ADR4525W, available in an 8‑lead SOIC package, is qualified for automotive applications.APPLICATIONSPrecision data acquisition systemsHigh resolution data convertersHigh precision measurement devicesIndustrial instrumentationMedical devicesAutomotive battery monitoring |
ADR4550Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference | PMIC | 8 | Active | TheADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 series of references are each provided in an 8-lead SOIC and are available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.The ADR4525, ADR4540, and ADR4550 are also available in D, which are in 8 lead LCC package, and C grade with a temperature range of 0°C to 70°C. The ADR4525W, available in an 8‑lead SOIC package, is qualified for automotive applications.APPLICATIONSPrecision data acquisition systemsHigh resolution data convertersHigh precision measurement devicesIndustrial instrumentationMedical devicesAutomotive battery monitoring |
| Voltage Reference | 11 | Active | |
| Voltage Reference | 12 | Active | |
ADR5043Precision Micropower Shunt Mode Voltage Reference Applications (3.0 Vout) | Voltage Reference | 5 | Active | Designed for space-critical applications, theADR5040/ADR5041/ ADR5043 /ADR5044/ADR5045are high precision shunt voltage references, housed in ultrasmall SC70 and SOT-23 packages. These voltage references are multipurpose, easy-to-use references that can be used in a vast array of applications. They feature low temperature drift, an initial accuracy of better than 0.1%, and fast settling time.Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and 5.0 V, the advanced design of the ADR5040 / ADR5041 / ADR5043 / ADR5044 / ADR5045 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from 50 µA to a maximum of 15 mA. This low operating current and ease of use make these references ideally suited for handheld, battery-powered applications. This family of references has been characterized over the extended temperature range of −40°C to +125°C. The ADR5041W and the ADR5044W are qualified for automotive applications and are available in a 3-lead SOT-23 package.ApplicationsPortable, battery-powered equipmentAutomotivesPower suppliesData acquisition systemsInstrumentation and process controlEnergy management |
ADR5044Precision Micropower Shunt Mode Voltage Reference Applications (4.096 Vout) | Integrated Circuits (ICs) | 8 | Active | Designed for space-critical applications, theADR5040/ADR5041/ADR5043/ ADR5044 /ADR5045are high precision shunt voltage references, housed in ultrasmall SC70 and SOT-23 packages. These voltage references are multipurpose, easy-to-use references that can be used in a vast array of applications. They feature low temperature drift, an initial accuracy of better than 0.1%, and fast settling time.Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and 5.0 V, the advanced design of the ADR5040 / ADR5041 / ADR5043 / ADR5044 / ADR5045 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from 50 µA to a maximum of 15 mA. This low operating current and ease of use make these references ideally suited for handheld, battery-powered applications. This family of references has been characterized over the extended temperature range of −40°C to +125°C. The ADR5041W and the ADR5044W are qualified for automotive applications and are available in a 3-lead SOT-23 package.ApplicationsPortable, battery-powered equipmentAutomotivesPower suppliesData acquisition systemsInstrumentation and process controlEnergy management |
| Power Management (PMIC) | 8 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |
ADR5121.2 V Precision Low Noise Shunt Voltage Reference | Power Management (PMIC) | 3 | Active | Designed for space critical applications, the ADR512 is a low voltage (1.200 V), precision shunt-mode voltage reference in the ultracompact (3 mm x 3 mm) SOT-23 package. The ADR512 features low temperature drift (60 ppm/ºC), high accuracy (±0.30%), and ultralow noise (4 µV p-p) performance.The ADR512's advanced design eliminates the need for an external capacitor, yet it is stable with any capacitive load. The minimum operating current increases from a scant 100 µA to a maximum of 10 mA. This low operating current and ease of use make the ADR512 ideally suited for handheld battery-powered applications.A TRIM terminal is available on the ADR512 to provide adjustment of the output voltage over ±0.5% without affecting the temperature coefficient of the device. This feature provides users with the flexibility to trim out any system errors.APPLICATIONSPrecision Data Acquisition SystemsBattery-Powered Equipment:Cellular Phone, Notebook Computer, PDA, and GPS3 V/5 V, 8-/12-Bit Data ConvertersPortable Medical InstrumentsIndustrial Process Control SystemsPrecision Instruments |
| Integrated Circuits (ICs) | 7 | Active | |
