ADRF5046 Series

Catalog

ADRF5046 RF SWITCH EVALUATION BOARD

Part	Supplied Contents	For Use With/Related Products	Contents	Frequency (Max)	Frequency (Min)	Type	Utilized IC / Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Package Length	Package Width	Insertion Loss	Circuit	Frequency Range (Min)	Frequency Range (Max)	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	IIP3	Isolation	Test Frequency (Minimum)	Test Frequency (Maximum)	Impedance	Topology	RF Type

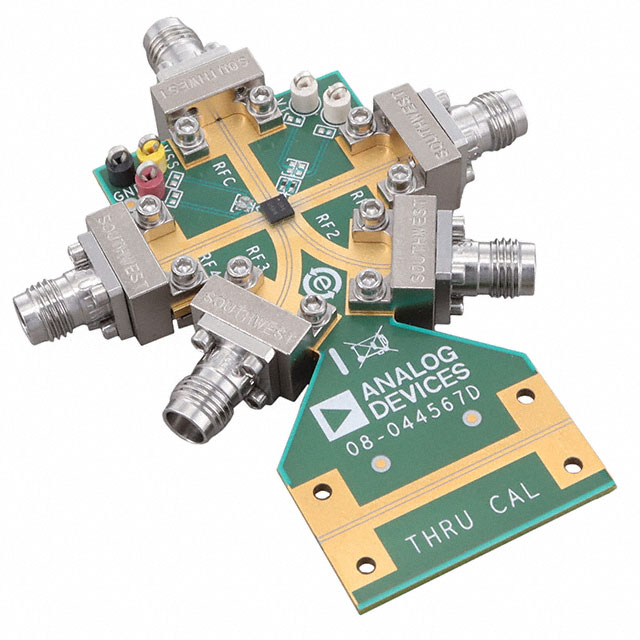

Analog Devices Inc./Maxim Integrated ADRF5046-EVALZ	Board(s)	ADRF5046	Board	44 GHz	100 MHz	SP4T Switch	ADRF5046
Analog Devices Inc./Maxim Integrated ADRF5046BCCZN-R7								20-VFLGA Exposed Pad	-40 °C	105 °C	20-LGA	3 mm	3 mm	3 dB	SP4T	100 MHz	44 GHz	Surface Mount	3.15 V	3.45 V	50 dBm	31 dB	40 GHz	44 GHz	50 Ohm	Reflective	Radar VSAT
Analog Devices Inc./Maxim Integrated ADRF5046BCCZN								20-VFLGA Exposed Pad	-40 °C	105 °C	20-LGA	3 mm	3 mm	3 dB	SP4T	100 MHz	44 GHz	Surface Mount	3.15 V	3.45 V	50 dBm	31 dB	40 GHz	44 GHz	50 Ohm	Reflective	Radar VSAT
