Product families from Tark Thermal Solutions
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
AANon-Isolated DC/DC Converters AA-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +4000V HVout, 4W, Thru-hole mount, Regulated, Standard Interface, 25ppm/ C Temperature Coefficient | Fans, Blowers, Thermal Management | 1 | Active | Non-Isolated DC/DC Converters AA-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +4000V HVout, 4W, Thru-hole mount, Regulated, Standard Interface, 25ppm/ C Temperature Coefficient |
CPThermoelectric Peltier Modules | Fans, Blowers, Thermal Management | 27 | Active | Thermoelectric Peltier Modules |
HiTemp ETThermoelectric Peltier Modules ET8,288,F2,5252,TA,R T,W6 | Fans, Blowers, Thermal Management | 49 | Active | Thermoelectric Peltier Modules ET8,288,F2,5252,TA,R T,W6 |
HiTemp ETXThermoelectric Peltier Modules HiTemp ETX Series, Thermoelectric Cooler, RTV perimeter seal | Thermoelectric, Peltier Modules | 55 | Active | Thermoelectric Peltier Modules HiTemp ETX Series, Thermoelectric Cooler, RTV perimeter seal |
MSThermoelectric Peltier Modules Multistage Series, Thermoelectric Cooler, 3.6W cooling power, Metallized Hot and Cold surface | Thermal | 9 | Active | Thermoelectric Peltier Modules Multistage Series, Thermoelectric Cooler, 3.6W cooling power, Metallized Hot and Cold surface |
NRCCircuit Breakers Circuit Protector 10A | Fans, Blowers, Thermal Management | 4 | Active | Circuit Breakers Circuit Protector 10A |

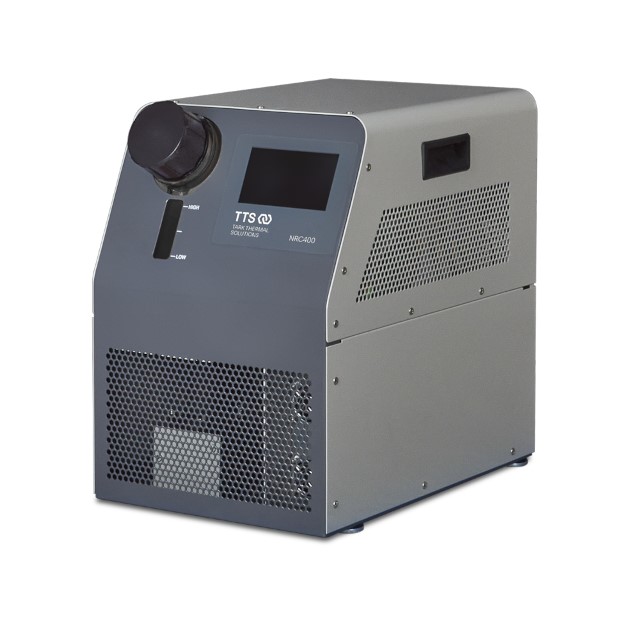

Nextreme NRC 400 AccessoriesCHINA PLUG, NRC400-T0-00-PC2 | Power, Line Cables and Extension Cords | 1 | Active | CHINA PLUG, NRC400-T0-00-PC2 |
OptoTECThermoelectric Peltier Modules | Thermoelectric, Peltier Modules | 1 | Active | Thermoelectric Peltier Modules |
OptoTEC OTX SeriesThermoelectric Peltier Modules OptoTEC OTX Series- Thermoelectric Cooler | Fans, Blowers, Thermal Management | 2 | Active | Thermoelectric Peltier Modules OptoTEC OTX Series- Thermoelectric Cooler |
PTPluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw | Thermal | 1 | Active | Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw |
Parts from Tark Thermal Solutions that are not part of a series
| Part Information | Pricing (lowest) | Height | Features | Maximum Power Dissipation (Qmax) | Delta Tmax | Number of Stages | Operating Temperature | Resistance | Size / Dimension Shape | Size / Dimension Width | Size / Dimension Length | Voltage - Max | Type | Current - Max | Weight | Current | Voltage | Power - Cooling | Operating Temperature (Max) | Operating Temperature (Min) | Fluid Capacity | Product Type | Dimensions - Overall Height | Dimensions - Overall Width | Dimensions - Overall Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tark Thermal Solutions CP14-7-10-L1-RT-W4.5 | Sign in to see pricing | 4.7 mm | Lead Wires, Sealed, Silicone RTV | 1.8 W | 68 °C | 1 | 80 °C | 0.19 Ohms | Square | 9.5 mm | 9.5 mm | 0.8 V | TEC (Thermoelectric Cooler) | 3.9 A | — | — | — | — | — | — | — | — | — | — | — |
Tark Thermal Solutions CP10-31-08-L1-EP-W4.5 | Sign in to see pricing | 3.99 mm | Epoxy, Lead Wires, Sealed | 5.3 W | 67 °C | 1 | 80 °C | 1.29 Ohms | Square | 12.3 mm | 12.3 mm | 3.8 V | TEC (Thermoelectric Cooler) | 2.5 A | — | — | — | — | — | — | — | — | — | — | — |
Tark Thermal Solutions THERMOELECT | Sign in to see pricing | 3.4 mm | Lead Wires | 10.1 W | 67 °C | — | — | — | Square | 18 mm | 18 mm | 8.6 V | TEC (Thermoelectric Cooler) | 2.1 A | — | — | — | — | — | — | — | — | — | — | — |
 Tark Thermal Solutions CP10-71-06-L1-EP-W4.5 | Sign in to see pricing | 3.58 mm | Epoxy, Lead Wires, Sealed | 14.4 W | 67 °C | 1 | 80 °C | 2.43 Ohms | Square | 22.6 mm | 22.6 mm | 8.6 V | TEC (Thermoelectric Cooler) | 3 A | — | — | — | — | — | — | — | — | — | — | — |
Tark Thermal Solutions CP10-71-05-L2-EP-W4.5 | Sign in to see pricing | 3.2 mm | Epoxy, Lead Wires, Sealed | 19 W | 67 °C | 1 | 80 °C | 1.88 Ohms | Square | 22.6 mm | 22.6 mm | 7.9 V | TEC (Thermoelectric Cooler) | 3.9 A | — | — | — | — | — | — | — | — | — | — | — |
Tark Thermal Solutions CP14-71-045-L1-EP-W4.5 | Sign in to see pricing | 3.33 mm | Epoxy, Lead Wires, Sealed | 41.3 W | 67 °C | 1 | 80 °C | 870 mOhms | Square | 29.7 mm | 29.7 mm | 8 V | TEC (Thermoelectric Cooler) | 8.5 A | — | — | — | — | — | — | — | — | — | — | — |
Tark Thermal Solutions CP12-161-06-L1-EP-W4.5 | Sign in to see pricing | 3.61 mm | Epoxy, Lead Wires, Sealed | 52.2 W | 67 °C | 1 | 80 °C | 3.54 Ohms | Square | 39.9 mm | 39.9 mm | 18.3 V | TEC (Thermoelectric Cooler) | 4.8 A | — | — | — | — | — | — | — | — | — | — | — |
 Tark Thermal Solutions WW-3001 3000W HEAT EXCHANGER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Tark Thermal Solutions LIQUID TO LIQUID HEAT EXCHANGER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | 59.5 lbs | 2.1 A | 230 V | 5 kW | 40 °C | 0 °C | 8500 ML | Active, Heat Exchanger | 14.57 in | 11.81 in | 17.72 in |
Tark Thermal Solutions LIQUID TO LIQUID HEAT EXCHANGER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 4000 W | 40 °C | 5 °C | — | Active, Heat Exchanger | — | — | — |
