MS Series

Thermoelectric Peltier Modules Multistage Series, Thermoelectric Cooler, 3.6W cooling power, Metallized Hot and Cold surface

Catalog

Thermoelectric Peltier Modules Multistage Series, Thermoelectric Cooler, 3.6W cooling power, Metallized Hot and Cold surface

Part	Voltage - Max	Maximum Power Dissipation (Qmax)	Type	Operating Temperature	Delta Tmax	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Current - Max	Features	Height	Number of Stages

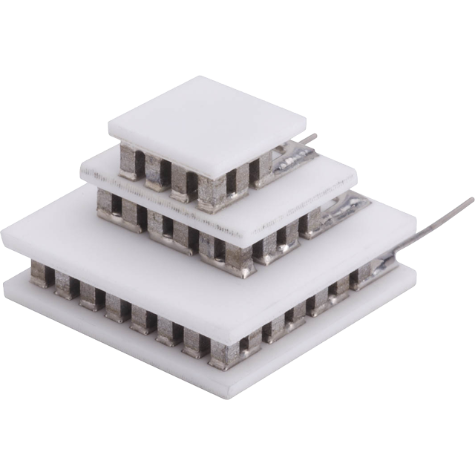

Tark Thermal Solutions 9360001-304	8.3 V	15.3 W	TEC (Thermoelectric Cooler)	80 °C	100 °C	Square	44 mm	44 mm	8 A	Lead Wires Non-Sealed	13.11 mm	3
Tark Thermal Solutions 9340001-301	3.7 V	3.5 W	TEC (Thermoelectric Cooler)	80 °C	87 °C	Square	15 mm	15 mm	2.2 A	Lead Wires Non-Sealed	6.5 mm	2
Tark Thermal Solutions 9350006-307	15.8 V	39.9 W	TEC (Thermoelectric Cooler)	80 °C	87 °C	Square	40 mm	40 mm	6.8 A	Lead Wires Non-Sealed	8.28 mm	2
Tark Thermal Solutions 9340006-304	14.5 V	2 W	TEC (Thermoelectric Cooler)	80 °C	123 °C	Square	30 mm	30 mm	1.6 A	Lead Wires Non-Sealed	15.6 mm	5
Tark Thermal Solutions 9350007-304	16.1 V	27 W	TEC (Thermoelectric Cooler)	80 °C	88 °C	Square	40 mm	40 mm	4.5 A	Lead Wires Non-Sealed	8.31 mm	2
Tark Thermal Solutions 9320004-304	2.2 V	0.8 W	TEC (Thermoelectric Cooler)	80 °C	92 °C	Square	6.1 mm	6.1 mm	1.1 A	Lead Wires Non-Sealed	4.6 mm	2
Tark Thermal Solutions 9350007-302	16.1 V	27 W	TEC (Thermoelectric Cooler)	80 °C	88 °C	Square	40 mm	40 mm	4.5 A	Lead Wires Sealed Silicone RTV	8.1 mm	2

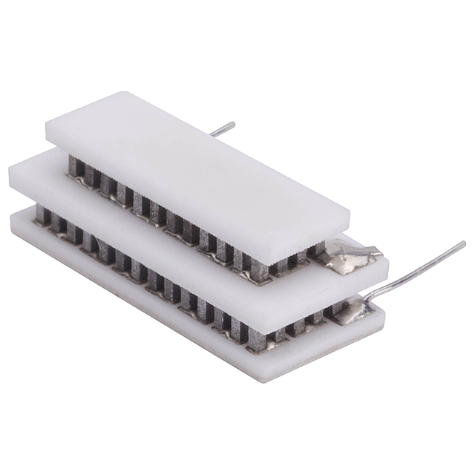

Tark Thermal Solutions 9380001-301	5.5 V	1.1 W	TEC (Thermoelectric Cooler)	80 °C	82 °C	Rectangular	6 mm	14 mm	500 mA	Lead Wires Non-Sealed	4.6 mm	2
Tark Thermal Solutions 9340004-304	15.5 V	6.9 W	TEC (Thermoelectric Cooler)	80 °C	104 °C	Square	30 mm	30 mm	1.9 A	Lead Wires Non-Sealed	9.7 mm	3

Thermoelectric Peltier Modules Multistage Series, Thermoelectric Cooler, 3.6W cooling power, Metallized Hot and Cold surface
