L6374INDUSTRIAL QUAD LINE DRIVER | Power Management (PMIC) | 2 | Active | The L6374 is especially designed to be used as a line driver in industrial control systems based on the 24V signal levels (IEC1131, 24VDC). |
L6375S0.5A Industrial Intelligent Power Switch | Integrated Circuits (ICs) | 2 | Active | The L6375S is a monolithic intelligent power switch in multipower BCD technology to drive inductive, capacitive or resistive loads with controlled output voltage slew rate and short-circuit protection. An internal clamping diode enables the fast demagnetization of inductive loads. Diagnostic for CPU feedback and extensive use of electrical protections make this device robust and suitable for industrial automation applications. |
L6384EHigh voltage high and low side driver with bootstrap diode | Integrated Circuits (ICs) | 3 | Active | The L6384E is a high voltage gate driver, manufactured with the BCD™ "offline" technology, and able to drive a half-bridge of power MOSFET or IGBT devices. The high-side (floating) section is able to work with voltage rail up to 600 V. Both device outputs can sink and source 650 mA and 400 mA respectively and cannot be simultaneously driven high thanks to single input configuration. Further prevention from outputs cross conduction is guaranteed by the deadtime function, tunable by the user through an external resistor connected to the DT/SD pin.
The L6384E device has one input pin, one enable pin (DT/SD) and two output pins, and guarantees matched delays between low-side and high-side sections, thus simplifying device's high frequency operation. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices. The bootstrap diode is integrated inside the device, allowing a more compact and reliable solution.
The L6384E features the UVLO protection and a voltage clamp on the VCCsupply voltage. The voltage clamp is typically around 15.6 V and is useful in order to ensure a correct device functioning in cases where VCCsupply voltage is ramped up too slowly or is subject to voltage drops.
The device is available in a DIP-8 tube and SO-8 tube and tape and reel packaging options. |
| Power Management (PMIC) | 2 | Obsolete | |

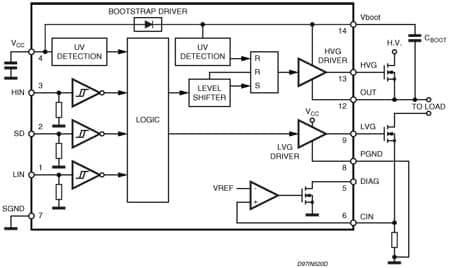

L6386ADHV High and low side driver with embedded comparator and bootstrap diode | PMIC | 5 | Active | The L6386AD is a high voltage gate driver, manufactured with the BCD™ "offline" technology, and able to drive simultaneously one high and one low-side power MOSFET or IGBT device. The high-side (floating) section is able to work with voltage rail up to 600 V. Both device outputs can independently sink and source 650 mA and 400 mA respectively and can be simultaneously driven high in order to drive asymmetrical half-bridge configurations.
The L6386AD device provides two input pins, two output pins and an enable pin (SD), and guarantees the outputs switch in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices.
The L6386AD integrates a comparator (inverting input internally referenced to 0.5 V) that can be used to protect the device against fault events, like overcurrent. The DIAG output is a diagnostic pin, driven by the comparator, and used to signal a fault event occurrence to the controlling device.
The bootstrap diode is integrated in the driver allowing a more compact and reliable solution.
The L6386AD device features the UVLO protection on both supply voltages (VCCand VBOOT) ensuring greater protection against voltage drops on the supply lines.
The device is available in a SO-14 package, in tube, and tape and reel packaging. |
L6387EHigh voltage high and low-side driver | PMIC | 2 | Active | The L6387E is a simple and compact high voltage gate driver, manufactured with the BCD™ "offline" technology, and able to drive a half-bridge of power MOSFET or IGBT devices. The high-side (floating) section is enabled to work with voltage rail up to 600 V. Both device outputs can independently sink and source 650 mA and 400 mA respectively and cannot be simultaneously driven high thanks to an integrated interlocking function.
The L6387E device provides two input pins and two output pins and guarantees the outputs toggle in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices.
The L6387E features the UVLO protection on the VCCsupply voltage and integrates the bootstrap diode, allowing a more compact and reliable solution.
The device is available in a DIP-8 tube and SO-8 tube and tape and reel packaging options. |
| PMIC | 2 | Obsolete | |
L6389EHigh voltage high and low-side driver | PMIC | 2 | Active | The L6389E is a high voltage gate driver, manufactured with the BCD™ "offline" technology, and able to drive a half-bridge of power MOSFET/IGBT devices. The high-side (floating) section is enabled to work with voltage rail up to 600 V. Both device outputs can sink and source 650 mA and 400 mA respectively and cannot be simultaneously driven high thanks to an integrated interlocking function. Further prevention from outputs cross conduction is guaranteed by the deadtime function.
The L6389E device has two input and two output pins, and guarantees the outputs switch in phase with inputs. The logic inputs are CMOS/TTL compatible (3.3 V, 5 V and 15 V) to ease the interfacing with controlling devices.
The bootstrap diode is integrated in the driver allowing a more compact and reliable solution.
The L6389E device features the UVLO protection on both supply voltages (VCCand VBOOT) ensuring greater protection against voltage drops on the supply lines.
The device is available in an SO-8 tube, and tape and reel packaging options. |
L6392High voltage high and low-side driver | Gate Drivers | 1 | Active | The L6392 is a high voltage device manufactured with the BCD™ "offline" technology. It is a single chip half bridge gate driver for the N-channel power MOSFET or IGBT.
The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing microcontroller/DSP.
The IC embeds an operational amplifier suitable for advanced current sensing in applications such as field oriented motor control. |
L6398High voltage high and low-side driver | Gate Drivers | 1 | Active | The L6398 is a high voltage device manufactured with the BCD™ "offline" technology. It is a single- chip half bridge gate driver for the N-channel power MOSFET or IGBT.
The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for the easy interfacing microcontroller/DSP. |
