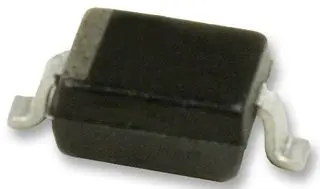

ESDA041-1JY Series

Automotive single line 4 V TVS for BMS in SOD323

Catalog

Automotive single line 4 V TVS for BMS in SOD323

Part	Current - Peak Pulse (10/1000µs)	Qualification	Power Line Protection	Grade	Supplier Device Package	Package / Case	Voltage - Reverse Standoff (Typ)	Mounting Type	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Type	Voltage - Clamping (Max) @ Ipp [Max]
STMicroelectronics ESDA041-1JY	20 A	AEC-Q101		Automotive	SOD-323	SC-76 SOD-323	3.6 V	Surface Mount	190 pF	150 °C	-55 °C	1	Zener	9 V

Catalog

Automotive single line 4 V TVS for BMS in SOD323

Description

These ESDA041 devices are unidirectional single and dual line TVS protection devices designed to protect battery monitoring system (BMS) and other circuits around batteries against ESD transients and hot plug-in overshoots. The dual TVS version in SOT323 provides space saving and cost effectiveness. These devices are packaged in SOD323 and in SOT323-3L.
