MCP320812-Bit, 100kSPS, 8-Channel ADC | Integrated Circuits (ICs) | 9 | Active | The MCP3208 12-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3208 features a successive approximation register (SAR) architecture and an industry-standard SPI™ serial interface, allowing 12-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3208 features 100k samples/second, 8 input channels, low power consumption (5nA typical standby, 400 µA max.active), and is available in 16-pin PDIP and SOIC packages. Applications for the MCP3208 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances. |
| Expansion Boards, Daughter Cards | 9 | Active | |
MCP330113-Bit, 100kSPS, Single Channel ADC | Analog to Digital Converters (ADC) | 6 | Active | The MCP3301 13-bit Analog to Digital Converter (ADC) features a full differential input and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3301 features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 8-pin PDIP, SOIC and MSOP packages. The full differential input of the MCP3301 enables a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications. |
MCP330213-Bit, 100kSPS, Dual Channel ADC | Integrated Circuits (ICs) | 7 | Active | The MCP3302 13-bit Analog to Digital Converter (ADC) features full differential inputs and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3302 features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 14-pin PDIP, SOIC and TSSOP packages. The full differential inputs of the MCP3302 enable a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications. |
MCP330413-Bit, 100kSPS, 4-Channel ADC | Integrated Circuits (ICs) | 5 | Active | The MCP3304 13-bit Analog to Digital Converter (ADC) features full differential inputs and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3304 features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 16-pin PDIP and SOIC packages. The full differential inputs of the MCP3304 enable a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications. |
| Analog to Digital Converters (ADC) | 13 | Active | |
| Analog to Digital Converters (ADC) | 12 | Active | |
| Analog to Digital Converters (ADC) | 10 | Active | The MCP33131D-05 16-bit
Analog-to-Digital Converter (ADC) features a full differential input, high
performance and low power consumption in a small package, making it ideal for
battery powered systems and remote data acquisition applications. The MCP33131D-05 features a successive approximation register (SAR) architecture and an
industry-standard SPI serial interface, allowing 16-bit ADC capability to be
added to any PIC® microcontroller. The MCP33131D-05 features 500k samples/second,
1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical
active), and is available in 10-pin MSOP and 10-pin TDFN packages. Applications
for the MCP33131D-05 include high-precision data acquisition, medical
instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power
supply applications. |
| Integrated Circuits (ICs) | 13 | Active | The MCP33141D-05 12-bit
Analog-to-Digital Converter (ADC) features a differential input, high
performance and low power consumption in a small package, making it ideal for
battery powered systems and remote data acquisition applications. The
MCP33141D-05 features a successive approximation register (SAR) architecture and
an industry-standard SPI serial interface, allowing 12-bit ADC capability to be
added to any PIC® microcontroller. The MCP33141D-05 features 500k
samples/second, 1 input channel, low power consumption (1.5µA typical standby
current, 0.33mA typical active current), and is available in 10 pin MSOP and 10
pin TDFN. Applications for the MCP33141D-05 include high-precision data
acquisition, medical instrumentation, motor control applications, electric
vehicle battery management systems, battery operated applications, switch-mode
power supply applications. MCP33141D-05 is fully automotive qualified (AEC-Q100)
and specified for operation between -40 and 125 degrees Celsius. This ADC is
designed to operate in both high-temperature and electromagnetic environments
and to meet the rigorous and harsh demands of the automotive and industrial environment. |

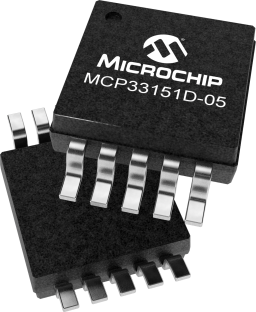

| Data Acquisition | 13 | Active | The MCP33151D-05 14-bit
Analog-to-Digital Converter (ADC) features a differential input, high
performance and low power consumption in a small package, making it ideal for
battery powered systems and remote data acquisition applications. The
MCP33151D-05 features a successive approximation register (SAR) architecture and
an industry-standard SPI serial interface, allowing 14-bit ADC capability to be
added to any PIC® microcontroller. The MCP33151D-05 features 500k
samples/second, 1 input channel, low power consumption (1.5µA typical standby
current, 0.33mA typical active current), and is available in 10 pin MSOP and 10
pin TDFN. Applications for the MCP33151D-05 include high-precision data
acquisition, medical instrumentation, motor control applications, electric
vehicle battery management systems, battery operated applications, switch-mode
power supply applications. MCP33151D-05 is fully automotive qualified (AEC-Q100)
and specified for operation between -40 and 125 degrees Celsius. This ADC is
designed to operate in both high-temperature and electromagnetic environments
and to meet the rigorous and harsh demands of the automotive and industrial environment. |
