MCP33131D-10 Series

16-Bit, 500kSPS, Single Channel ADC

Catalog

16-Bit, 500kSPS, Single Channel ADC

Part	Number of A/D Converters	Package / Case	Data Interface	Input Type	Architecture	Grade	Reference Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Qualification	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Sampling Rate (Per Second)	Mounting Type	Number of Bits	Supplier Device Package	Number of Inputs	Ratio - S/H:ADC	Package / Case [x]	Package / Case [x]	Sampling Rate (Per Second)
Microchip Technology MCP33131D-10-E/MN	1	10-WFDFN Exposed Pad	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V	1 M	Surface Mount	16	10-TDFN (3x3)	1	0:1
Microchip Technology MCP33131D-10T-E/MS	1	10-MSOP 10-TFSOP	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V	1 M	Surface Mount	16	10-MSOP	1	0:1	3 mm	0.118 in
Microchip Technology MCP33131D-05T-E/MN	1	10-WFDFN Exposed Pad	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-TDFN (3x3)	1	0:1			500k
Microchip Technology MCP33131D-10T-E/MN	1	10-WFDFN Exposed Pad	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V	1 M	Surface Mount	16	10-TDFN (3x3)	1	0:1
Microchip Technology MCP33131-10T-E/MS	1	10-MSOP 10-TFSOP	SPI	Single Ended	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V	1 M	Surface Mount	16	10-MSOP	1	0:1	3 mm	0.118 in
Microchip Technology MCP33131-05-E/MN	1	10-WFDFN Exposed Pad	SPI	Single Ended	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-TDFN (3x3)	1	0:1			500k
Microchip Technology MCP33131D-05-E/MN	1	10-WFDFN Exposed Pad	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-TDFN (3x3)	1	0:1			500k
Microchip Technology MCP33131-05-E/MS	1	10-MSOP 10-TFSOP	SPI	Single Ended	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-MSOP	1	0:1	3 mm	0.118 in	500k
Microchip Technology MCP33131-05T-E/MS	1	10-MSOP 10-TFSOP	SPI	Single Ended	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-MSOP	1	0:1	3 mm	0.118 in	500k
Microchip Technology MCP33131D-05-E/MS	1	10-MSOP 10-TFSOP	SPI	Differential	SAR	Automotive	External	1.7 V	5.5 V	125 °C	-40 °C	ADC	AEC-Q100	1.9 V	1.7 V		Surface Mount	16	10-MSOP	1	0:1	3 mm	0.118 in	500k

Catalog

16-Bit, 500kSPS, Single Channel ADC

Key Features

• * 16-bit resolution

• * Single-Ended input

• * SPI interface

• * ±0.9 LSB Typical DNL

• * ±2.2 LSB Typical INL

• * 500 ksps sample rate

• * -40 to +125°C temperature range

• * Recommended for Automotive Designs (Q100)

Description

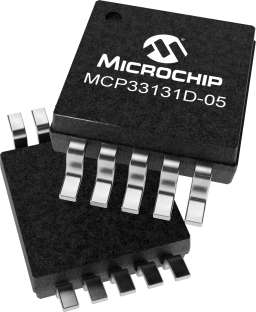

The MCP33131D-05 16-bit Analog-to-Digital Converter (ADC) features a full differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33131D-05 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 16-bit ADC capability to be added to any PIC® microcontroller. The MCP33131D-05 features 500k samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical active), and is available in 10-pin MSOP and 10-pin TDFN packages. Applications for the MCP33131D-05 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications.
