| Magnetic, Reed Switches | 1 | Active | The MVSR-20 Reed Switch is a miniature, normally open switch with a 19.69mm long x 2.66mm diameter (0.775" x 0.105") glass envelope, capable of high voltage switching up to 1kVdcat 1ma. It has high insulation resistance of 10^10 ohms minimum and contact resistance less than 100 milli-ohms. |
MXHV9910OFF-LINE HIGH BRIGHTNESS LED DRIVER REEL | Evaluation Boards | 1 | Active | MXHV9910 is a low cost, high-brightness (HB) LED driver manufactured using our high voltage BCDMOS on SOI process. This driver has internal circuitry that allows it to operate from a universal AC line or from 8VDC to 450VDC . This highly versatile input operating voltage range enables this device to be used in a broad range of HB LED applications. MXHV9910 features a fixed-frequency, peak-current control method, which provides an ideal solution for driving multiple LEDs in series and in parallel. In addition, LED dimming can be implemented by applying a small DC voltage to the LD pin, or by a low-frequency digital PWM signal to the PWMD pin. |
Mds0 SeriesDetector Switches Micro Snap-acting Detect Switch
Mini Size Snap-acting Switches | Switches | 13 | Active | C&K’s MDS series mini size snap-acting switches are designed with a snap-acting tactile feel, feature a mini package size and come in either a vertical or right-angle PCB mount variety. MDS switches are perfect for medical devices, consumer electronic devices and other applications where you need to be able to detect the presence of a mechanical device. |
Military0 SeriesToggle Switches DPDT ON OFF MOM MIL TOGGLE
MIL-S-83731 Toggle Switch | Switches | 15 | Active | C&K’s military series toggle switches are high-quality, resilient switches qualified to the MIL-S-83731 specification. The switches are made of flame-retardant housing material with 50 μ inch selective gold contact plating and epoxy sealed terminals for process compatibility. With a long lifecycle of 10,000 cycles, C&K’s military series switches successfully operate at both high and low temperatures, even in the harshest of environments. |
Mm0 SeriesMini Size Precision Snap-acting Switch
Basic / Snap Action Switches Snap | Switches | 19 | Active | The MM series mini size precision snap-acting switch from C&K features low-level and power switching, increased overtravel and a long electrical and mechanical life. These features make the MM series perfect for use in communication devices and other applications with limited space constraints. |
| Position, Proximity, Speed (Modules) | 1 | Active | The MPS series from C&K are magnetic proximity sensors, perfect for automotive sensors and indicators, industrial sensors and factory automation equipment. The MPS series are sealed, protecting them from the harsh environments they’re commonly used in. Manufactured for a quick and easy installation, the MPS series also have a long lifecycle – lasting for more than 4 million actions. |
| Sensors, Transducers | 1 | Active | The MPSR series from C&K are ruggedized magnetic proximity sensors, perfect for automotive sensors and indicators, industrial sensors, anti-tampering and other security, and factory automation equipment. The MPSR series sensor and magnet are both sealed in a tough aluminium housing combined with stainless steel wire sleeves, protecting them from the harsh environments they’re commonly used in, whether it be from oil, water, grease, or volatile chemicals and gases. Manufactured for a quick and easy installation, the MPSR series also have a long lifecycle – lasting for 2 million actions and a robust 30V 3W rating. |
| Switches | 1 | Active | The MS series mini size snap-acting switch from C&K is perfect for use in industrial applications, appliances and consumer electronics because of its ability to withstand repeated use while continuing to respond to various levels of operating force. The MS series features detect interlock and movement as well as different lever options, giving designers the options they need to continue to innovate. |

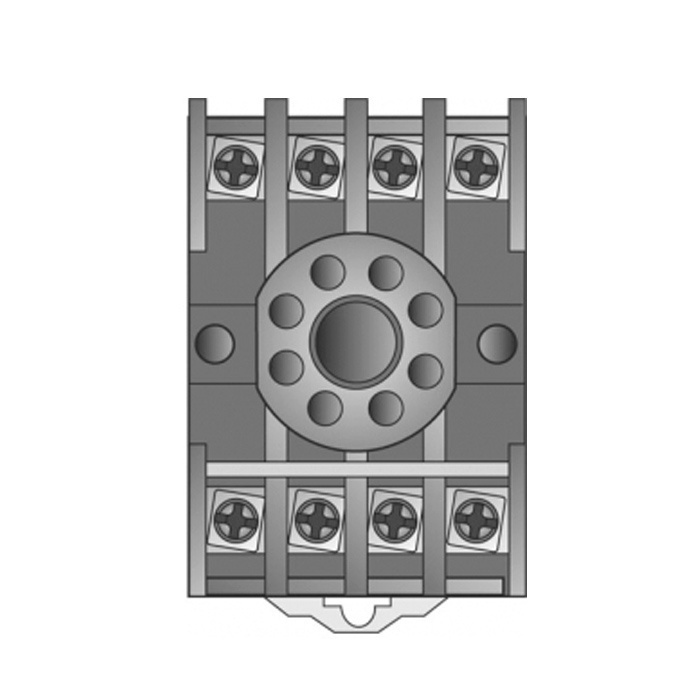

| Relays | 1 | Active | The NDS-8 is an 8-pin, 35 mm DIN rail or surface mount octal socket. The NDS-11 is an 11-pin 35 mm DIN rail or surface mountable socket. Both are rated at 10A@300VAC. Surface mounted with two #6 screws or snaps onto a 35 mm DIN rail. A spring mechanism allows easy removal. Screw terminals with captive wire clamps accept up to two #14AWG wires. The NDS-8 uses PSC8 hold-down clips and the NDS-11 uses PSC11 hold-down clips. |
| Switches | 1 | Active | |
