Mds0 Series Series

Detector Switches Micro Snap-acting Detect Switch Mini Size Snap-acting Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Detector Switches Micro Snap-acting Detect Switch Mini Size Snap-acting Switches

Part	Voltage Rating - DC	Current Rating (Amps)	Circuit	Termination Style	Overtravel	Overtravel	Switch Function	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position [custom]	Operating Position [custom]	Electrical Life	Pretravel	Pretravel	Actuator Type	Mounting Type	Mechanical Life	Release Force	Operating Position	Operating Position
Littelfuse/Commercial Vehicle Products MDS6500AL03RL	30 V	300 mA	SPDT	PC Pin	1.5 mm	0.06 "	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.02 in	0.5 mm	Lever Straight	Through Hole Right Angle	30000 Steps
Littelfuse/Commercial Vehicle Products MDS6500AL02PL	30 V	300 mA	SPDT	PC Pin	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.071 in	1.8 mm	Lever Straight	Through Hole	30000 Steps	3 gf

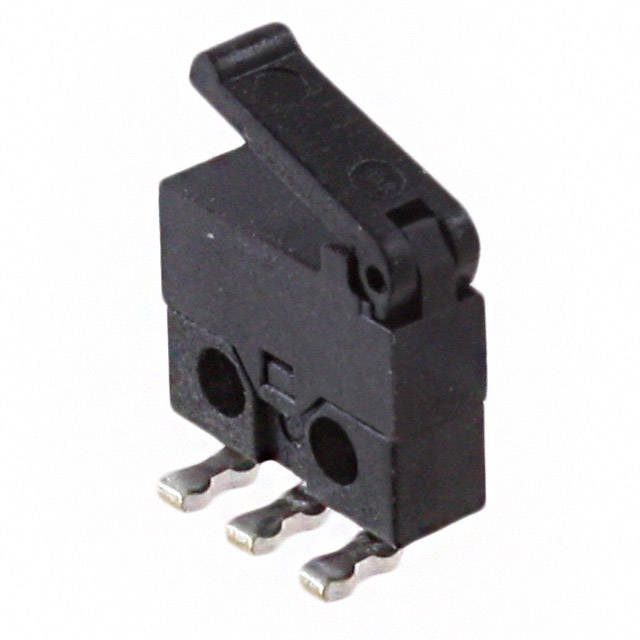

Littelfuse/Commercial Vehicle Products MDS6500AL02RS	30 V	300 mA	SPDT	PC Pin	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.071 in	1.8 mm	Lever Straight	Through Hole Right Angle	30000 Steps	3 gf
Littelfuse/Commercial Vehicle Products MDS6500AL02PS	30 V	300 mA	SPDT	PC Pin	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.071 in	1.8 mm	Lever Straight	Through Hole	30000 Steps	3 gf
Littelfuse/Commercial Vehicle Products MDS6500AL03SR	30 V	300 mA	SPDT	Gull Wing	1.5 mm	0.06 "	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.02 in	0.5 mm	Lever Straight	Surface Mount Right Angle	30000 Steps

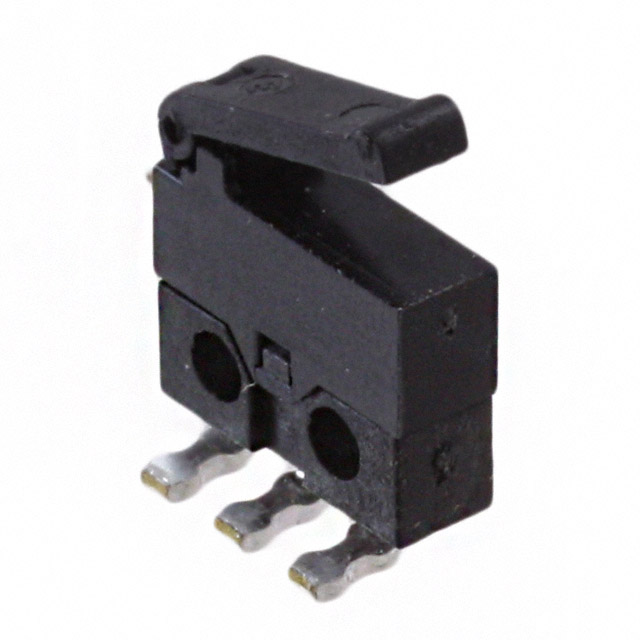

Littelfuse/Commercial Vehicle Products MDS6500AL02LS	30 V	300 mA	SPDT	PC Pin	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.071 in	1.8 mm	Lever Straight	Through Hole Right Angle	30000 Steps	3 gf
Littelfuse/Commercial Vehicle Products MDS6500AL02BR	30 V	300 mA	SPDT	Gull Wing	1.5 mm	0.06 "	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.02 in	0.5 mm	Lever Straight	Surface Mount Right Angle	30000 Steps
Littelfuse/Commercial Vehicle Products MDS6500AL02SL	30 V	300 mA	SPDT	Gull Wing	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.071 in	1.8 mm	Lever Straight	Surface Mount Right Angle	30000 Steps	3 gf
Littelfuse/Commercial Vehicle Products MDS6500AL03LL	30 V	300 mA	SPDT	PC Pin	1.5 mm	0.06 "	On-Mom	50 gf	70 °C	-25 °C	6.7 mm	0.264 "	30000 Cycles	0.02 in	0.5 mm	Lever Straight	Through Hole Right Angle	30000 Steps

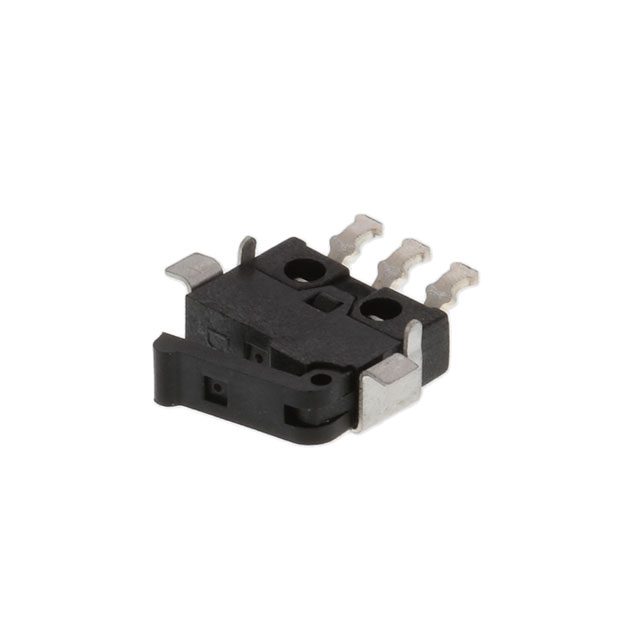

Littelfuse/Commercial Vehicle Products MDS6500AL02CL	30 V	300 mA	SPDT	Gull Wing	0.3 mm	0.011 in	On-Mom	50 gf	70 °C	-25 °C			30000 Cycles	0.071 in	1.8 mm	Lever Straight	Surface Mount Right Angle	30000 Steps	3 gf	0.224 "	5.7 mm

Catalog

Detector Switches Micro Snap-acting Detect Switch Mini Size Snap-acting Switches

Key Features

• Snap-acting tactile feel

• Mini package size

• Available in vertical or right angle PCB mount

Description

C&K’s MDS series mini size snap-acting switches are designed with a snap-acting tactile feel, feature a mini package size and come in either a vertical or right-angle PCB mount variety. MDS switches are perfect for medical devices, consumer electronic devices and other applications where you need to be able to detect the presence of a mechanical device.
