MXHV9910 Series

OFF-LINE HIGH BRIGHTNESS LED DRIVER REEL

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

OFF-LINE HIGH BRIGHTNESS LED DRIVER REEL

Part	Current - Output / Channel	Supplied Contents	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type

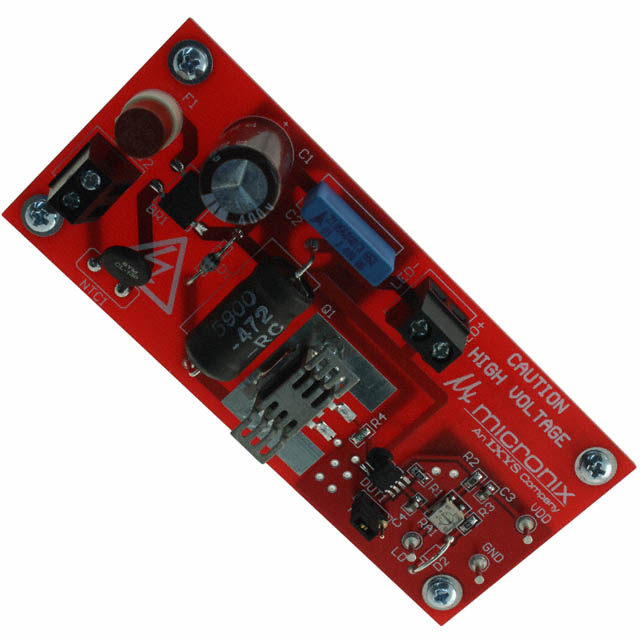

Littelfuse/Commercial Vehicle Products MXHV9910DB3	350 mA	Board(s)	MXH9910	90 VAC	265 VAC	1 Non-Isolated Output

Catalog

OFF-LINE HIGH BRIGHTNESS LED DRIVER REEL

Key Features

• 8V to 450 V Input Voltage Range

• >90 % Efficiency

• Drives Multiple LEDs in Series and Parallel Configurations

• Regulated LED Drive Current

• Linear or PWM Brightness Control

• Resistor-Programmable Oscillator Frequency

• SOIC-8 and SOIC-8 EP (Exposed Thermal Pad) Packages

Description

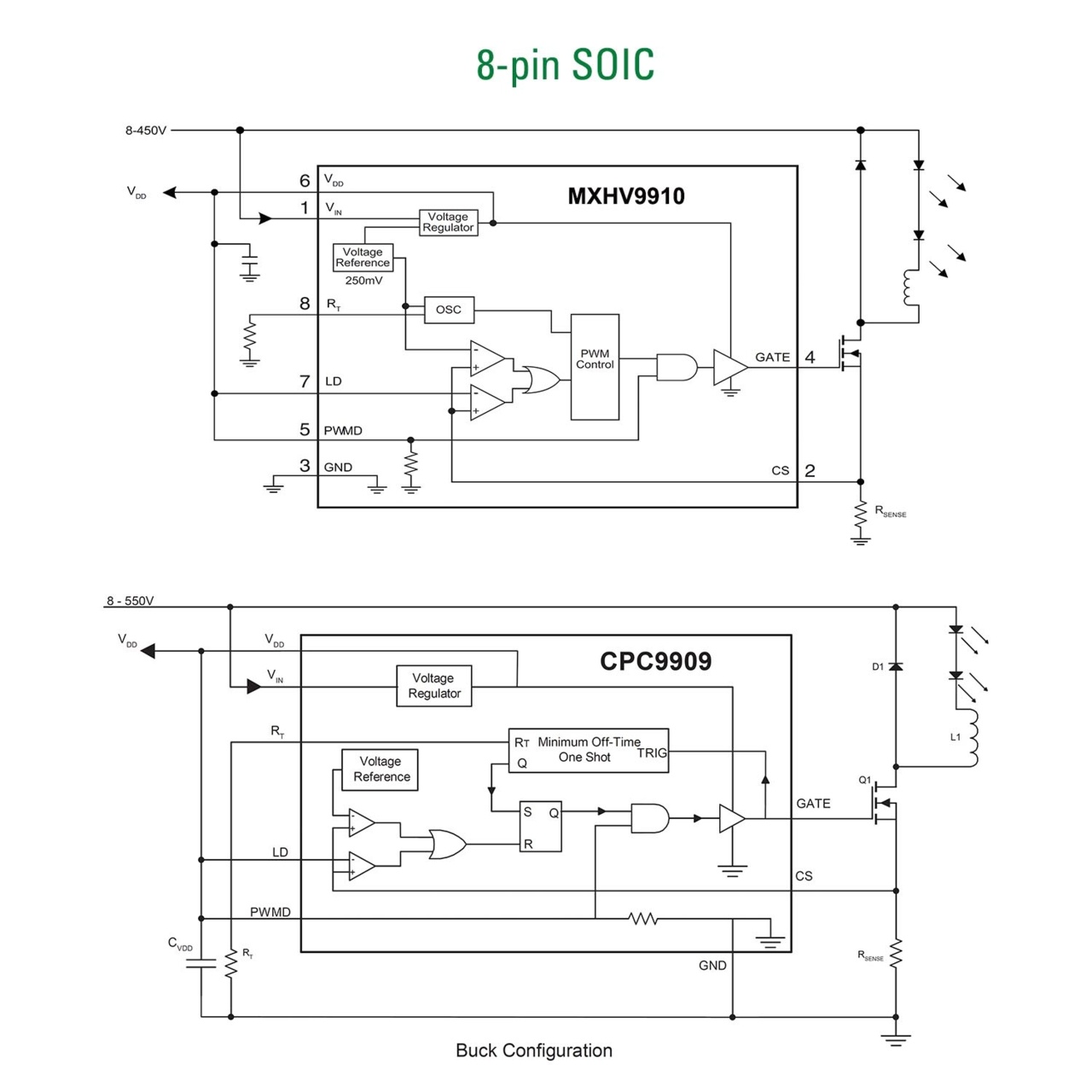

MXHV9910 is a low cost, high-brightness (HB) LED driver manufactured using our high voltage BCDMOS on SOI process. This driver has internal circuitry that allows it to operate from a universal AC line or from 8VDC to 450VDC . This highly versatile input operating voltage range enables this device to be used in a broad range of HB LED applications. MXHV9910 features a fixed-frequency, peak-current control method, which provides an ideal solution for driving multiple LEDs in series and in parallel. In addition, LED dimming can be implemented by applying a small DC voltage to the LD pin, or by a low-frequency digital PWM signal to the PWMD pin.
