Mm0 Series Series

Mini Size Precision Snap-acting Switch Basic / Snap Action Switches Snap

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Mini Size Precision Snap-acting Switch Basic / Snap Action Switches Snap

Part	Electrical Life	Operating Position	Operating Position	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Release Force	Voltage Rating - AC	Pretravel	Pretravel	Termination Style	Mounting Type	Operating Force	Actuator Type	Differential Travel	Differential Travel	Overtravel	Overtravel	Voltage Rating - DC	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products MMGGD1W2L	100000 Cycles	13.5 mm	0.531 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.075 in	1.9 mm	PC Pin	Through Hole Right Angle	170 gf	Lever Roller	0.012 "	0.3 mm	0.4 mm	0.015 "
Littelfuse/Commercial Vehicle Products MMGGD1W0T	100000 Cycles	13.5 mm	0.531 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.09 in	2.3 mm	PC Pin	Through Hole	115 gf	Lever Roller	0.026 in	0.65 mm	1.1 mm	0.045 in
Littelfuse/Commercial Vehicle Products MMGGF5L0T	100000 Cycles	8.4 mm	0.33 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	125 V	0.09 in	2.3 mm	PC Pin	Through Hole	115 gf	Lever Straight	0.026 in	0.65 mm	1.1 mm	0.045 in	30 V
Littelfuse/Commercial Vehicle Products MMGGD1L0L	100000 Cycles	8.4 mm	0.33 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.09 in	2.3 mm	PC Pin	Through Hole Right Angle	115 gf	Lever Straight	0.026 in	0.65 mm	1.1 mm	0.045 in
Littelfuse/Commercial Vehicle Products MMGGD1W2C	100000 Cycles	13.5 mm	0.531 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.075 in	1.9 mm	Solder Turret	Chassis Mount	170 gf	Lever Roller	0.012 "	0.3 mm	0.4 mm	0.015 "
Littelfuse/Commercial Vehicle Products MMGGD1L2L	100000 Cycles	8.4 mm	0.33 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.075 in	1.9 mm	PC Pin	Through Hole Right Angle	170 gf	Lever Straight	0.012 "	0.3 mm	0.4 mm	0.015 "

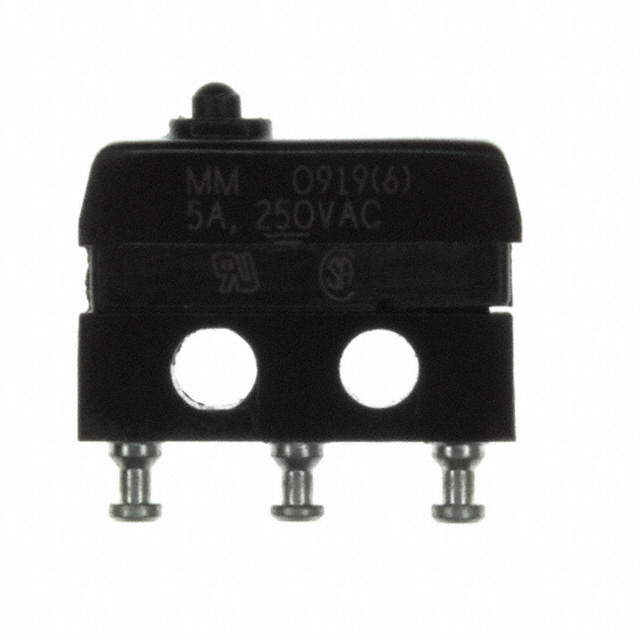

Littelfuse/Commercial Vehicle Products MMGGE2POC	100000 Cycles	8.13 mm	0.32 in	On-Mom	135 °C	-55 °C	SPDT	28 gf	250 V	0.02 in	0.5 mm	Solder Turret	Chassis Mount	142 gf	Round (Pin Plunger)	0.002 in	0.05 mm	0.1 mm	0.004 in		5 A
Littelfuse/Commercial Vehicle Products MMGGD1L0C	100000 Cycles	8.4 mm	0.33 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.09 in	2.3 mm	Solder Turret	Chassis Mount	115 gf	Lever Straight	0.026 in	0.65 mm	1.1 mm	0.045 in
Littelfuse/Commercial Vehicle Products MMGGD1L2R	100000 Cycles	8.4 mm	0.33 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.075 in	1.9 mm	PC Pin	Through Hole Right Angle	170 gf	Lever Straight	0.012 "	0.3 mm	0.4 mm	0.015 "
Littelfuse/Commercial Vehicle Products MMGGD1D0R	100000 Cycles	12 mm	0.472 in	On-Mom	135 °C	-55 °C	SPDT	20 gf	250 V	0.03 in	0.8 mm	PC Pin	Through Hole Right Angle	142 gf	Overtravel Plunger	0.004 in	0.1 mm	1 mm	0.04 in

Catalog

Mini Size Precision Snap-acting Switch Basic / Snap Action Switches Snap

Key Features

• Low level and power switching

• Long electrical and mechanical life

• Increased overtravel

Description

The MM series mini size precision snap-acting switch from C&K features low-level and power switching, increased overtravel and a long electrical and mechanical life. These features make the MM series perfect for use in communication devices and other applications with limited space constraints.
