Military0 Series Series

Toggle Switches DPDT ON OFF MOM MIL TOGGLE MIL-S-83731 Toggle Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Toggle Switches DPDT ON OFF MOM MIL TOGGLE MIL-S-83731 Toggle Switch

Part	Voltage Rating - DC	Bushing Thread	Actuator Material	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Features	Illumination	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Electrical Life	Termination Style	Circuit	Actuator Length [x]	Mounting Type
Littelfuse/Commercial Vehicle Products M83731/9-212	28 V	1/4-40	Brass Chrome Plated	On-Off-On	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	PC Pin	SPDT	10.41 mm
Littelfuse/Commercial Vehicle Products M83731/13-211	28 V	Unthreaded	Brass Chrome Plated	On-Off-On	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C		10000 Cycles	PC Pin	SPDT	6.9 mm	Right Angle Through Hole Vertical

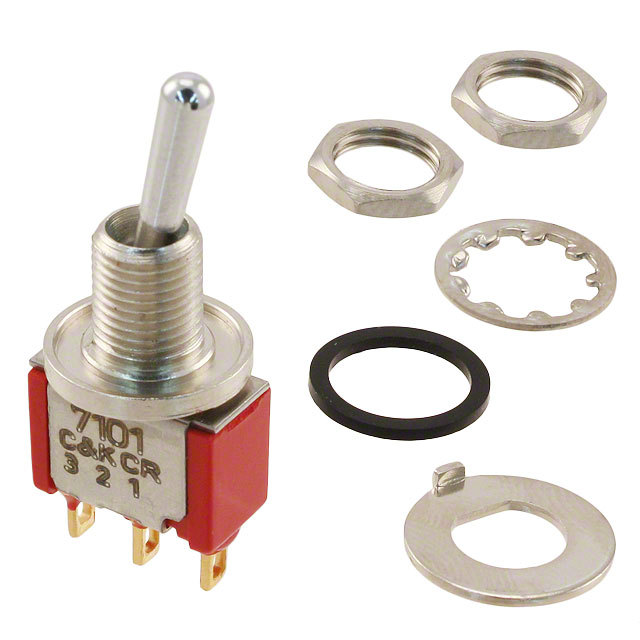

Littelfuse/Commercial Vehicle Products M837319231	28 V	1/4-40	Brass Chrome Plated	On-On	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	Solder Lug	SPDT	10.41 mm
Littelfuse/Commercial Vehicle Products M83731/10-211	28 V	1/4-40	Brass Chrome Plated	On-Off-On	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	Solder Lug	DPDT	10.41 mm

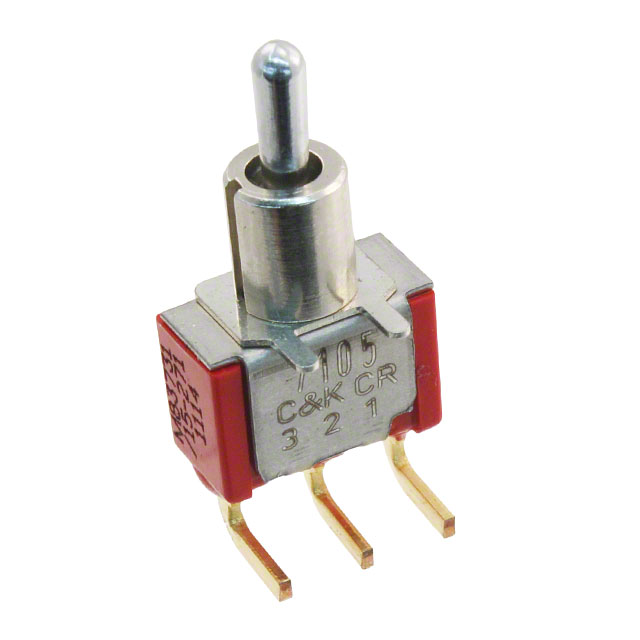

Littelfuse/Commercial Vehicle Products M83731/15-271	28 V	Unthreaded	Brass Chrome Plated	Mom-Off-Mom	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C		10000 Cycles	PC Pin	SPDT	6.9 mm	Through Hole Right Angle

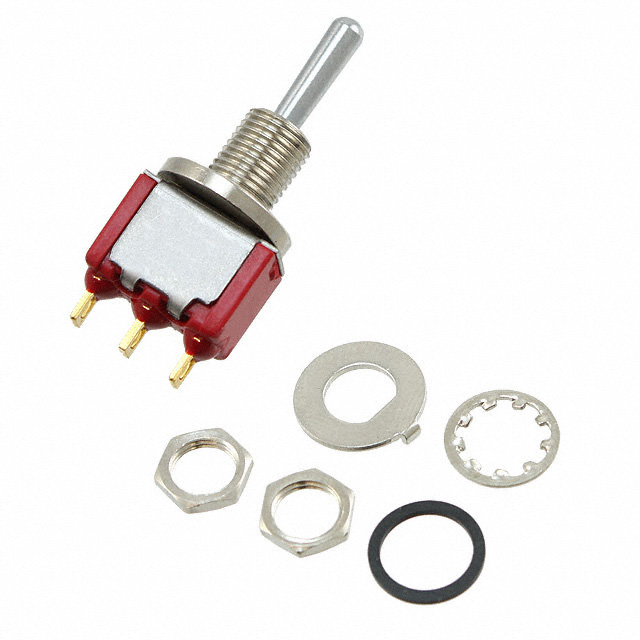

Littelfuse/Commercial Vehicle Products M837319271	28 V	1/4-40	Brass Chrome Plated	Mom-Off-Mom	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	Solder Lug	SPDT	10.41 mm
Littelfuse/Commercial Vehicle Products M83731/10-271	28 V	1/4-40	Brass Chrome Plated	Mom-Off-Mom	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	Solder Lug	DPDT	10.41 mm

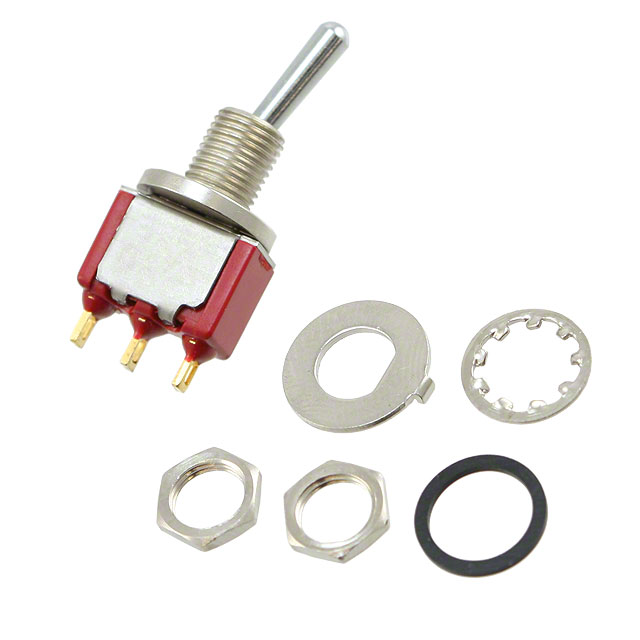

Littelfuse/Commercial Vehicle Products M83731/9-261	28 V	1/4-40	Brass Chrome Plated	On-Mom	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	Solder Lug	SPDT	10.41 mm
Littelfuse/Commercial Vehicle Products M83731/16-231	28 V	Unthreaded	Brass Chrome Plated	On-On	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C		10000 Cycles	PC Pin	DPDT	6.9 mm	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products M83731/10-262	28 V	1/4-40	Brass Chrome Plated	On-Mom	115 V	5 A	Epoxy Sealed Terminals	Non-Illuminated	Standard Round	-25 °C	71 °C	0.25 in	10000 Cycles	PC Pin	DPDT	10.41 mm

Catalog

Toggle Switches DPDT ON OFF MOM MIL TOGGLE MIL-S-83731 Toggle Switch

Key Features

• Qualified to MIL-S-83731

• 50 μ inch selective gold contact plating

• Epoxy sealed terminals for process compatibility

Description

C&K’s military series toggle switches are high-quality, resilient switches qualified to the MIL-S-83731 specification. The switches are made of flame-retardant housing material with 50 μ inch selective gold contact plating and epoxy sealed terminals for process compatibility. With a long lifecycle of 10,000 cycles, C&K’s military series switches successfully operate at both high and low temperatures, even in the harshest of environments.
