Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(24842)

...

Part	Category	Description
LITTELFUSE DRR-DTH-Q2167-2Obsolete	Switches	SWITCH REED CUSTOM
LITTELFUSE DRR-DTH-70-85Obsolete	Switches	SWITCH REED SPDT 350MA 350V
LITTELFUSE CR101J25S215QF	Switches	ROCKER SWITCHES
LITTELFUSE 104-0201-006	Switches	SWITCH PUSHBUTTON DPDT 6A 250V
LITTELFUSE 0HEV040.ZXPCBLObsolete	Circuit Protection	FUSE - HEV LC 425VDC 40A, PCB 3.9MM TERM/ BULK
LITTELFUSE 0324015.HObsolete	Circuit Protection	FUSE CERM 15A 250VAC 125VDC 3AB
LITTELFUSE NANOSMD200LR-2Obsolete	Circuit Protection	PTC RESET FUSE 6V 2A 1206
LITTELFUSE C115371-6651	Connectors Interconnects	LINEAR IC'S
LITTELFUSE SMCJ36CA-E	Circuit Protection	TVS 1.5KW 36V 5%BI DO-214AB TR13
LITTELFUSE C115370-5031	Connectors Interconnects	LINEAR IC'S

Series	Category	# Parts	Status	Description

SP1103C-01UTG30KV 3.3V 80A TVS Diod uDFN-2	Transient Voltage Suppressors (TVS)	1	Active	The SP1103C includes TVS diodes fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 80A of 8/20mssurge current (IEC61000-4-5, 2nd edition) with very low clamping voltages.
SP1105-01UTG	Transient Voltage Suppressors (TVS)	1	Obsolete
SP1105S-01UTG	Circuit Protection	1	Active
SP1112-01UTG	TVS Diodes	1	Active
SP1115-01UTG	Transient Voltage Suppressors (TVS)	1	Active
SP1124-01UTG	Transient Voltage Suppressors (TVS)	1	Active
SP1124T-01UTG30KV 24V 20A TVS Diod thin uDFN-2	Transient Voltage Suppressors (TVS)	1	Obsolete	This series is not recommended for new designs. Suggests to use SP1124-01UTG for the new designs in near future. This TVS diode is fabricated in a proprietary silicon avalanche technology and is used for high level protection of electronic equipment that may experience destructive electrostatic discharges (ESD). These robust TVS diodes can safely absorb repetitive ESD strikes at ±30kV (contact and air discharge, IEC 61000-4-2) without performance degradation. Additionally, SP1124T offers up to 20A 8/20 surge rating with low clamping voltages.
SP12-01WTG-C-HV12V 100W Bidirectional TVS Diode	Transient Voltage Suppressors (TVS)	1	Active	The SPxx-01WTG-C-HV is designed to improve ESD protection in portable applications, LED backlighting modules, and low speed I/Os. It will protect sensitive equipment from damage due to electrostatic discharge (ESD) and other overvoltage transients. The SPxx-01WTG-C-HV can safely absorb repetitive ESD strikes above the maximum level of the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely dissipate up to 8A (SP12-01WTG-C-HV) of induced surge current (IEC61000-4-5, tP=8/20μs) with very low clamping voltages.
SP1212-01ETG1Ch 5V 30KV 12A Unidirectional TVS Diode	Transient Voltage Suppressors (TVS)	1	Obsolete	Avalanche breakdown diodes fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 12A of 8/20μs surge current (IEC 61000-4-5 2nd edition).

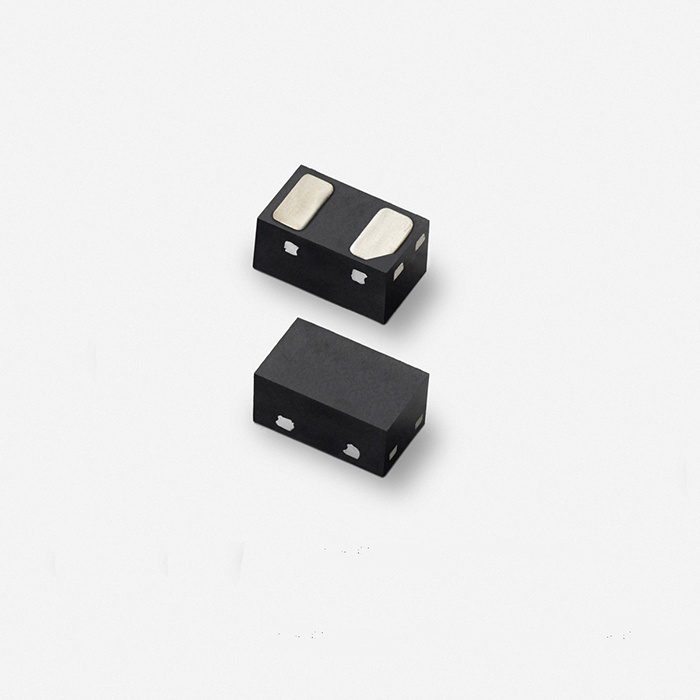

SP1220-01ETG1Ch 5V 30KV 20A Unidirectional TVS Diode	Circuit Protection	1	Obsolete	The SP1220 unidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1220 TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, each TVS can safely dissipate a 20A 8/20 surge event as defined in IEC 61000-4-5 2nd Edition.
