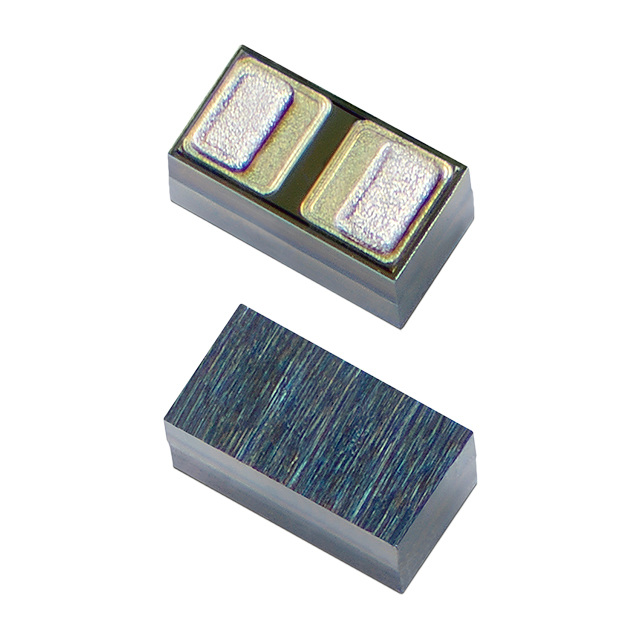

SP12-01WTG-C-HV Series

12V 100W Bidirectional TVS Diode

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

12V 100W Bidirectional TVS Diode

Part	Supplier Device Package	Package / Case	Applications	Type	Power Line Protection	Voltage - Breakdown (Min) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Bidirectional Channels [custom]
Littelfuse/Commercial Vehicle Products SP12-01WTG-C-HV	2-FlipChip	2-XFDFN FCDFN	General Purpose	Zener		13.3 V	Surface Mount	-40 °C	125 ¯C	19 V	12 V	26 pF	8 A	100 W	1

Catalog

12V 100W Bidirectional TVS Diode

Key Features

• ESD, IEC61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC61000-4-4, 40A (5/50ns)

• Lightning, IEC61000-4-5 2nd edition, 8A (tP=8/20μs, SP12-01WTG-C-HV)

• Low clamping voltage

• Low leakage current

• Lead-free, halogen-free, and RoHS compliant

Description

The SPxx-01WTG-C-HV is designed to improve ESD protection in portable applications, LED backlighting modules, and low speed I/Os. It will protect sensitive equipment from damage due to electrostatic discharge (ESD) and other overvoltage transients. The SPxx-01WTG-C-HV can safely absorb repetitive ESD strikes above the maximum level of the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely dissipate up to 8A (SP12-01WTG-C-HV) of induced surge current (IEC61000-4-5, tP=8/20μs) with very low clamping voltages.
