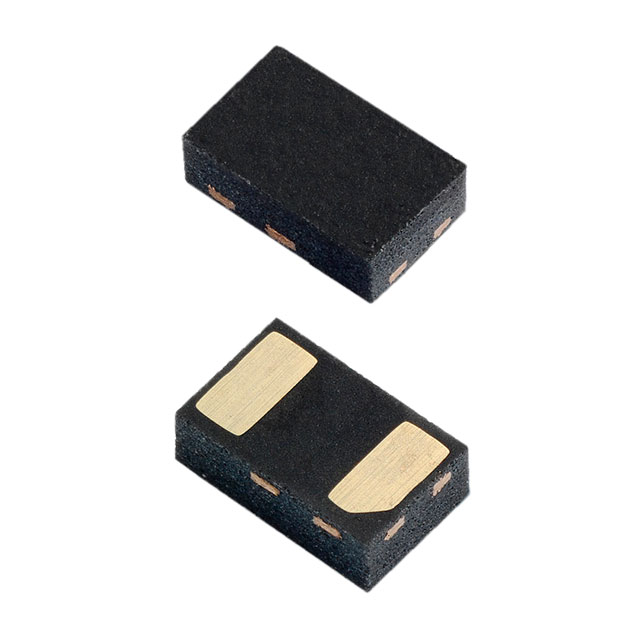

SP1105-01UTG Series

Catalog

TVS DIODE 5VWM 10.9VC 2DFN

Part	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Power Line Protection	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Package / Case	Type	Capacitance @ Frequency	Applications
Littelfuse/Commercial Vehicle Products SP1105-01UTG	5 V	10.9 V	Surface Mount	-40 °C	125 °C	1		70 A	2-DFN (1.6x1)	0603 (1610 Metric)	Zener	630 pF	General Purpose

• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC 61000-4-4, 40A (5/50ns)

• Lightning, IEC 61000-4-5 2ndedition, 80A (tP=8/20μs, SP1105S)

• Low clamping voltage

• Low leakage current

• Moisture Sensitivity Level (MSL-1)

• Lead free and RoHS compliant

• AEC-Q101 qualified
