Product families from fastSiC
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from fastSiC that are not part of a series
| Part Information | Pricing (lowest) | Reverse Recovery Time (trr) | Voltage - DC Reverse (Vr) (Max) | Package / Case | Current - Reverse Leakage | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Package Name | Technology | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) | Mounting Type | Capacitance | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Current - Continuous Drain (Id) (Tc) | Gate Charge (Max) | FET Type | Power Dissipation (Max) | Vgs (Max) | Rds On (Max) | Drive Voltage (Min Rds On) | Drive Voltage (Max Rds On) | Vgs (Max) Positive | Vgs (Max) Negative | Package Leads | Vgs(th) (Max) | Grade | Qualification | Current - Continuous Drain (Id) | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

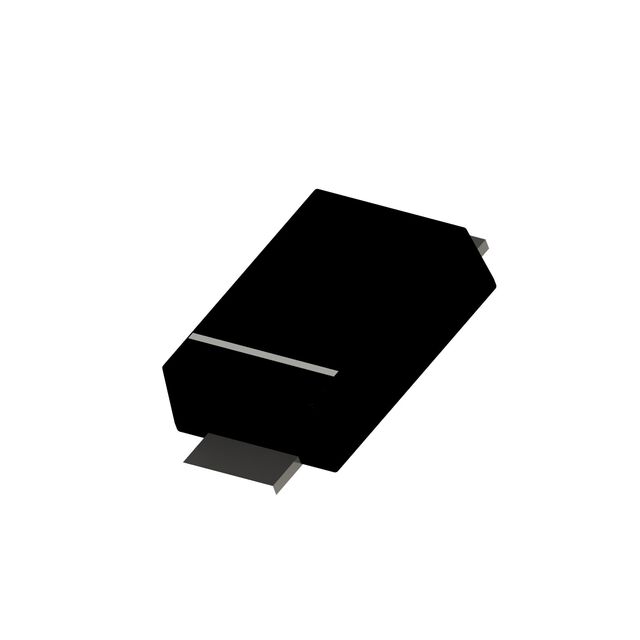

 fastSiC DIODE SIL CARB 650V 4A SMAF | Sign in to see pricing | 0 ns | 650 V | DO-221AC, SMA Flat Leads | 0.5 µA | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA, 500 mA | DO-221AC (SlimSMA) | SiC (Silicon Carbide) Schottky | 4 A | 1.85 V | Surface Mount | 10 pF | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

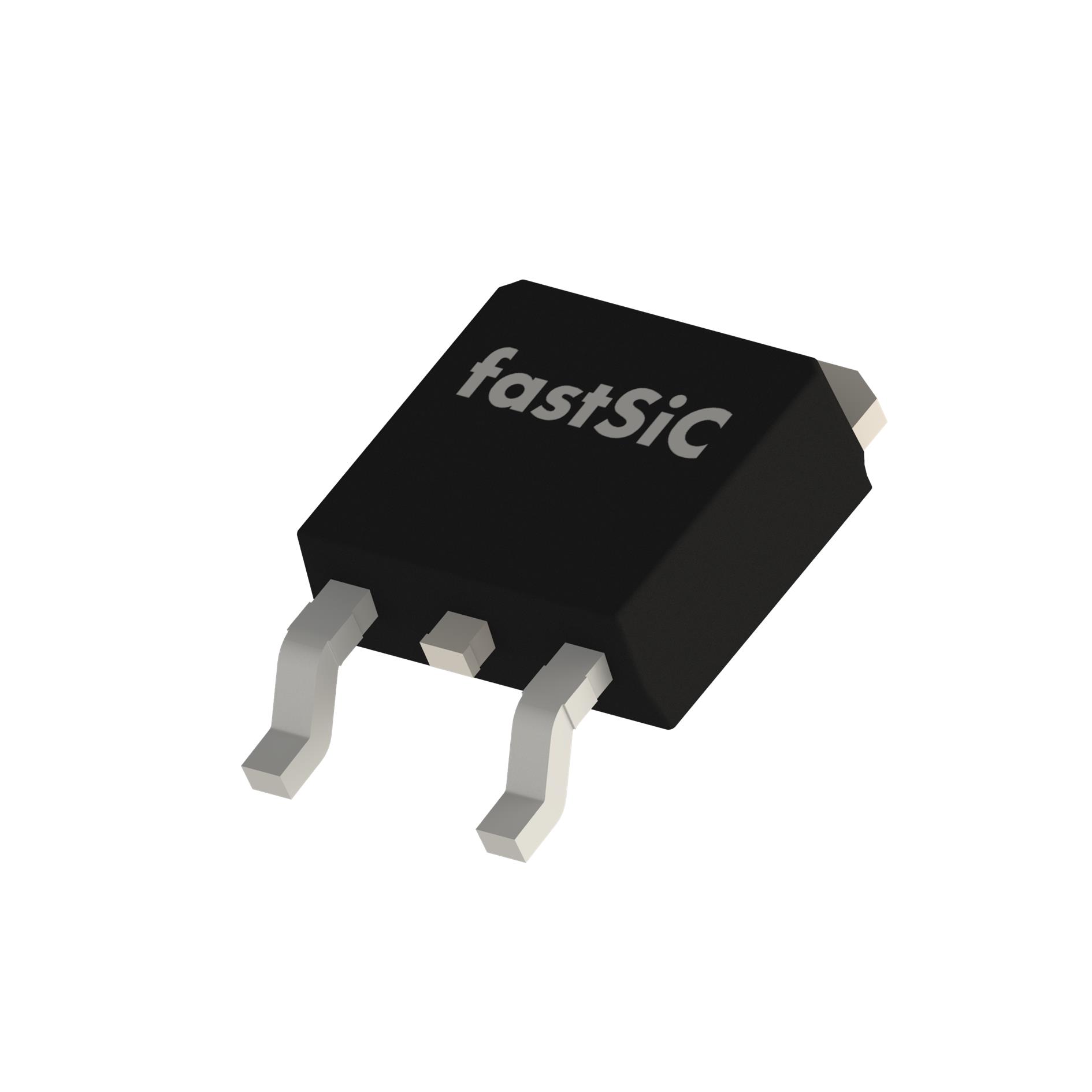

 fastSiC DIODE SIL CARB 1200V 8.8A TO252 | Sign in to see pricing | 0 ns | 1200 V | DPAK (2 Leads + Tab), SC-63, TO-252-2, TO-252-3 | 5 µA | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA, 500 mA | TO-252, TO-252 (DPAK) | SiC (Silicon Carbide) Schottky | 2 A, 8.8 A | 1.55 V | Surface Mount | 11 pF | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 fastSiC DIODE SIC 1.2KV 3.6A DO221AC | Sign in to see pricing | 0 ns | 1200 V | DO-221AC, SMA Flat Leads | 5 µA | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA, 500 mA | DO-221AC (SlimSMA) | SiC (Silicon Carbide) Schottky | 2 A, 3.6 A | 1.55 V | Surface Mount | 11 pF | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

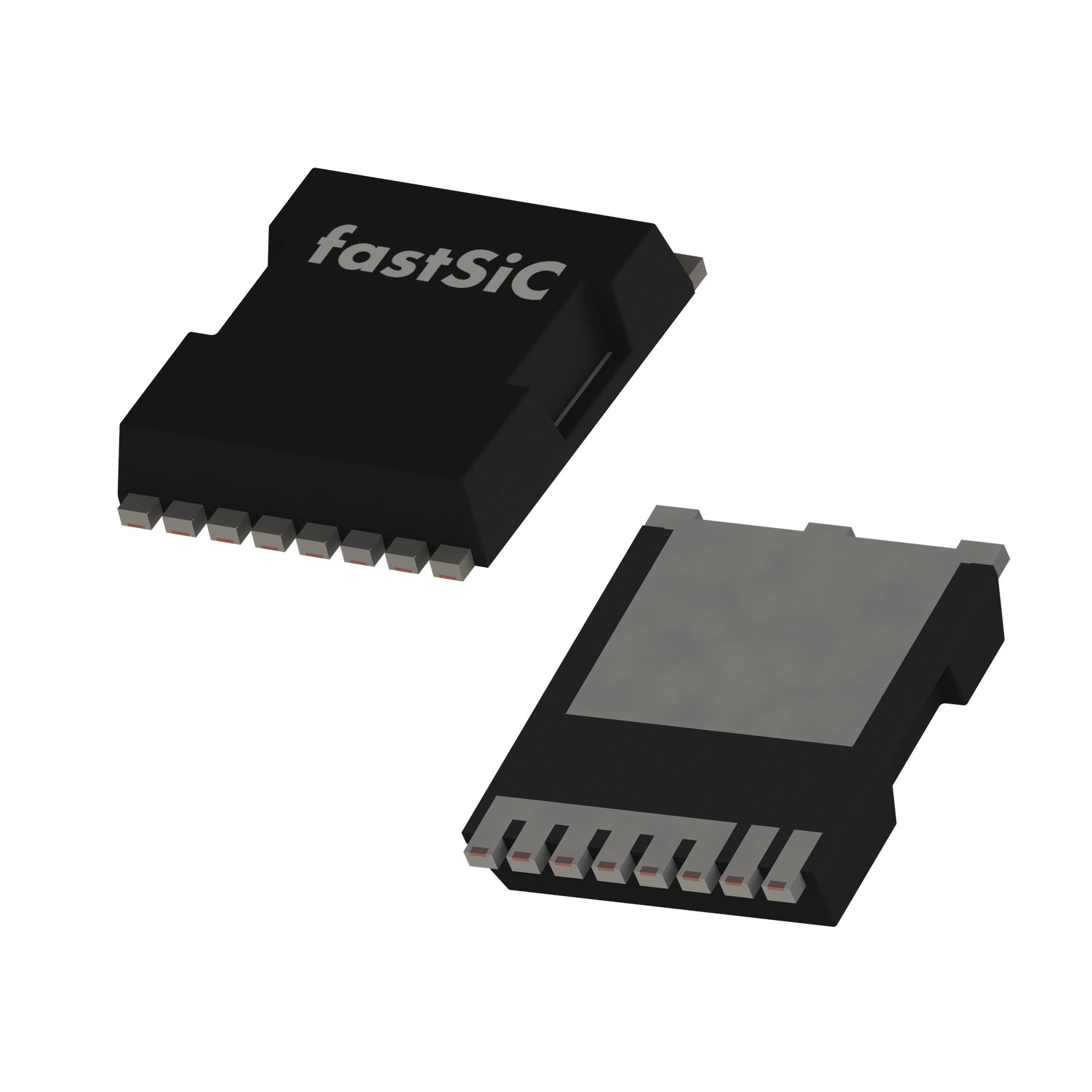

 fastSiC SICFET N-CH 650V 140A TOLL | Sign in to see pricing | — | — | 8-PowerSFN | — | — | — | — | — | — | Toll | SiC (Silicon Carbide Junction Transistor) | — | — | Surface Mount | — | 650 V | 18 V | 7390 pF | -55 °C | 175 °C | 140 A | 315 nC | N-Channel | 375 W | 18 V | — | — | — | — | — | — | — | — | — | — | — | — |

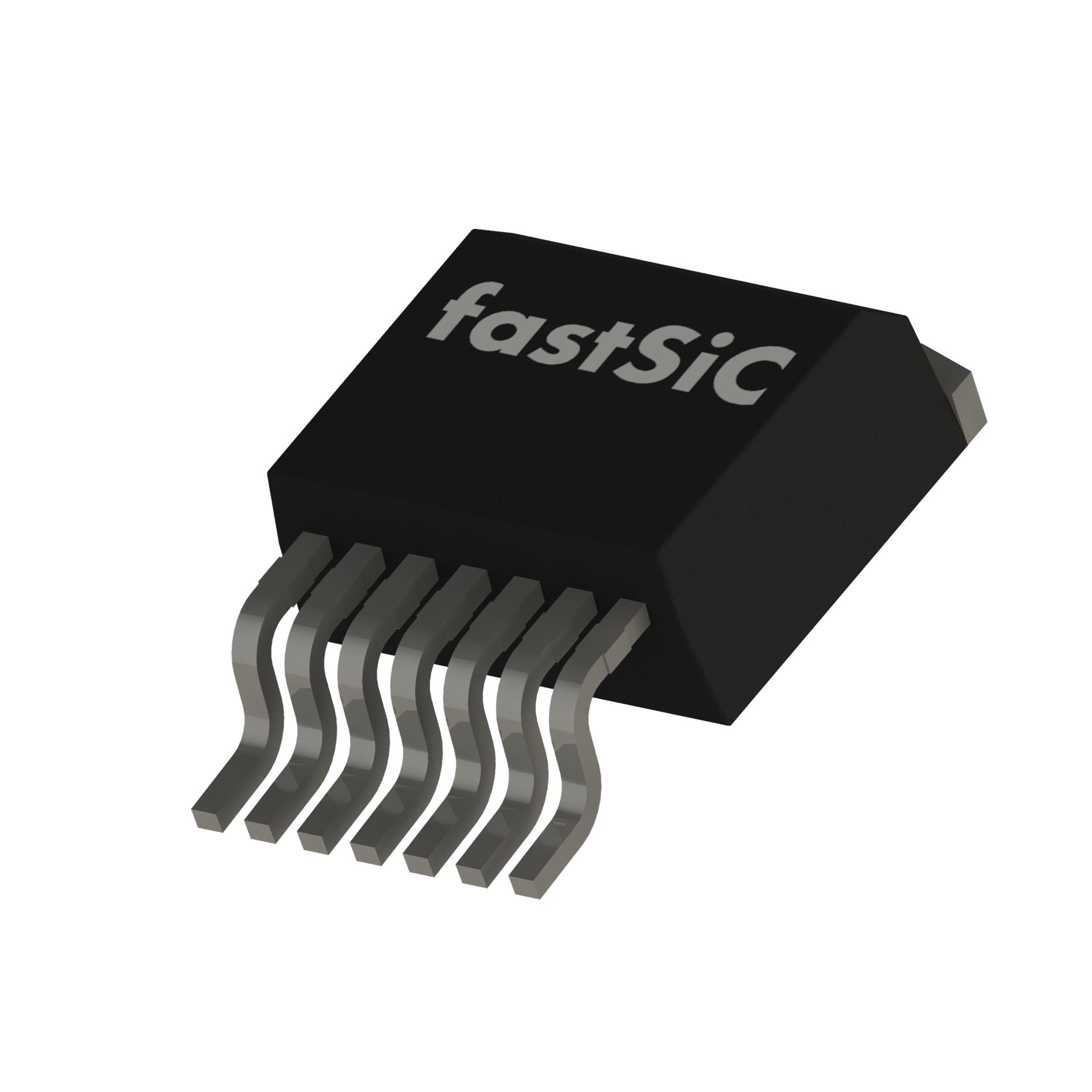

 fastSiC SICFET N-CH 650V 62A TO-263-7L | Sign in to see pricing | — | — | — | — | — | — | — | — | — | D2PAK, TO-263-7L | SiC (Silicon Carbide Junction Transistor) | — | — | Surface Mount | — | 650 V | — | 3015 pF | -55 °C | 175 °C | 62 A | 125 nC | N-Channel | 187 W | — | 45 mOhm | 18 V | 15 V | 18 V | -8 V | 7 Leads | 2.5 V | — | — | — | — | — |
 fastSiC SICFET N-CH 650V 43A TO-247-3L | Sign in to see pricing | — | — | TO-247-3 | — | — | — | — | — | — | TO-247-3L | SiCFET (Silicon Carbide) | — | — | Through Hole | — | 650 V | 18 V | 1499 pF | -55 °C | 175 °C | 43 A | 69 nC | N-Channel | 202 W | — | 80 mOhm | — | — | 18 V | -8 V | — | 2.5 V | Automotive | AEC-Q101 | — | — | — |
 fastSiC SICFET N-CH 650V 23.5A TOLL | Sign in to see pricing | — | — | 8-PowerSFN | — | — | — | — | — | — | Toll | SiC (Silicon Carbide Junction Transistor) | — | — | Surface Mount | — | 650 V | 18 V | 1000 pF, 1000 pF | -55 °C | 175 °C | 23.5 A | 43 nC | N-Channel | 115 W | 18 V | — | — | — | — | — | — | 2.5 V | — | — | 23.5 A | — | — |

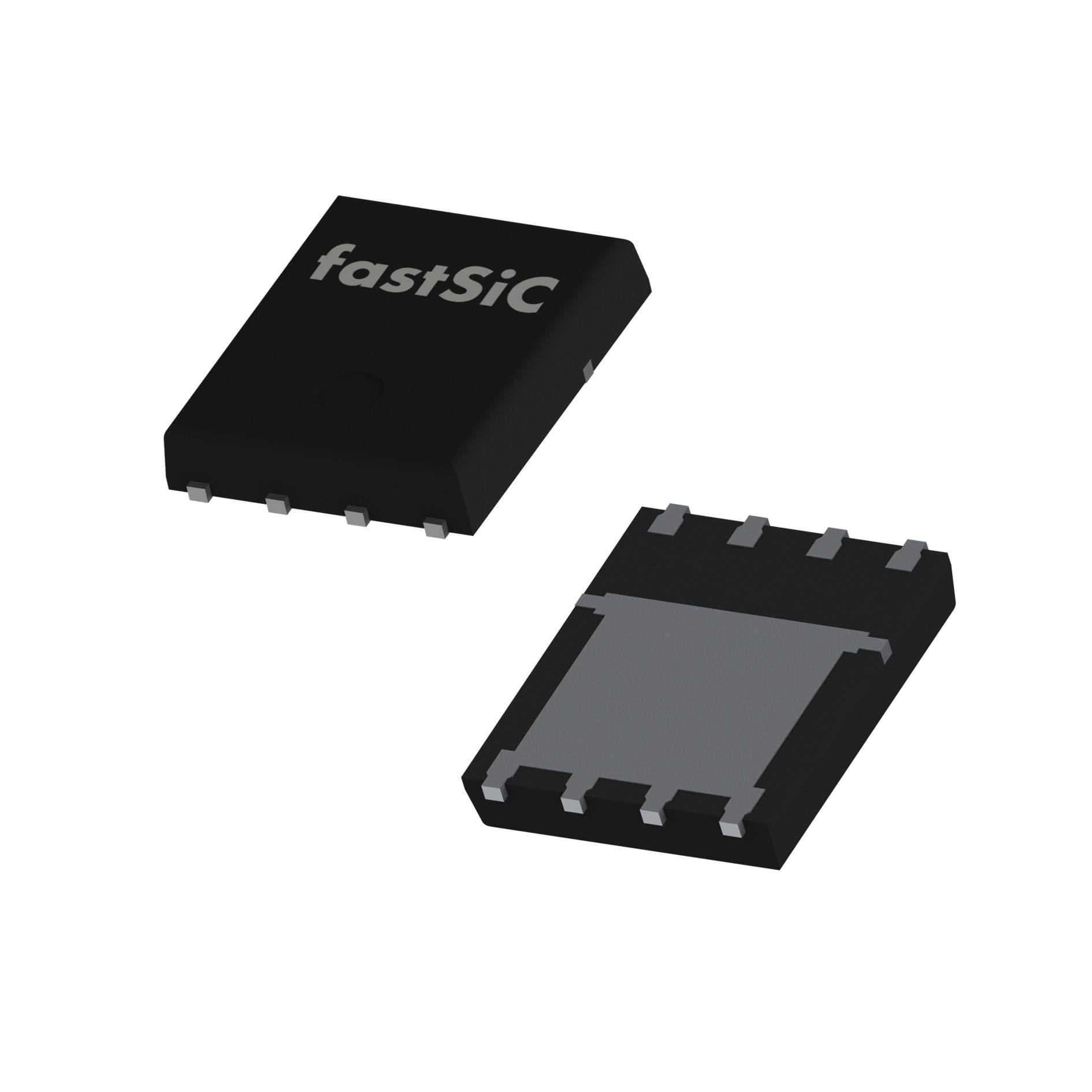

 fastSiC SICFET N-CH 650V 8.6A PQFN5X6 | Sign in to see pricing | — | — | 9-PowerTDFN | — | — | — | — | — | — | 8-PQFN, Power56 | SiC (Silicon Carbide Junction Transistor) | — | — | Surface Mount | — | 650 V | — | 318 pF | -55 °C | 175 °C | 8.6 A | 14.5 nC | N-Channel | 41 W | — | 420 mOhm | 18 V | 15 V | 18 V | -8 V | — | 1.6 V | — | — | — | 5 mm | 6 mm |
 fastSiC SICFET N-CH 750V 136A TO-247-4L | Sign in to see pricing | — | — | TO-247-4 | — | — | — | — | — | — | TO-247-4L | SiCFET (Silicon Carbide) | — | — | Through Hole | — | 750 V | 18 V | 7252 pF | -55 °C | 175 °C | 136 A | 329 nC | N-Channel | 555 W | — | 20 mOhm | — | — | 18 V | -8 V | — | 2.5 V | — | — | — | — | — |
fastSiC DIODE SIL CARB 650V 6.2A DO221AC | Sign in to see pricing | 0 ns | 650 V | DO-221AC, SMA Flat Leads | 35 µA | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA, 500 mA | DO-221AC (SlimSMA) | SiC (Silicon Carbide) Schottky | 4 A, 6.2 A | 1.55 V | Surface Mount | 16 pF | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
