AZ Displays

Series

Product families from AZ Displays

Series	Category	Parts	Status	Description

Standalone parts

Parts that are not part of a series

Series	Category	Parts	Status	Description
ATM0128	Optoelectronics	1	Active
ATM0200	Optoelectronics	1	Active
ATM0240	LCD, OLED, Graphic	1	Active
ATM0350	LCD, OLED, Graphic	3	Active
ATM0430	Optoelectronics	9	Active
ATM0499	LCD, OLED, Graphic	1	Active
ATM0500	Optoelectronics	9	Active
ATM0680	LCD, OLED, Graphic	3	Active
ATM0700	Optoelectronics	13	Active
ATM0800	Optoelectronics	1	Active

Standalone parts(101)

Parts from AZ Displays that are not part of a series

Part Information	Pricing (lowest)	Display Type	Dot Size Width	Dot Size Height	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Display Mode	Character Width	Character Height	Outline Height	Outline Width	Outline Length	Operating Temperature (Max)	Operating Temperature (Min)	Display Columns	Display Rows	Controller Type	Backlight	Viewing Area Length	Viewing Area Width	Character Width (Dots)	Character Height (Dots)	Number of Characters	Backlight Color	Backlight Type
ACM0802C-FL-GBS AZ Displays 8X2 CHARACTER LCD TRANSFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.56 mm	0.66 mm	5.5 V	2.7 V	Transflective	2.96 mm	5.94 mm	12.8 mm	32 mm	58 mm	70 °C	-20 °C	8	2	KS0066	LED	38 mm	26 mm	5 Dots	8 Dots	—	—	—

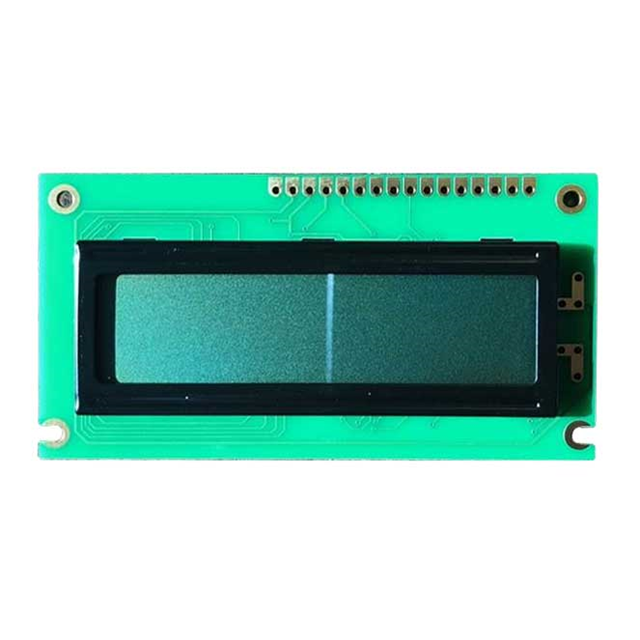

ACM0802C-FL-YBH AZ Displays 8X2 CHARACTER LCD TRANSFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.56 mm	0.66 mm	5.5 V	2.7 V	Transflective	2.96 mm	5.94 mm	12.8 mm	32 mm	58 mm	70 °C	-20 °C	8	2	KS0066	LED	38 mm	26 mm	5 Dots	8 Dots	—	—	—
ACM0802C-FL-YBW AZ Displays 8X2 CHARACTER LCD TRANSFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.56 mm	0.66 mm	5.5 V	2.7 V	Transflective	2.96 mm	5.94 mm	12.8 mm	32 mm	58 mm	70 °C	-20 °C	8	2	KS0066	LED	38 mm	26 mm	5 Dots	8 Dots	—	—	—
ACM1601C-RN-GBH-G AZ Displays 16X1 CHARACTER LCD REFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic	0.55 mm	0.75 mm	5.5 V	2.7 V	Reflective	3.07 mm	6.56 mm	9.5 mm	36 mm	80 mm	70 °C	-20 °C	16	1	ST7066U	Without Backlight	64.5 mm	14 mm	5 Dots	8 Dots	16 characters	—	—

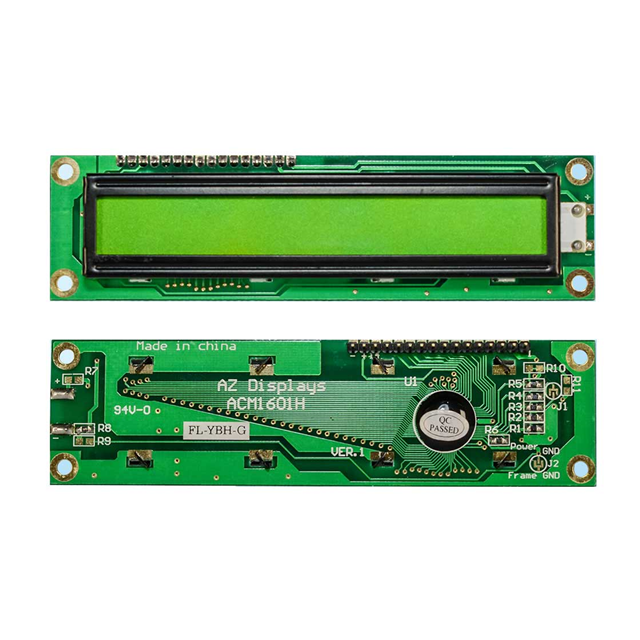

ACM1601H-FL-YBW AZ Displays 16X1 CHARACTER LCD TRANSFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.92 mm	1.1 mm	5.5 V	2.7 V	Transflective	4.84 mm	9.22 mm	14.5 mm	33 mm	122 mm	70 °C	-20 °C	16	1	KS0066	LED	99 mm	13 mm	5 Dots	8 Dots	—	—	—

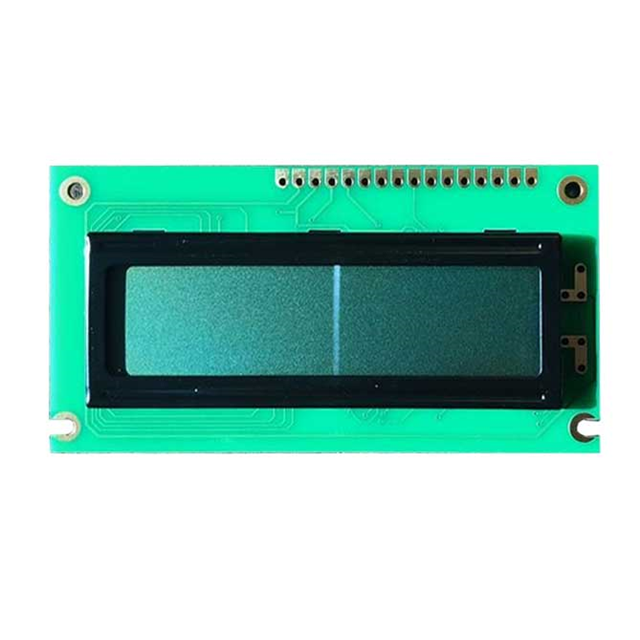

ACM1602B-FL-GBS-GN AZ Displays 16X2 CHARACTER LCD REFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic	0.56 mm	0.61 mm	5.25 V	4.75 V	Transflective	3 mm	5.23 mm	13.5 mm	44 mm	84 mm	70 °C	-20 °C	16	2	KS0066	—	64.5 mm	16 mm	5 Dots	8 Dots	32 characters	Green	LED
ACM1602B-FL-YBW-AK AZ Displays DISPLAY LCD CHARACTER 16X2 TRANS	Sign in to see pricing Log in Sign up free	—	0.56 mm	0.61 mm	5.5 V	2.7 V	—	3 mm	5.23 mm	13.5 mm	44 mm	84 mm	—	—	16	2	KS0066	LED	64.5 mm	16.4 mm	5 Dots	8 Dots	32 characters	—	—
ACM1602B-RN-GBS AZ Displays 16X2 CHARACTER LCD REFLECTIVE	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.56 mm	0.61 mm	5.25 V	4.75 V	Reflective	3 mm	5.23 mm	9.5 mm	44 mm	84 mm	70 °C	-20 °C	16	2	KS0066	LED	64.5 mm	16.4 mm	5 Dots	8 Dots	—	—	—
ACM1602FD-FL-YBW-Q03 AZ Displays DISPLAY LCD CHARACTER 16X2 TRANS	Sign in to see pricing Log in Sign up free	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
ACM1602K-FL-GTW AZ Displays 16 X 2 CHARACTER MONOCHROME	Sign in to see pricing Log in Sign up free	STN - Super-Twisted Nematic, TN - Twisted Nematic	0.56 mm	0.61 mm	5.25 V	4.75 V	Reflective, Transflective, Transmissive	3 mm	5.23 mm	13.5 mm	36 mm	80 mm	70 °C	-20 °C	16	2	SPLC780D1	LED	64.5 mm	16.4 mm	5 Dots	8 Dots	32 characters	—	—

1–10 of 101

Page 1 of 11
