ATM0350 Series

Catalog

3.5" TFT LCD 320 X 240

Part	Dot Size Height	Dot Size Width	Dot Pitch Width	Dot Pitch Height	Display Type	Background Color	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Viewing Area Height	Viewing Area Width	Graphics Color	Diagonal Screen Size	Interface Data Width	Interface	Display Mode	Backlight	Controller Type

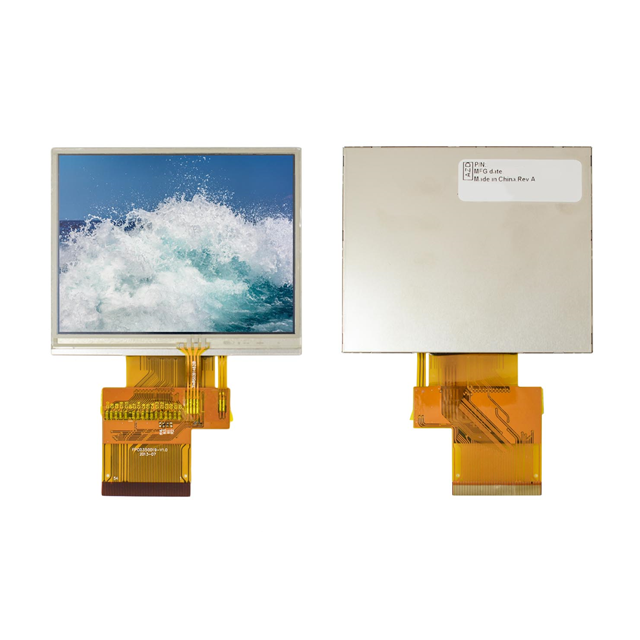

AZ Displays ATM0350D19A-1	0.22 mm	0.22 mm	0.07 mm	0.22 mm	TFT - Color	White	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	3.5 in	24 Bit	Parallel	Transmissive	LED
AZ Displays ATM0350B47B			0.07 mm	0.22 mm	TFT - Color TN - Twisted Nematic	White	240 pixels	320 pixels	55.7 mm	73.2 mm	Blue Green Red	3.5 in		MCU RGB	Transmissive	LED	SSD2119AM1

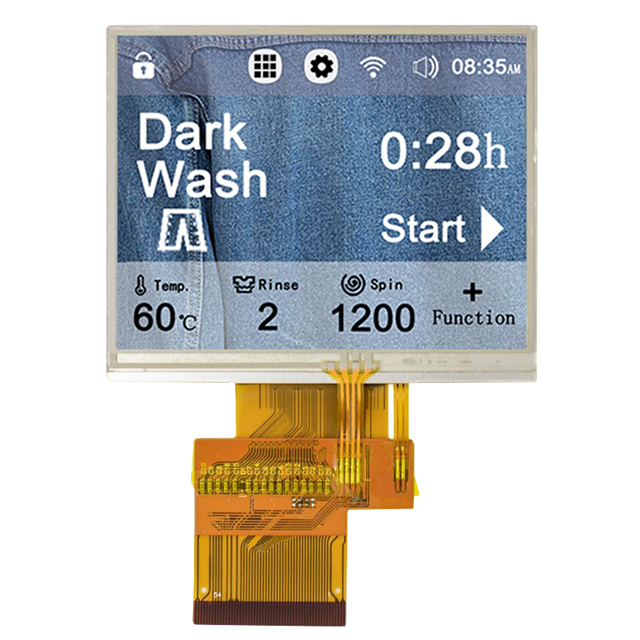

AZ Displays ATM0350D17	0.22 mm	0.22 mm	0.07 mm	0.22 mm	IPS (In-Plane Switching) TFT - Color	White	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	3.5 in	24 Bit	Parallel	Transmissive	LED
