ATM0430 Series

Catalog

4.3" IPS LCD 800 X 480 W / PCAP

Part	Dot Pitch [z]	Dot Pitch [y]	Dot Size [z]	Dot Size [y]	Graphics Color	Background Color	Backlight	Touchscreen	Viewing Area [x]	Viewing Area [y]	Diagonal Screen Size	Diagonal Screen Size	Interface	Display Mode	Dot Pixels [x]	Dot Pixels [y]	Display Type	Dot Pitch [x]	Dot Size [x]	Controller Type
AZ Displays ATM0430D44-CT	0.11 mm	0.04 mm	0.11 mm	0.12 mm	Blue Green Red	White	LED	Capacitive	95.04 mm	53.86 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	800 pixels	480	IPS (In-Plane Switching) TFT - Color

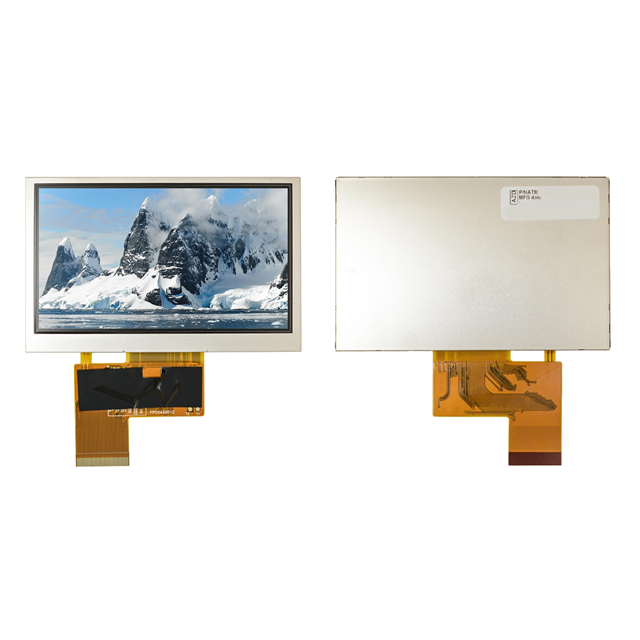

AZ Displays ATM0430D12		0.2 mm			Blue Green Red	White	LED		95.04 mm	53.56 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	480	272	TFT - Color	0.07 mm
AZ Displays ATM0430D12B-CTN		0.2 mm			Blue Green Red	White	LED		96.24 mm	55.06 mm	4.3 in	109.22 mm	24-Bit (RGB)	Transmissive	480	272	TFT - Color	0.07 mm

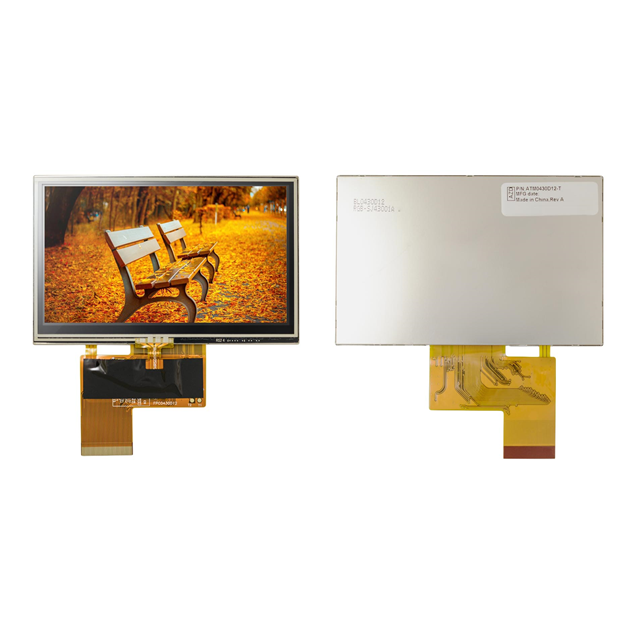

AZ Displays ATM0430D12M-T		0.2 mm		0.2 mm	Blue Green Red		LED		95.04 mm	53.86 mm	4.3 in	109.22 mm	24-Bit (RGB)	Transmissive	480	272	TFT - Color	0.07 mm	0.2 mm

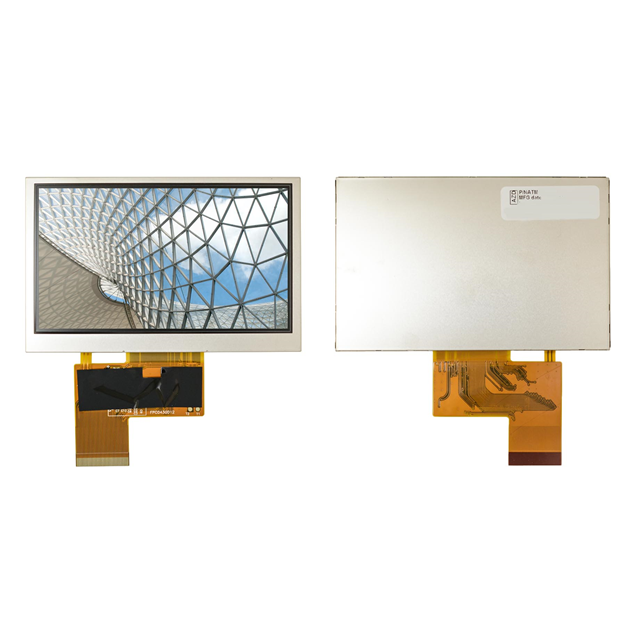

AZ Displays ATM0430D19A		0.2 mm		0.2 mm	Blue Green Red	White	LED		95.04 mm	53.86 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	480	272	TFT - Color	0.07 mm	0.2 mm

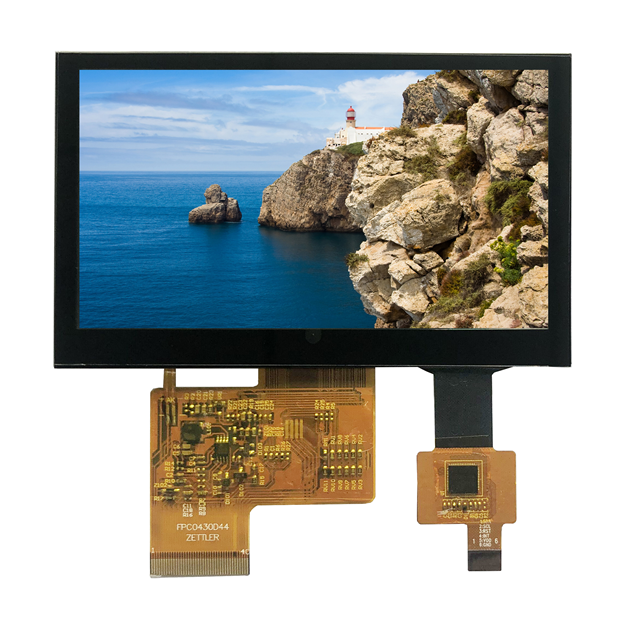

AZ Displays ATM0430D44-T	0.11 mm	0.04 mm	0.11 mm	0.12 mm	Blue Green Red	White	LED	Resistive	95.04 mm	53.86 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	800 pixels	480	IPS (In-Plane Switching) TFT - Color

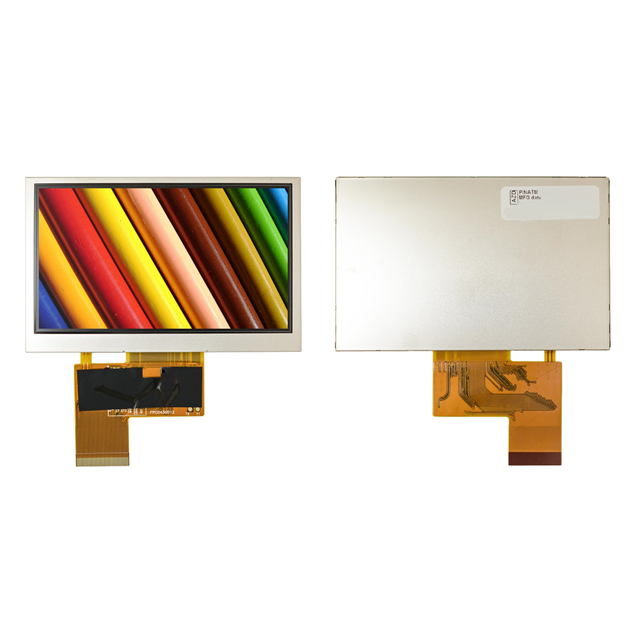

AZ Displays ATM0430D12B		0.2 mm			Blue Green Red	White	LED		95.04 mm	53.86 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	480	272	TFT - Color	0.07 mm

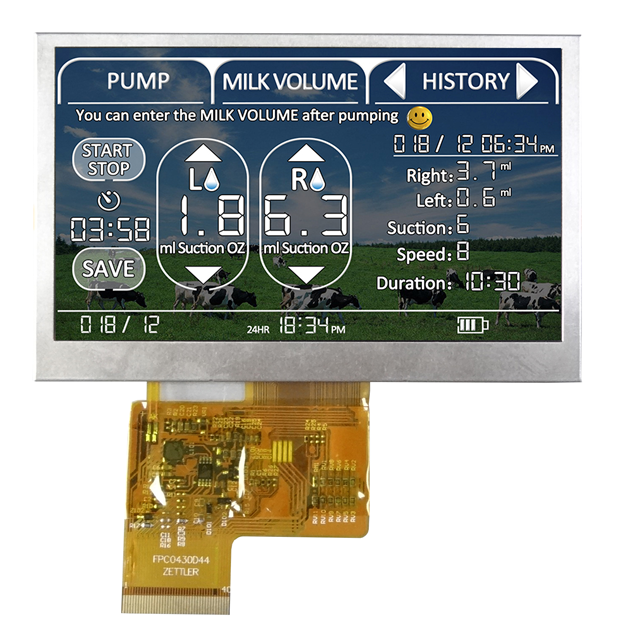

AZ Displays ATM0430D44	0.11 mm	0.04 mm	0.11 mm	0.12 mm	Blue Green Red	White	LED		95.04 mm	53.86 mm	4.3 in	109.22 mm	Parallel 24-Bit (RGB)	Transmissive	800 pixels	480	IPS (In-Plane Switching) TFT - Color

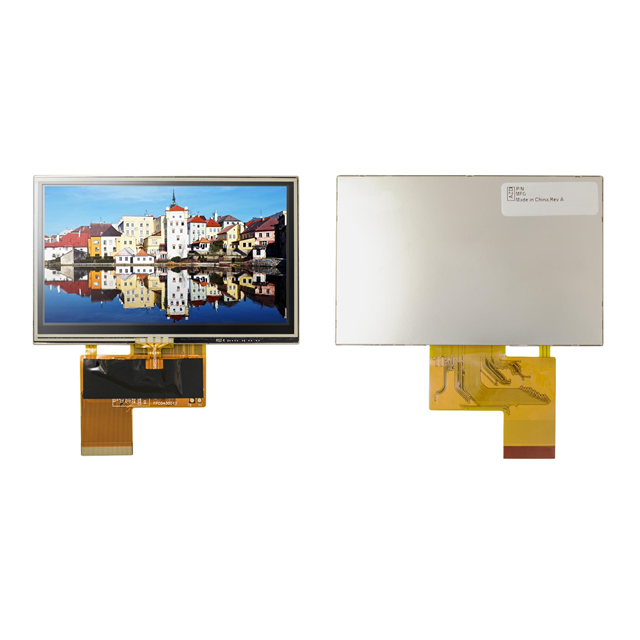

AZ Displays ATM0430D56-T		0.2 mm		0.2 mm	Blue Green Red		LED	Resistive	95.04 mm	53.86 mm	4.3 in	109.22 mm		Transmissive	480	272	TFT - Color	0.07 mm	0.2 mm	ILI6480
