ATM0500 Series

Catalog

5.0" HDMI 800 X 480 350 NITS IPS

Part	Dot Pitch [y]	Dot Pitch [x]	Display Type	Backlight	Display Mode	Background Color	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [x]	Dot Pixels [y]	Graphics Color	Viewing Area [x]	Viewing Area [y]	Interface	Touchscreen	Dot Size [y]	Dot Size [z]	Dot Size [x]
AZ Displays ATM0500H1-CT	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	Black	127 mm	5 in	800 pixels	480	Blue Green Red	108.8 mm	65.6 mm	24-Bit (RGB)	Capacitive

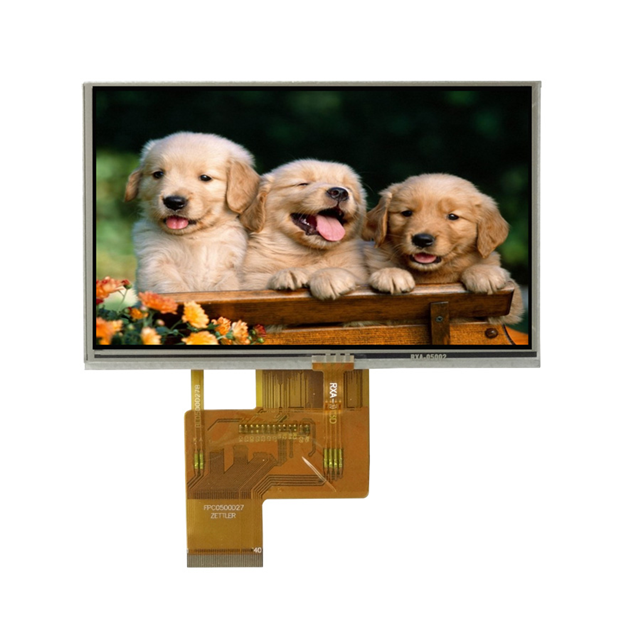

AZ Displays ATM0500D27B-T	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	White	127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)	Resistive	0.14 mm	0.14 mm

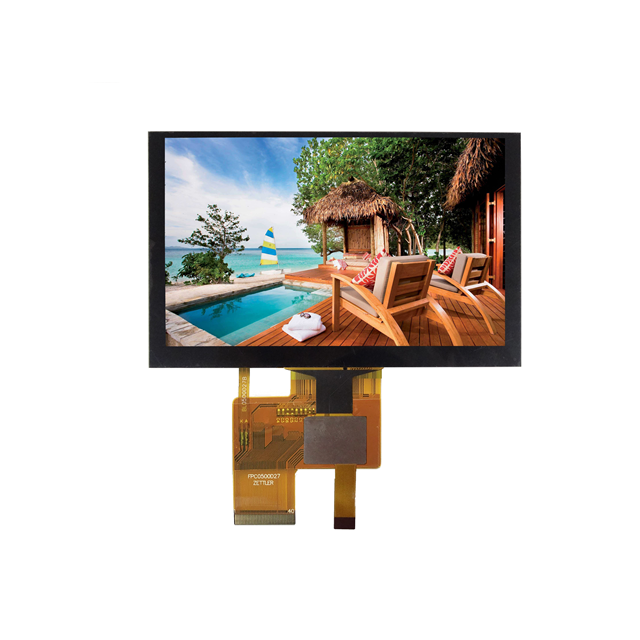

AZ Displays ATM0500D27-CT	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	White	127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)	Capacitive	0.14 mm	0.14 mm
AZ Displays ATM0500H1	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	Black	127 mm	5 in	800 pixels	480	Blue Green Red	110.6 mm	67.4 mm	24-Bit (RGB)
AZ Displays ATM0500D27K -T	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	White	127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)	Resistive	0.14 mm	0.14 mm
AZ Displays ATM0500D27K-CT	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	White	127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)	Capacitive	0.14 mm	0.14 mm

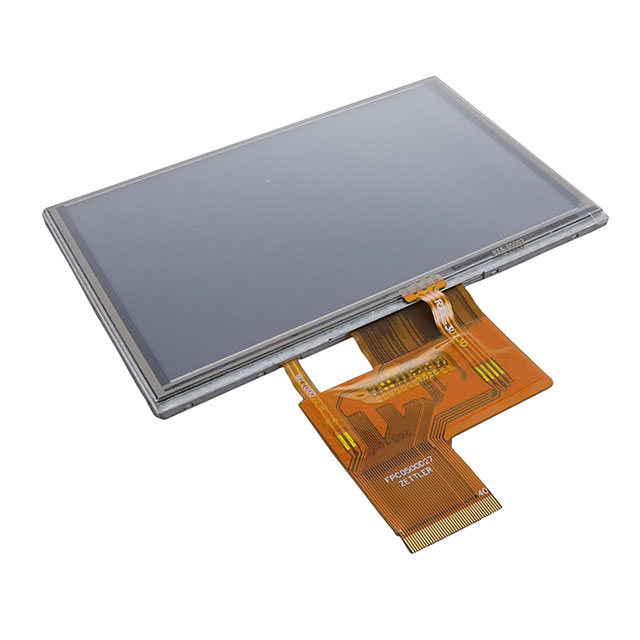

AZ Displays ATM0500D27K-T	0.14 mm	0.05 mm	TFT - Color	LED	Transmissive		127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)	Resistive	0.14 mm	0.14 mm
AZ Displays ATM0500M27K	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	Black	127 mm	5 in	800 pixels	480	Blue Green Red	110.6 mm	67.4 mm	MIPI
AZ Displays ATM0500D27K	0.14 mm	0.05 mm	IPS (In-Plane Switching) TFT - Color	LED	Transmissive	White	127 mm	5 in	800 pixels	480	Blue Green Red	108 mm	64.8 mm	Parallel 24-Bit (RGB)		0.14 mm		0.05 mm
