ATM0700 Series

Catalog

GRAPHIC DISPLAY TFT RGB 7"

Part	Dot Pitch [x]	Dot Pitch [y]	Dot Size [custom]	Dot Size [custom]	Interface	Viewing Area [z]	Viewing Area [y]	Backlight	Display Mode	Graphics Color	Touchscreen	Dot Pixels [x]	Dot Pixels [y]	Background Color	Display Type	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [x]	Controller Type	Dot Pitch [custom]	Dot Pitch [custom]	Dot Size [x]	Dot Size [y]

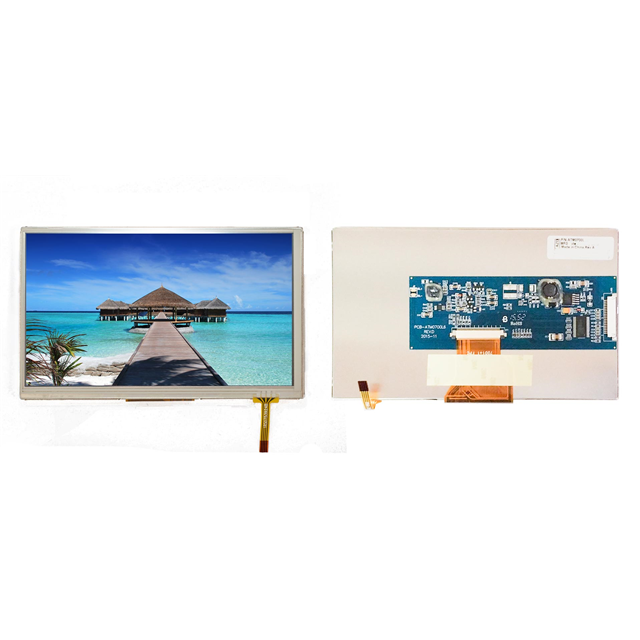

AZ Displays ATM0700L6J-T	0.06 mm	0.18 mm	0.18 mm	0.19 mm	LVDS	85.92 mm	154.08 mm	LED	Transmissive	Blue Green Red	Resistive	800 pixels	480	White	TFT - Color	7 "	177.8 mm
AZ Displays ATM0700D38B-CTN	0.06 mm	0.18 mm					87 mm	LED	Transmissive	Blue Green Red		800 pixels	480	White	TFT - Color	7 "	177.8 mm	154.6 mm

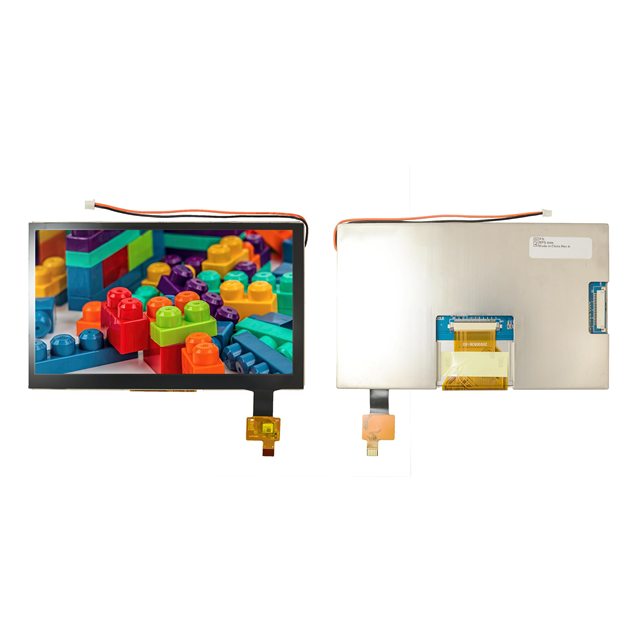

AZ Displays ATM0700L6E-CT	0.06 mm	0.18 mm	0.18 mm	0.19 mm	18-Bit (RGB) LVDS	85.92 mm	154.08 mm	LED	Transmissive	Blue Green Red		800 pixels	480		TFT - Color	7 "	177.8 mm		FT5316
AZ Displays ATM0700L74	0.06 mm	0.19 mm			LVDS		93.04 mm	LED	Transmissive	Blue Green Red		800 pixels	480	Black	IPS (In-Plane Switching) TFT - Color	7 "	177.8 mm	155 mm
AZ Displays ATM0700H1	0.06 mm	0.18 mm			24-Bit (RGB)		89.1 mm	LED	Transmissive	Blue Green Red		800 pixels	480	White	TFT - Color TN - Twisted Nematic	7 "	177.8 mm	156.7 mm

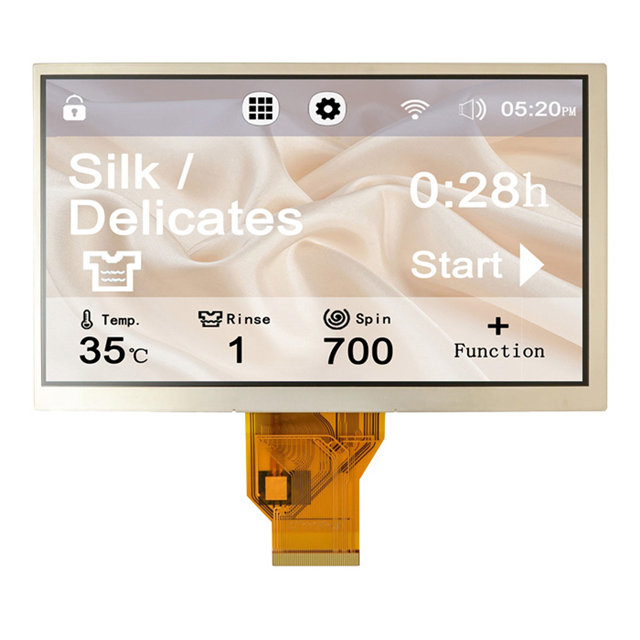

AZ Displays ATM0700L61					LVDS	85.92 mm	154.2 mm	LED	Transmissive	Blue Green Red		1024	600	White	IPS (In-Plane Switching) TFT - Color	7 "	177.8 mm			0.05 mm	0.15 mm	0.15 mm	0.15 mm

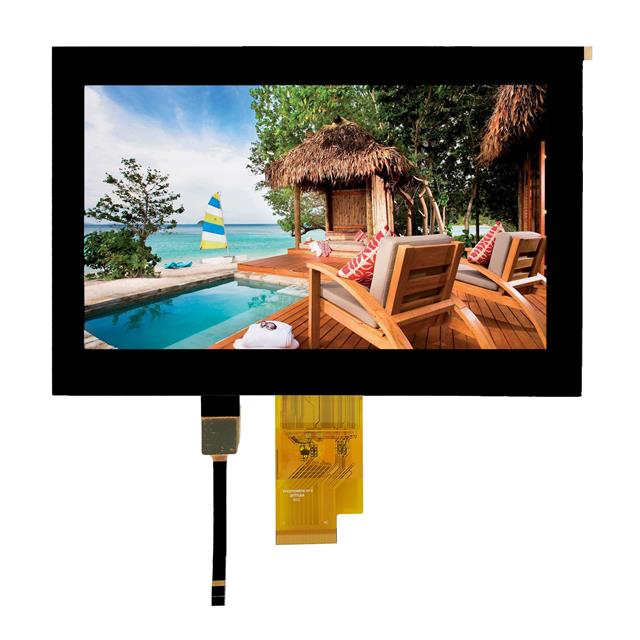

AZ Displays ATM0700M61K-CT	0.05 mm	0.14 mm			MIPI	86.92 mm	155.08 mm	LED	Transmissive	Blue Green Red	Capacitive	1024	600	Black	IPS (In-Plane Switching) TFT - Color	7 "	177.8 mm

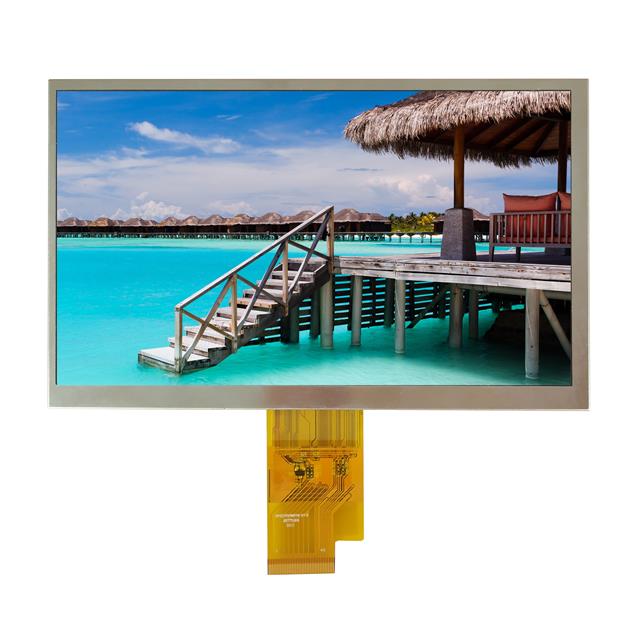

AZ Displays ATM0700M61K	0.05 mm	0.14 mm			MIPI	89.45 mm	156.68 mm	LED	Transmissive	Blue Green Red		1024	600	Black	IPS (In-Plane Switching) TFT - Color	7 "	177.8 mm

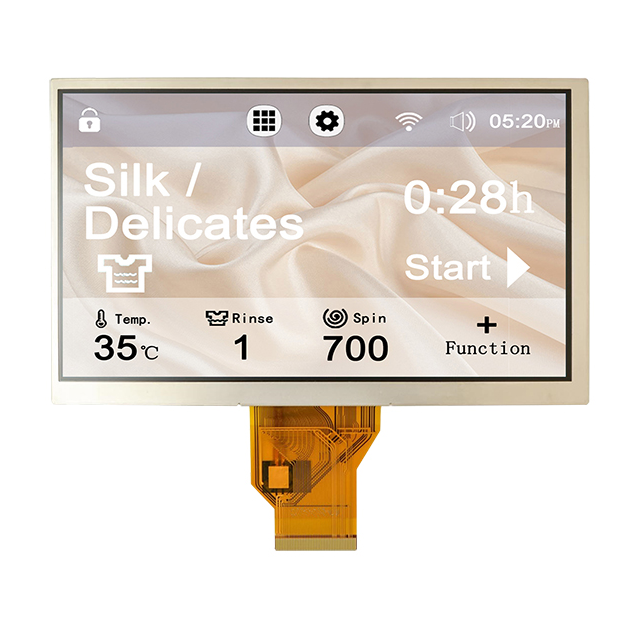

AZ Displays ATM0700L61K					LVDS	85.92 mm	154.08 mm	LED	Transmissive	Blue Green Red		1024	600	White	IPS (In-Plane Switching) TFT - Color	7 "	177.8 mm			0.05 mm	0.15 mm	0.12 mm	0.15 mm

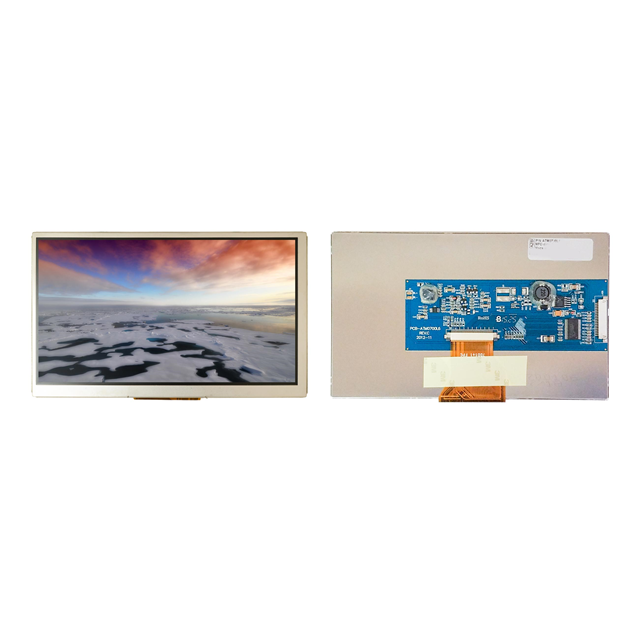

AZ Displays ATM0700L6J	0.06 mm	0.18 mm	0.18 mm	0.19 mm	LVDS	85.92 mm	154.08 mm	LED	Transmissive	Blue Green Red		800 pixels	480	White	TFT - Color	7 "	177.8 mm
